Eigen::InnerIterator< XprType > Class Template Reference

An InnerIterator allows to loop over the element of any matrix expression. More...

#include <CoreIterators.h>

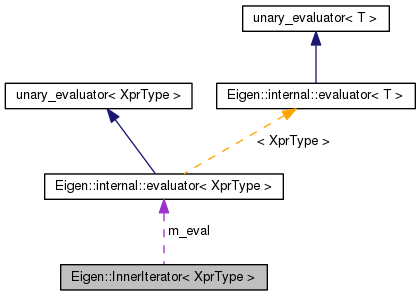

Collaboration diagram for Eigen::InnerIterator< XprType >:

List of all members.

Public Member Functions
	InnerIterator (const XprType &xpr, const Index &outerId)
EIGEN_STRONG_INLINE Scalar	value () const
EIGEN_STRONG_INLINE InnerIterator &	operator++ ()
EIGEN_STRONG_INLINE Index	index () const
EIGEN_STRONG_INLINE Index	row () const
EIGEN_STRONG_INLINE Index	col () const
EIGEN_STRONG_INLINE	operator bool () const
Protected Types
typedef internal::inner_iterator_selector < XprType, typename internal::evaluator_traits < XprType >::Kind >	IteratorType
typedef internal::evaluator < XprType >	EvaluatorType
typedef internal::traits < XprType >::Scalar	Scalar
Protected Attributes
EvaluatorType	m_eval
IteratorType	m_iter
Private Member Functions
template<typename T >
	InnerIterator (const EigenBase< T > &, Index outer)

---

Detailed Description

template<typename XprType>
class Eigen::InnerIterator< XprType >

An InnerIterator allows to loop over the element of any matrix expression.

Warning:

To be used with care because an evaluator is constructed every time an InnerIterator iterator is constructed.

TODO: add a usage example

Definition at line 33 of file CoreIterators.h.

---

Member Typedef Documentation

template<typename XprType >

typedef internal::evaluator<XprType> Eigen::InnerIterator< XprType >::EvaluatorType [protected]

Definition at line 37 of file CoreIterators.h.

template<typename XprType >

typedef internal::inner_iterator_selector<XprType, typename internal::evaluator_traits<XprType>::Kind> Eigen::InnerIterator< XprType >::IteratorType [protected]

Definition at line 36 of file CoreIterators.h.

template<typename XprType >

typedef internal::traits<XprType>::Scalar Eigen::InnerIterator< XprType >::Scalar [protected]

Definition at line 38 of file CoreIterators.h.

---

Constructor & Destructor Documentation

template<typename XprType >

Eigen::InnerIterator< XprType >::InnerIterator	(	const XprType &	xpr,
		const Index &	outerId
	)		[inline]

Construct an iterator over the outerId -th row or column of xpr

Definition at line 41 of file CoreIterators.h.

    : m_eval(xpr), m_iter(m_eval, outerId, xpr.innerSize())
  {}

template<typename XprType >

template<typename T >

Eigen::InnerIterator< XprType >::InnerIterator	(	const EigenBase< T > &	,
		Index	outer
	)		[private]

---

Member Function Documentation

template<typename XprType >

EIGEN_STRONG_INLINE Index Eigen::InnerIterator< XprType >::col

(

)

const [inline]

Returns:

the column index of the current coefficient.

Definition at line 56 of file CoreIterators.h.

{ return m_iter.col(); }

template<typename XprType >

EIGEN_STRONG_INLINE Index Eigen::InnerIterator< XprType >::index

(

)

const [inline]

Returns:

the column or row index of the current coefficient.

Definition at line 52 of file CoreIterators.h.

{ return m_iter.index(); }

template<typename XprType >

EIGEN_STRONG_INLINE Eigen::InnerIterator< XprType >::operator bool

(

)

const [inline]

Returns:

true if the iterator *this still references a valid coefficient.

Definition at line 58 of file CoreIterators.h.

{ return m_iter; }

template<typename XprType >

EIGEN_STRONG_INLINE InnerIterator& Eigen::InnerIterator< XprType >::operator++

(

)

[inline]

Increment the iterator *this to the next non-zero coefficient. Explicit zeros are not skipped over. To skip explicit zeros, see class SparseView

Definition at line 50 of file CoreIterators.h.

{ m_iter.operator++(); return *this; }

template<typename XprType >

EIGEN_STRONG_INLINE Index Eigen::InnerIterator< XprType >::row

(

)

const [inline]

Returns:

the row index of the current coefficient.

Definition at line 54 of file CoreIterators.h.

{ return m_iter.row(); }

template<typename XprType >

EIGEN_STRONG_INLINE Scalar Eigen::InnerIterator< XprType >::value

(

)

const [inline]

Returns:

the value of the current coefficient.

Definition at line 46 of file CoreIterators.h.

{ return m_iter.value(); }

---

Member Data Documentation

template<typename XprType >

EvaluatorType Eigen::InnerIterator< XprType >::m_eval [protected]

Definition at line 61 of file CoreIterators.h.

template<typename XprType >

IteratorType Eigen::InnerIterator< XprType >::m_iter [protected]

Definition at line 62 of file CoreIterators.h.

---

The documentation for this class was generated from the following file:

• CoreIterators.h
