Eigen::internal::MappedSuperNodalMatrix< _Scalar, _StorageIndex >::InnerIterator Class Reference

InnerIterator class to iterate over nonzero values of the current column in the supernodal matrix L. More...

#include <SparseLU_SupernodalMatrix.h>

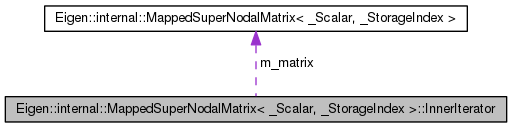

Collaboration diagram for Eigen::internal::MappedSuperNodalMatrix< _Scalar, _StorageIndex >::InnerIterator:

List of all members.

Public Member Functions
	InnerIterator (const MappedSuperNodalMatrix &mat, Index outer)
InnerIterator &	operator++ ()
Scalar	value () const
Scalar &	valueRef ()
Index	index () const
Index	row () const
Index	col () const
Index	supIndex () const
	operator bool () const
Protected Attributes
const MappedSuperNodalMatrix &	m_matrix
const Index	m_outer
const Index	m_supno
Index	m_idval
const Index	m_startidval
const Index	m_endidval
Index	m_idrow
Index	m_endidrow

---

Detailed Description

template<typename _Scalar, typename _StorageIndex>
class Eigen::internal::MappedSuperNodalMatrix< _Scalar, _StorageIndex >::InnerIterator

InnerIterator class to iterate over nonzero values of the current column in the supernodal matrix L.

Definition at line 182 of file SparseLU_SupernodalMatrix.h.

---

Constructor & Destructor Documentation

template<typename _Scalar, typename _StorageIndex>

Eigen::internal::MappedSuperNodalMatrix< _Scalar, _StorageIndex >::InnerIterator::InnerIterator	(	const MappedSuperNodalMatrix &	mat,
		Index	outer
	)		[inline]

Definition at line 185 of file SparseLU_SupernodalMatrix.h.

      : m_matrix(mat),
        m_outer(outer),
        m_supno(mat.colToSup()[outer]),
        m_idval(mat.colIndexPtr()[outer]),
        m_startidval(m_idval),
        m_endidval(mat.colIndexPtr()[outer+1]),
        m_idrow(mat.rowIndexPtr()[mat.supToCol()[mat.colToSup()[outer]]]),
        m_endidrow(mat.rowIndexPtr()[mat.supToCol()[mat.colToSup()[outer]]+1])
    {}

---

Member Function Documentation

template<typename _Scalar, typename _StorageIndex>

Index Eigen::internal::MappedSuperNodalMatrix< _Scalar, _StorageIndex >::InnerIterator::col

(

)

const [inline]

Definition at line 207 of file SparseLU_SupernodalMatrix.h.

{ return m_outer; }

template<typename _Scalar, typename _StorageIndex>

Index Eigen::internal::MappedSuperNodalMatrix< _Scalar, _StorageIndex >::InnerIterator::index

(

)

const [inline]

Definition at line 205 of file SparseLU_SupernodalMatrix.h.

{ return m_matrix.rowIndex()[m_idrow]; }

template<typename _Scalar, typename _StorageIndex>

Eigen::internal::MappedSuperNodalMatrix< _Scalar, _StorageIndex >::InnerIterator::operator bool

(

)

const [inline]

Definition at line 211 of file SparseLU_SupernodalMatrix.h.

    {
      return ( (m_idval < m_endidval) && (m_idval >= m_startidval)
                && (m_idrow < m_endidrow) );
    }

template<typename _Scalar, typename _StorageIndex>

InnerIterator& Eigen::internal::MappedSuperNodalMatrix< _Scalar, _StorageIndex >::InnerIterator::operator++

(

)

[inline]

Definition at line 195 of file SparseLU_SupernodalMatrix.h.

    {
      m_idval++;
      m_idrow++;
      return *this;
    }

template<typename _Scalar, typename _StorageIndex>

Index Eigen::internal::MappedSuperNodalMatrix< _Scalar, _StorageIndex >::InnerIterator::row

(

)

const [inline]

Definition at line 206 of file SparseLU_SupernodalMatrix.h.

{ return index(); }

template<typename _Scalar, typename _StorageIndex>

Index Eigen::internal::MappedSuperNodalMatrix< _Scalar, _StorageIndex >::InnerIterator::supIndex

(

)

const [inline]

Definition at line 209 of file SparseLU_SupernodalMatrix.h.

{ return m_supno; }

template<typename _Scalar, typename _StorageIndex>

Scalar Eigen::internal::MappedSuperNodalMatrix< _Scalar, _StorageIndex >::InnerIterator::value

(

)

const [inline]

Definition at line 201 of file SparseLU_SupernodalMatrix.h.

{ return m_matrix.valuePtr()[m_idval]; }

template<typename _Scalar, typename _StorageIndex>

Scalar& Eigen::internal::MappedSuperNodalMatrix< _Scalar, _StorageIndex >::InnerIterator::valueRef

(

)

[inline]

Definition at line 203 of file SparseLU_SupernodalMatrix.h.

{ return const_cast<Scalar&>(m_matrix.valuePtr()[m_idval]); }

---

Member Data Documentation

template<typename _Scalar, typename _StorageIndex>

Index Eigen::internal::MappedSuperNodalMatrix< _Scalar, _StorageIndex >::InnerIterator::m_endidrow [protected]

Definition at line 225 of file SparseLU_SupernodalMatrix.h.

template<typename _Scalar, typename _StorageIndex>

const Index Eigen::internal::MappedSuperNodalMatrix< _Scalar, _StorageIndex >::InnerIterator::m_endidval [protected]

Definition at line 223 of file SparseLU_SupernodalMatrix.h.

template<typename _Scalar, typename _StorageIndex>

Index Eigen::internal::MappedSuperNodalMatrix< _Scalar, _StorageIndex >::InnerIterator::m_idrow [protected]

Definition at line 224 of file SparseLU_SupernodalMatrix.h.

template<typename _Scalar, typename _StorageIndex>

Index Eigen::internal::MappedSuperNodalMatrix< _Scalar, _StorageIndex >::InnerIterator::m_idval [protected]

Definition at line 221 of file SparseLU_SupernodalMatrix.h.

template<typename _Scalar, typename _StorageIndex>

const MappedSuperNodalMatrix& Eigen::internal::MappedSuperNodalMatrix< _Scalar, _StorageIndex >::InnerIterator::m_matrix [protected]

Definition at line 218 of file SparseLU_SupernodalMatrix.h.

template<typename _Scalar, typename _StorageIndex>

const Index Eigen::internal::MappedSuperNodalMatrix< _Scalar, _StorageIndex >::InnerIterator::m_outer [protected]

Definition at line 219 of file SparseLU_SupernodalMatrix.h.

template<typename _Scalar, typename _StorageIndex>

const Index Eigen::internal::MappedSuperNodalMatrix< _Scalar, _StorageIndex >::InnerIterator::m_startidval [protected]

Definition at line 222 of file SparseLU_SupernodalMatrix.h.

template<typename _Scalar, typename _StorageIndex>

const Index Eigen::internal::MappedSuperNodalMatrix< _Scalar, _StorageIndex >::InnerIterator::m_supno [protected]

Definition at line 220 of file SparseLU_SupernodalMatrix.h.

---

The documentation for this class was generated from the following file:

• SparseLU_SupernodalMatrix.h
