Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType > Class Template Reference

Generic expression where a coefficient-wise binary operator is applied to two expressions. More...

#include <CwiseBinaryOp.h>

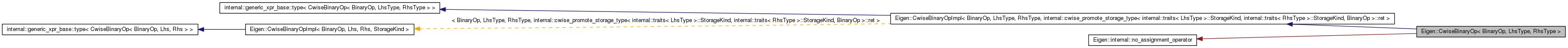

Inheritance diagram for Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >:

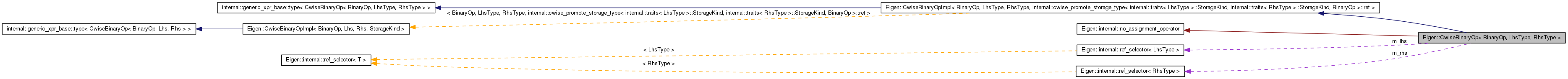

Collaboration diagram for Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >:

List of all members.

Public Types
typedef internal::remove_all < LhsType >::type	Lhs
typedef internal::remove_all < RhsType >::type	Rhs
typedef CwiseBinaryOpImpl < BinaryOp, LhsType, RhsType, typename internal::cwise_promote_storage_type < typename internal::traits < LhsType >::StorageKind, typename internal::traits< Rhs > ::StorageKind, BinaryOp >::ret > ::Base	Base
typedef internal::ref_selector < LhsType >::type	LhsNested
typedef internal::ref_selector < RhsType >::type	RhsNested
typedef internal::remove_reference < LhsNested >::type	_LhsNested
typedef internal::remove_reference < RhsNested >::type	_RhsNested
Public Member Functions
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE	CwiseBinaryOp (const Lhs &aLhs, const Rhs &aRhs, const BinaryOp &func=BinaryOp())
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Index	rows () const
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Index	cols () const
EIGEN_DEVICE_FUNC const _LhsNested &	lhs () const
EIGEN_DEVICE_FUNC const _RhsNested &	rhs () const
EIGEN_DEVICE_FUNC const BinaryOp &	functor () const
Protected Attributes
LhsNested	m_lhs
RhsNested	m_rhs
const BinaryOp	m_functor

---

Detailed Description

template<typename BinaryOp, typename LhsType, typename RhsType>
class Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >

Generic expression where a coefficient-wise binary operator is applied to two expressions.

Template Parameters:

BinaryOp	template functor implementing the operator
LhsType	the type of the left-hand side
RhsType	the type of the right-hand side

This class represents an expression where a coefficient-wise binary operator is applied to two expressions. It is the return type of binary operators, by which we mean only those binary operators where both the left-hand side and the right-hand side are Eigen expressions. For example, the return type of matrix1+matrix2 is a CwiseBinaryOp.

Most of the time, this is the only way that it is used, so you typically don't have to name CwiseBinaryOp types explicitly.

See also:

MatrixBase::binaryExpr(const MatrixBase<OtherDerived> &,const CustomBinaryOp &) const, class CwiseUnaryOp, class CwiseNullaryOp

Definition at line 77 of file CwiseBinaryOp.h.

---

Member Typedef Documentation

template<typename BinaryOp, typename LhsType, typename RhsType>

typedef internal::remove_reference<LhsNested>::type Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::_LhsNested

Definition at line 99 of file CwiseBinaryOp.h.

template<typename BinaryOp, typename LhsType, typename RhsType>

typedef internal::remove_reference<RhsNested>::type Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::_RhsNested

Definition at line 100 of file CwiseBinaryOp.h.

template<typename BinaryOp, typename LhsType, typename RhsType>

typedef CwiseBinaryOpImpl< BinaryOp, LhsType, RhsType, typename internal::cwise_promote_storage_type<typename internal::traits<LhsType>::StorageKind, typename internal::traits<Rhs>::StorageKind, BinaryOp>::ret>::Base Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::Base

Reimplemented from Eigen::CwiseBinaryOpImpl< BinaryOp, LhsType, RhsType, internal::cwise_promote_storage_type< internal::traits< LhsType >::StorageKind, internal::traits< RhsType >::StorageKind, BinaryOp >::ret >.

Definition at line 94 of file CwiseBinaryOp.h.

template<typename BinaryOp, typename LhsType, typename RhsType>

typedef internal::remove_all<LhsType>::type Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::Lhs

Definition at line 87 of file CwiseBinaryOp.h.

template<typename BinaryOp, typename LhsType, typename RhsType>

typedef internal::ref_selector<LhsType>::type Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::LhsNested

Definition at line 97 of file CwiseBinaryOp.h.

template<typename BinaryOp, typename LhsType, typename RhsType>

typedef internal::remove_all<RhsType>::type Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::Rhs

Definition at line 88 of file CwiseBinaryOp.h.

template<typename BinaryOp, typename LhsType, typename RhsType>

typedef internal::ref_selector<RhsType>::type Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::RhsNested

Definition at line 98 of file CwiseBinaryOp.h.

---

Constructor & Destructor Documentation

template<typename BinaryOp, typename LhsType, typename RhsType>

EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::CwiseBinaryOp	(	const Lhs &	aLhs,
		const Rhs &	aRhs,
		const BinaryOp &	func = BinaryOp()
	)		[inline]

Definition at line 103 of file CwiseBinaryOp.h.

      : m_lhs(aLhs), m_rhs(aRhs), m_functor(func)
    {
      EIGEN_CHECK_BINARY_COMPATIBILIY(BinaryOp,typename Lhs::Scalar,typename Rhs::Scalar);
      // require the sizes to match
      EIGEN_STATIC_ASSERT_SAME_MATRIX_SIZE(Lhs, Rhs)
      eigen_assert(aLhs.rows() == aRhs.rows() && aLhs.cols() == aRhs.cols());
    }

---

Member Function Documentation

template<typename BinaryOp, typename LhsType, typename RhsType>

EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Index Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::cols

(

)

const [inline]

Definition at line 121 of file CwiseBinaryOp.h.

                                           {
      // return the fixed size type if available to enable compile time optimizations
      if (internal::traits<typename internal::remove_all<LhsNested>::type>::ColsAtCompileTime==Dynamic)
        return m_rhs.cols();
      else
        return m_lhs.cols();
    }

template<typename BinaryOp, typename LhsType, typename RhsType>

EIGEN_DEVICE_FUNC const BinaryOp& Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::functor

(

)

const [inline]

Returns:

the functor representing the binary operation

Definition at line 137 of file CwiseBinaryOp.h.

{ return m_functor; }

template<typename BinaryOp, typename LhsType, typename RhsType>

EIGEN_DEVICE_FUNC const _LhsNested& Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::lhs

(

)

const [inline]

Returns:

the left hand side nested expression

Definition at line 131 of file CwiseBinaryOp.h.

{ return m_lhs; }

template<typename BinaryOp, typename LhsType, typename RhsType>

EIGEN_DEVICE_FUNC const _RhsNested& Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::rhs

(

)

const [inline]

Returns:

the right hand side nested expression

Definition at line 134 of file CwiseBinaryOp.h.

{ return m_rhs; }

template<typename BinaryOp, typename LhsType, typename RhsType>

EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Index Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::rows

(

)

const [inline]

Definition at line 113 of file CwiseBinaryOp.h.

                                           {
      // return the fixed size type if available to enable compile time optimizations
      if (internal::traits<typename internal::remove_all<LhsNested>::type>::RowsAtCompileTime==Dynamic)
        return m_rhs.rows();
      else
        return m_lhs.rows();
    }

---

Member Data Documentation

template<typename BinaryOp, typename LhsType, typename RhsType>

const BinaryOp Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::m_functor [protected]

Definition at line 142 of file CwiseBinaryOp.h.

template<typename BinaryOp, typename LhsType, typename RhsType>

LhsNested Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::m_lhs [protected]

Definition at line 140 of file CwiseBinaryOp.h.

template<typename BinaryOp, typename LhsType, typename RhsType>

RhsNested Eigen::CwiseBinaryOp< BinaryOp, LhsType, RhsType >::m_rhs [protected]

Definition at line 141 of file CwiseBinaryOp.h.

---

The documentation for this class was generated from the following file:

• CwiseBinaryOp.h
