Eigen::SparseSymmetricPermutationProduct< MatrixType, Mode > Class Template Reference

#include <SparseSelfAdjointView.h>

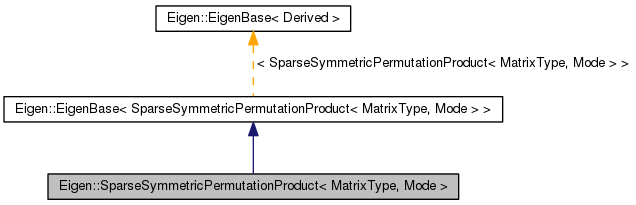

Inheritance diagram for Eigen::SparseSymmetricPermutationProduct< MatrixType, Mode >:

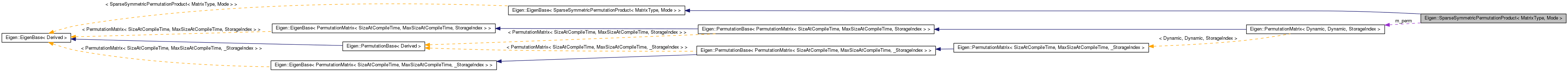

Collaboration diagram for Eigen::SparseSymmetricPermutationProduct< MatrixType, Mode >:

List of all members.

Public Types
enum	{ RowsAtCompileTime = internal::traits<SparseSymmetricPermutationProduct>::RowsAtCompileTime, ColsAtCompileTime = internal::traits<SparseSymmetricPermutationProduct>::ColsAtCompileTime }
typedef MatrixType::Scalar	Scalar
typedef MatrixType::StorageIndex	StorageIndex
typedef Matrix< StorageIndex, Dynamic, 1 >	VectorI
typedef MatrixType::Nested	MatrixTypeNested
typedef internal::remove_all < MatrixTypeNested >::type	NestedExpression
Public Member Functions
	SparseSymmetricPermutationProduct (const MatrixType &mat, const Perm &perm)
Index	rows () const
Index	cols () const
const NestedExpression &	matrix () const
const Perm &	perm () const
Protected Types
typedef PermutationMatrix < Dynamic, Dynamic, StorageIndex >	Perm
Protected Attributes
MatrixTypeNested	m_matrix
const Perm &	m_perm

---

Detailed Description

template<typename MatrixType, int Mode>
class Eigen::SparseSymmetricPermutationProduct< MatrixType, Mode >

Definition at line 553 of file SparseSelfAdjointView.h.

---

Member Typedef Documentation

template<typename MatrixType, int Mode>

typedef MatrixType::Nested Eigen::SparseSymmetricPermutationProduct< MatrixType, Mode >::MatrixTypeNested

Definition at line 567 of file SparseSelfAdjointView.h.

template<typename MatrixType, int Mode>

typedef internal::remove_all<MatrixTypeNested>::type Eigen::SparseSymmetricPermutationProduct< MatrixType, Mode >::NestedExpression

Definition at line 568 of file SparseSelfAdjointView.h.

template<typename MatrixType, int Mode>

typedef PermutationMatrix<Dynamic,Dynamic,StorageIndex> Eigen::SparseSymmetricPermutationProduct< MatrixType, Mode >::Perm [protected]

Definition at line 564 of file SparseSelfAdjointView.h.

template<typename MatrixType, int Mode>

typedef MatrixType::Scalar Eigen::SparseSymmetricPermutationProduct< MatrixType, Mode >::Scalar

Definition at line 557 of file SparseSelfAdjointView.h.

template<typename MatrixType, int Mode>

typedef MatrixType::StorageIndex Eigen::SparseSymmetricPermutationProduct< MatrixType, Mode >::StorageIndex

Definition at line 558 of file SparseSelfAdjointView.h.

template<typename MatrixType, int Mode>

typedef Matrix<StorageIndex,Dynamic,1> Eigen::SparseSymmetricPermutationProduct< MatrixType, Mode >::VectorI

Definition at line 566 of file SparseSelfAdjointView.h.

---

Member Enumeration Documentation

template<typename MatrixType, int Mode>

anonymous enum

Enumerator:

RowsAtCompileTime
ColsAtCompileTime

Definition at line 559 of file SparseSelfAdjointView.h.

         {
      RowsAtCompileTime = internal::traits<SparseSymmetricPermutationProduct>::RowsAtCompileTime,
      ColsAtCompileTime = internal::traits<SparseSymmetricPermutationProduct>::ColsAtCompileTime
    };

---

Constructor & Destructor Documentation

template<typename MatrixType, int Mode>

Eigen::SparseSymmetricPermutationProduct< MatrixType, Mode >::SparseSymmetricPermutationProduct	(	const MatrixType &	mat,
		const Perm &	perm
	)		[inline]

Definition at line 570 of file SparseSelfAdjointView.h.

      : m_matrix(mat), m_perm(perm)
    {}

---

Member Function Documentation

template<typename MatrixType, int Mode>

Index Eigen::SparseSymmetricPermutationProduct< MatrixType, Mode >::cols

(

void

)

const [inline]

Returns:

the number of columns.

See also:

rows(), ColsAtCompileTime

Reimplemented from Eigen::EigenBase< SparseSymmetricPermutationProduct< MatrixType, Mode > >.

Definition at line 575 of file SparseSelfAdjointView.h.

{ return m_matrix.cols(); }

template<typename MatrixType, int Mode>

const NestedExpression& Eigen::SparseSymmetricPermutationProduct< MatrixType, Mode >::matrix

(

)

const [inline]

Definition at line 577 of file SparseSelfAdjointView.h.

{ return m_matrix; }

template<typename MatrixType, int Mode>

const Perm& Eigen::SparseSymmetricPermutationProduct< MatrixType, Mode >::perm

(

)

const [inline]

Definition at line 578 of file SparseSelfAdjointView.h.

{ return m_perm; }

template<typename MatrixType, int Mode>

Index Eigen::SparseSymmetricPermutationProduct< MatrixType, Mode >::rows

(

void

)

const [inline]

Returns:

the number of rows.

See also:

cols(), RowsAtCompileTime

Reimplemented from Eigen::EigenBase< SparseSymmetricPermutationProduct< MatrixType, Mode > >.

Definition at line 574 of file SparseSelfAdjointView.h.

{ return m_matrix.rows(); }

---

Member Data Documentation

template<typename MatrixType, int Mode>

MatrixTypeNested Eigen::SparseSymmetricPermutationProduct< MatrixType, Mode >::m_matrix [protected]

Definition at line 581 of file SparseSelfAdjointView.h.

template<typename MatrixType, int Mode>

const Perm& Eigen::SparseSymmetricPermutationProduct< MatrixType, Mode >::m_perm [protected]

Definition at line 582 of file SparseSelfAdjointView.h.

---

The documentation for this class was generated from the following file:

• SparseSelfAdjointView.h
