Eigen::Matrix< _Scalar, _Rows, _Cols, _Options, _MaxRows, _MaxCols > Class Template Reference

The matrix class, also used for vectors and row-vectors. More...

#include <Matrix.h>

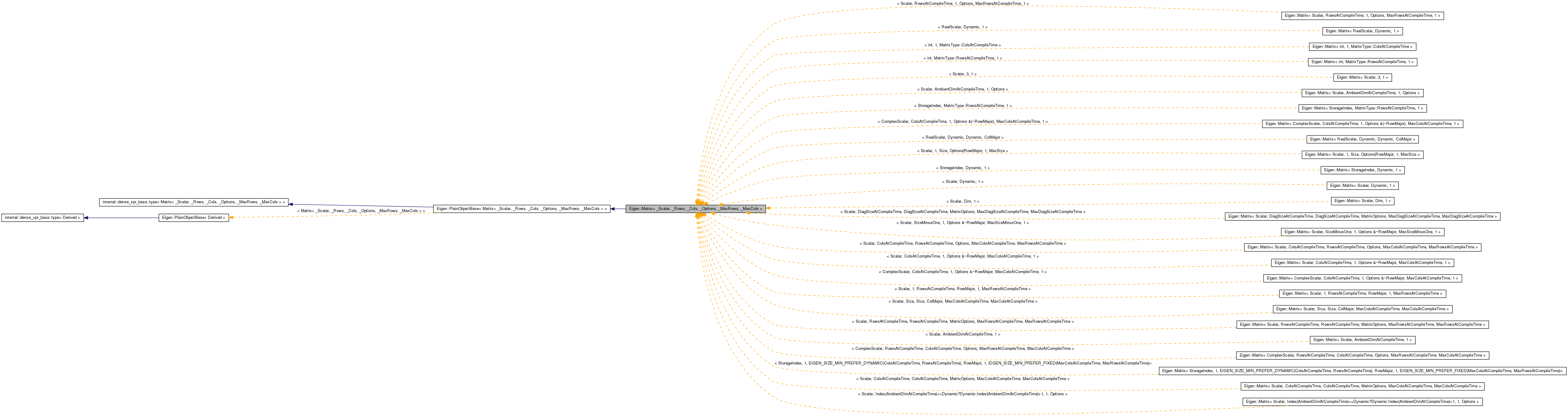

Inheritance diagram for Eigen::Matrix< _Scalar, _Rows, _Cols, _Options, _MaxRows, _MaxCols >:
Inheritance graph
[legend]

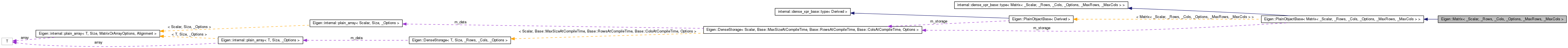

Collaboration diagram for Eigen::Matrix< _Scalar, _Rows, _Cols, _Options, _MaxRows, _MaxCols >:
Collaboration graph
[legend]

List of all members.

Public Types

enum  { Options = _Options }
typedef PlainObjectBase< Matrix > Base
 Base class typedef.
typedef Base::PlainObject PlainObject

Public Member Functions

EIGEN_DEVICE_FUNC
EIGEN_STRONG_INLINE Matrix & 		operator= (const Matrix &other)
 Assigns matrices to each other.
template<typename OtherDerived >
EIGEN_DEVICE_FUNC
EIGEN_STRONG_INLINE Matrix & 		operator= (const DenseBase< OtherDerived > &other)
 Copies the value of the expression other into *this with automatic resizing.
template<typename OtherDerived >
EIGEN_DEVICE_FUNC
EIGEN_STRONG_INLINE Matrix & 		operator= (const EigenBase< OtherDerived > &other)
 Copies the generic expression other into *this.
template<typename OtherDerived >
EIGEN_DEVICE_FUNC
EIGEN_STRONG_INLINE Matrix & 		operator= (const ReturnByValue< OtherDerived > &func)
EIGEN_DEVICE_FUNC
EIGEN_STRONG_INLINE 		Matrix ()
 Default constructor.
EIGEN_DEVICE_FUNC Matrix (internal::constructor_without_unaligned_array_assert)
template<typename T >
EIGEN_DEVICE_FUNC
EIGEN_STRONG_INLINE 		Matrix (const T &x)
template<typename T0 , typename T1 >
EIGEN_DEVICE_FUNC
EIGEN_STRONG_INLINE 		Matrix (const T0 &x, const T1 &y)
EIGEN_DEVICE_FUNC
EIGEN_STRONG_INLINE 		Matrix (const Scalar &x, const Scalar &y, const Scalar &z)
 Constructs an initialized 3D vector with given coefficients.
EIGEN_DEVICE_FUNC
EIGEN_STRONG_INLINE 		Matrix (const Scalar &x, const Scalar &y, const Scalar &z, const Scalar &w)
 Constructs an initialized 4D vector with given coefficients.
EIGEN_DEVICE_FUNC
EIGEN_STRONG_INLINE 		Matrix (const Matrix &other)
 Copy constructor.
template<typename OtherDerived >
EIGEN_DEVICE_FUNC
EIGEN_STRONG_INLINE 		Matrix (const EigenBase< OtherDerived > &other)
 Copy constructor for generic expressions.
EIGEN_DEVICE_FUNC Index innerStride () const
EIGEN_DEVICE_FUNC Index outerStride () const
template<typename OtherDerived >
EIGEN_DEVICE_FUNC Matrix (const RotationBase< OtherDerived, ColsAtCompileTime > &r)
 Constructs a Dim x Dim rotation matrix from the rotation r.
template<typename OtherDerived >
EIGEN_DEVICE_FUNC Matrix & operator= (const RotationBase< OtherDerived, ColsAtCompileTime > &r)
 Set a Dim x Dim rotation matrix from the rotation r.

Friends

struct internal::conservative_resize_like_impl

Detailed Description

template<typename _Scalar, int _Rows, int _Cols, int _Options, int _MaxRows, int _MaxCols>
class Eigen::Matrix< _Scalar, _Rows, _Cols, _Options, _MaxRows, _MaxCols >

The matrix class, also used for vectors and row-vectors.

The Matrix class is the work-horse for all dense (note) matrices and vectors within Eigen. Vectors are matrices with one column, and row-vectors are matrices with one row.

The Matrix class encompasses both fixed-size and dynamic-size objects (note).

The first three template parameters are required:

Template Parameters:
_ScalarNumeric type, e.g. float, double, int or std::complex<float>. User defined scalar types are supported as well (see here).
_RowsNumber of rows, or Dynamic
_ColsNumber of columns, or Dynamic

The remaining template parameters are optional -- in most cases you don't have to worry about them.

Template Parameters:
_OptionsA combination of either RowMajor or ColMajor, and of either AutoAlign or DontAlign. The former controls storage order, and defaults to column-major. The latter controls alignment, which is required for vectorization. It defaults to aligning matrices except for fixed sizes that aren't a multiple of the packet size.
_MaxRowsMaximum number of rows. Defaults to _Rows (note).
_MaxColsMaximum number of columns. Defaults to _Cols (note).

Eigen provides a number of typedefs covering the usual cases. Here are some examples:

  • Matrix2d is a 2x2 square matrix of doubles (Matrix<double, 2, 2>)
  • Vector4f is a vector of 4 floats (Matrix<float, 4, 1>)
  • RowVector3i is a row-vector of 3 ints (Matrix<int, 1, 3>)
  • MatrixXf is a dynamic-size matrix of floats (Matrix<float, Dynamic, Dynamic>)
  • VectorXf is a dynamic-size vector of floats (Matrix<float, Dynamic, 1>)
  • Matrix2Xf is a partially fixed-size (dynamic-size) matrix of floats (Matrix<float, 2, Dynamic>)
  • MatrixX3d is a partially dynamic-size (fixed-size) matrix of double (Matrix<double, Dynamic, 3>)

See this page for a complete list of predefined Matrix and Vector typedefs.

You can access elements of vectors and matrices using normal subscripting:

 Eigen::VectorXd v(10);
 v[0] = 0.1;
 v[1] = 0.2;
 v(0) = 0.3;
 v(1) = 0.4;

 Eigen::MatrixXi m(10, 10);
 m(0, 1) = 1;
 m(0, 2) = 2;
 m(0, 3) = 3;

This class can be extended with the help of the plugin mechanism described on the page TopicCustomizingEigen by defining the preprocessor symbol EIGEN_MATRIX_PLUGIN.

Some notes:

Dense versus sparse:

This Matrix class handles dense, not sparse matrices and vectors. For sparse matrices and vectors, see the Sparse module.

Dense matrices and vectors are plain usual arrays of coefficients. All the coefficients are stored, in an ordinary contiguous array. This is unlike Sparse matrices and vectors where the coefficients are stored as a list of nonzero coefficients.

Fixed-size versus dynamic-size:

Fixed-size means that the numbers of rows and columns are known are compile-time. In this case, Eigen allocates the array of coefficients as a fixed-size array, as a class member. This makes sense for very small matrices, typically up to 4x4, sometimes up to 16x16. Larger matrices should be declared as dynamic-size even if one happens to know their size at compile-time.

Dynamic-size means that the numbers of rows or columns are not necessarily known at compile-time. In this case they are runtime variables, and the array of coefficients is allocated dynamically on the heap.

Note that dense matrices, be they Fixed-size or Dynamic-size, do not expand dynamically in the sense of a std::map. If you want this behavior, see the Sparse module.

_MaxRows and _MaxCols:
In most cases, one just leaves these parameters to the default values. These parameters mean the maximum size of rows and columns that the matrix may have. They are useful in cases when the exact numbers of rows and columns are not known are compile-time, but it is known at compile-time that they cannot exceed a certain value. This happens when taking dynamic-size blocks inside fixed-size matrices: in this case _MaxRows and _MaxCols are the dimensions of the original matrix, while _Rows and _Cols are Dynamic.

ABI and storage layout

The table below summarizes the ABI of some possible Matrix instances which is fixed thorough the lifetime of Eigen 3.

Matrix typeEquivalent C structure
 Matrix<T,Dynamic,Dynamic>

 struct {
   T *data;                  // with (size_t(data)%EIGEN_MAX_ALIGN_BYTES)==0
   Eigen::Index rows, cols;
  };

 Matrix<T,Dynamic,1>
 Matrix<T,1,Dynamic>

 struct {
   T *data;                  // with (size_t(data)%EIGEN_MAX_ALIGN_BYTES)==0
   Eigen::Index size;
  };

 Matrix<T,Rows,Cols>

 struct {
   T data[Rows*Cols];        // with (size_t(data)%A(Rows*Cols*sizeof(T)))==0
  };

 Matrix<T,Dynamic,Dynamic,0,MaxRows,MaxCols>

 struct {
   T data[MaxRows*MaxCols];  // with (size_t(data)%A(MaxRows*MaxCols*sizeof(T)))==0
   Eigen::Index rows, cols;
  };

Note that in this table Rows, Cols, MaxRows and MaxCols are all positive integers. A(S) is defined to the largest possible power-of-two smaller to EIGEN_MAX_STATIC_ALIGN_BYTES.

See also:
MatrixBase for the majority of the API methods for matrices, TopicClassHierarchy, TopicStorageOrders

Definition at line 178 of file Matrix.h.

Member Typedef Documentation

template<typename _Scalar, int _Rows, int _Cols, int _Options, int _MaxRows, int _MaxCols>
typedef PlainObjectBase<Matrix> Eigen::Matrix< _Scalar, _Rows, _Cols, _Options, _MaxRows, _MaxCols >::Base

Base class typedef.

See also:
PlainObjectBase

Reimplemented from Eigen::PlainObjectBase< Matrix< _Scalar, _Rows, _Cols, _Options, _MaxRows, _MaxCols > >.

Definition at line 186 of file Matrix.h.

template<typename _Scalar, int _Rows, int _Cols, int _Options, int _MaxRows, int _MaxCols>
typedef Base::PlainObject Eigen::Matrix< _Scalar, _Rows, _Cols, _Options, _MaxRows, _MaxCols >::PlainObject

Definition at line 192 of file Matrix.h.

Member Enumeration Documentation

template<typename _Scalar, int _Rows, int _Cols, int _Options, int _MaxRows, int _MaxCols>
anonymous enum
Enumerator:
Options

Definition at line 188 of file Matrix.h.

{ Options = _Options };

Constructor & Destructor Documentation

template<typename _Scalar, int _Rows, int _Cols, int _Options, int _MaxRows, int _MaxCols>
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Eigen::Matrix< _Scalar, _Rows, _Cols, _Options, _MaxRows, _MaxCols >::Matrix ( ) [inline]

Default constructor.

For fixed-size matrices, does nothing.

For dynamic-size matrices, creates an empty matrix of size 0. Does not allocate any array. Such a matrix is called a null matrix. This constructor is the unique way to create null matrices: resizing a matrix to 0 is not supported.

See also:
resize(Index,Index)

Definition at line 259 of file Matrix.h.

                                 : Base()
    {
      Base::_check_template_params();
      EIGEN_INITIALIZE_COEFFS_IF_THAT_OPTION_IS_ENABLED
    }
template<typename _Scalar, int _Rows, int _Cols, int _Options, int _MaxRows, int _MaxCols>
EIGEN_DEVICE_FUNC Eigen::Matrix< _Scalar, _Rows, _Cols, _Options, _MaxRows, _MaxCols >::Matrix ( internal::constructor_without_unaligned_array_assert  ) [inline, explicit]

Definition at line 267 of file Matrix.h.

      : Base(internal::constructor_without_unaligned_array_assert())
    { Base::_check_template_params(); EIGEN_INITIALIZE_COEFFS_IF_THAT_OPTION_IS_ENABLED }
template<typename _Scalar, int _Rows, int _Cols, int _Options, int _MaxRows, int _MaxCols>
template<typename T >
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Eigen::Matrix< _Scalar, _Rows, _Cols, _Options, _MaxRows, _MaxCols >::Matrix ( const T &  x) [inline, explicit]

Definition at line 293 of file Matrix.h.

    {
      Base::_check_template_params();
      Base::template _init1<T>(x);
    }
template<typename _Scalar, int _Rows, int _Cols, int _Options, int _MaxRows, int _MaxCols>
template<typename T0 , typename T1 >
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Eigen::Matrix< _Scalar, _Rows, _Cols, _Options, _MaxRows, _MaxCols >::Matrix ( const T0 &  x,
const T1 &  y
) [inline]

Definition at line 301 of file Matrix.h.

    {
      Base::_check_template_params();
      Base::template _init2<T0,T1>(x, y);
    }
template<typename _Scalar, int _Rows, int _Cols, int _Options, int _MaxRows, int _MaxCols>
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Eigen::Matrix< _Scalar, _Rows, _Cols, _Options, _MaxRows, _MaxCols >::Matrix ( const Scalar &  x,
const Scalar &  y,
const Scalar &  z
) [inline]

Constructs an initialized 3D vector with given coefficients.

Definition at line 347 of file Matrix.h.

    {
      Base::_check_template_params();
      EIGEN_STATIC_ASSERT_VECTOR_SPECIFIC_SIZE(Matrix, 3)
      m_storage.data()[0] = x;
      m_storage.data()[1] = y;
      m_storage.data()[2] = z;
    }
template<typename _Scalar, int _Rows, int _Cols, int _Options, int _MaxRows, int _MaxCols>
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Eigen::Matrix< _Scalar, _Rows, _Cols, _Options, _MaxRows, _MaxCols >::Matrix ( const Scalar &  x,
const Scalar &  y,
const Scalar &  z,
const Scalar &  w
) [inline]

Constructs an initialized 4D vector with given coefficients.

Definition at line 357 of file Matrix.h.

    {
      Base::_check_template_params();
      EIGEN_STATIC_ASSERT_VECTOR_SPECIFIC_SIZE(Matrix, 4)
      m_storage.data()[0] = x;
      m_storage.data()[1] = y;
      m_storage.data()[2] = z;
      m_storage.data()[3] = w;
    }
template<typename _Scalar, int _Rows, int _Cols, int _Options, int _MaxRows, int _MaxCols>
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Eigen::Matrix< _Scalar, _Rows, _Cols, _Options, _MaxRows, _MaxCols >::Matrix ( const Matrix< _Scalar, _Rows, _Cols, _Options, _MaxRows, _MaxCols > &  other) [inline]

Copy constructor.

Definition at line 370 of file Matrix.h.

                                                    : Base(other)
    { }
template<typename _Scalar, int _Rows, int _Cols, int _Options, int _MaxRows, int _MaxCols>
template<typename OtherDerived >
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Eigen::Matrix< _Scalar, _Rows, _Cols, _Options, _MaxRows, _MaxCols >::Matrix ( const EigenBase< OtherDerived > &  other) [inline]

Copy constructor for generic expressions.

See also:
MatrixBase::operator=(const EigenBase<OtherDerived>&)

Definition at line 378 of file Matrix.h.

      : Base(other.derived())
    { }
template<typename _Scalar , int _Rows, int _Cols, int _Storage, int _MaxRows, int _MaxCols>
template<typename OtherDerived >
Eigen::Matrix< _Scalar, _Rows, _Cols, _Storage, _MaxRows, _MaxCols >::Matrix ( const RotationBase< OtherDerived, ColsAtCompileTime > &  r) [explicit]

Constructs a Dim x Dim rotation matrix from the rotation r.

Definition at line 141 of file RotationBase.h.

{
  EIGEN_STATIC_ASSERT_MATRIX_SPECIFIC_SIZE(Matrix,int(OtherDerived::Dim),int(OtherDerived::Dim))
  *this = r.toRotationMatrix();
}

Member Function Documentation

template<typename _Scalar, int _Rows, int _Cols, int _Options, int _MaxRows, int _MaxCols>
EIGEN_DEVICE_FUNC Index Eigen::Matrix< _Scalar, _Rows, _Cols, _Options, _MaxRows, _MaxCols >::innerStride ( ) const [inline]

Definition at line 382 of file Matrix.h.

{ return 1; }
template<typename _Scalar, int _Rows, int _Cols, int _Options, int _MaxRows, int _MaxCols>
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Matrix& Eigen::Matrix< _Scalar, _Rows, _Cols, _Options, _MaxRows, _MaxCols >::operator= ( const Matrix< _Scalar, _Rows, _Cols, _Options, _MaxRows, _MaxCols > &  other) [inline]

Assigns matrices to each other.

Note:
This is a special case of the templated operator=. Its purpose is to prevent a default operator= from hiding the templated operator=.

Definition at line 206 of file Matrix.h.

    {
      return Base::_set(other);
    }
template<typename _Scalar, int _Rows, int _Cols, int _Options, int _MaxRows, int _MaxCols>
template<typename OtherDerived >
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Matrix& Eigen::Matrix< _Scalar, _Rows, _Cols, _Options, _MaxRows, _MaxCols >::operator= ( const DenseBase< OtherDerived > &  other) [inline]

Copies the value of the expression other into *this with automatic resizing.

*this might be resized to match the dimensions of other. If *this was a null matrix (not already initialized), it will be initialized.

Note that copying a row-vector into a vector (and conversely) is allowed. The resizing, if any, is then done in the appropriate way so that row-vectors remain row-vectors and vectors remain vectors.

Definition at line 223 of file Matrix.h.

    {
      return Base::_set(other);
    }
template<typename _Scalar, int _Rows, int _Cols, int _Options, int _MaxRows, int _MaxCols>
template<typename OtherDerived >
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Matrix& Eigen::Matrix< _Scalar, _Rows, _Cols, _Options, _MaxRows, _MaxCols >::operator= ( const EigenBase< OtherDerived > &  other) [inline]

Copies the generic expression other into *this.

The expression must provide a (templated) evalTo(Derived& dst) const function which does the actual job. In practice, this allows any user to write its own special matrix without having to modify MatrixBase

Returns:
a reference to *this.

Reimplemented from Eigen::PlainObjectBase< Matrix< _Scalar, _Rows, _Cols, _Options, _MaxRows, _MaxCols > >.

Definition at line 236 of file Matrix.h.

    {
      return Base::operator=(other);
    }
template<typename _Scalar, int _Rows, int _Cols, int _Options, int _MaxRows, int _MaxCols>
template<typename OtherDerived >
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Matrix& Eigen::Matrix< _Scalar, _Rows, _Cols, _Options, _MaxRows, _MaxCols >::operator= ( const ReturnByValue< OtherDerived > &  func) [inline]

Reimplemented from Eigen::PlainObjectBase< Matrix< _Scalar, _Rows, _Cols, _Options, _MaxRows, _MaxCols > >.

Definition at line 243 of file Matrix.h.

    {
      return Base::operator=(func);
    }
template<typename _Scalar , int _Rows, int _Cols, int _Storage, int _MaxRows, int _MaxCols>
template<typename OtherDerived >
Matrix< _Scalar, _Rows, _Cols, _Storage, _MaxRows, _MaxCols > & Eigen::Matrix< _Scalar, _Rows, _Cols, _Storage, _MaxRows, _MaxCols >::operator= ( const RotationBase< OtherDerived, ColsAtCompileTime > &  r)

Set a Dim x Dim rotation matrix from the rotation r.

Definition at line 155 of file RotationBase.h.

{
  EIGEN_STATIC_ASSERT_MATRIX_SPECIFIC_SIZE(Matrix,int(OtherDerived::Dim),int(OtherDerived::Dim))
  return *this = r.toRotationMatrix();
}
template<typename _Scalar, int _Rows, int _Cols, int _Options, int _MaxRows, int _MaxCols>
EIGEN_DEVICE_FUNC Index Eigen::Matrix< _Scalar, _Rows, _Cols, _Options, _MaxRows, _MaxCols >::outerStride ( ) const [inline]

Definition at line 383 of file Matrix.h.

{ return this->innerSize(); }

Friends And Related Function Documentation

template<typename _Scalar, int _Rows, int _Cols, int _Options, int _MaxRows, int _MaxCols>
friend struct internal::conservative_resize_like_impl [friend]

Definition at line 401 of file Matrix.h.

The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
