Eigen::Reverse< MatrixType, Direction > Class Template Reference

Expression of the reverse of a vector or matrix. More...

#include <Reverse.h>

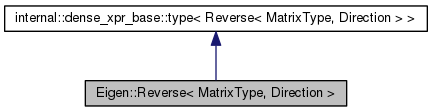

Inheritance diagram for Eigen::Reverse< MatrixType, Direction >:

Collaboration diagram for Eigen::Reverse< MatrixType, Direction >:

List of all members.

Public Types
typedef internal::dense_xpr_base < Reverse >::type	Base
typedef internal::remove_all < MatrixType >::type	NestedExpression
Public Member Functions
EIGEN_DEVICE_FUNC	Reverse (const MatrixType &matrix)
EIGEN_DEVICE_FUNC Index	rows () const
EIGEN_DEVICE_FUNC Index	cols () const
EIGEN_DEVICE_FUNC Index	innerStride () const
EIGEN_DEVICE_FUNC const internal::remove_all< typename MatrixType::Nested >::type &	nestedExpression () const
Protected Types
enum	{   PacketSize = internal::packet_traits<Scalar>::size, IsColMajor = !IsRowMajor, ReverseRow = (Direction == Vertical) || (Direction == BothDirections), ReverseCol = (Direction == Horizontal) || (Direction == BothDirections),   OffsetRow = ReverseRow && IsColMajor ? PacketSize : 1, OffsetCol = ReverseCol && IsRowMajor ? PacketSize : 1, ReversePacket }
typedef internal::reverse_packet_cond < PacketScalar, ReversePacket >	reverse_packet
Protected Attributes
MatrixType::Nested	m_matrix

---

Detailed Description

template<typename MatrixType, int Direction>
class Eigen::Reverse< MatrixType, Direction >

Expression of the reverse of a vector or matrix.

Template Parameters:

MatrixType	the type of the object of which we are taking the reverse
Direction	defines the direction of the reverse operation, can be Vertical, Horizontal, or BothDirections

This class represents an expression of the reverse of a vector. It is the return type of MatrixBase::reverse() and VectorwiseOp::reverse() and most of the time this is the only way it is used.

See also:

MatrixBase::reverse(), VectorwiseOp::reverse()

Definition at line 63 of file Reverse.h.

---

Member Typedef Documentation

template<typename MatrixType , int Direction>

typedef internal::dense_xpr_base<Reverse>::type Eigen::Reverse< MatrixType, Direction >::Base

Definition at line 68 of file Reverse.h.

template<typename MatrixType , int Direction>

typedef internal::remove_all<MatrixType>::type Eigen::Reverse< MatrixType, Direction >::NestedExpression

Definition at line 70 of file Reverse.h.

template<typename MatrixType , int Direction>

typedef internal::reverse_packet_cond<PacketScalar,ReversePacket> Eigen::Reverse< MatrixType, Direction >::reverse_packet [protected]

Definition at line 85 of file Reverse.h.

---

Member Enumeration Documentation

template<typename MatrixType , int Direction>

anonymous enum [protected]

Enumerator:

PacketSize
IsColMajor
ReverseRow
ReverseCol
OffsetRow
OffsetCol
ReversePacket

Definition at line 74 of file Reverse.h.

         {
      PacketSize = internal::packet_traits<Scalar>::size,
      IsColMajor = !IsRowMajor,
      ReverseRow = (Direction == Vertical)   || (Direction == BothDirections),
      ReverseCol = (Direction == Horizontal) || (Direction == BothDirections),
      OffsetRow  = ReverseRow && IsColMajor ? PacketSize : 1,
      OffsetCol  = ReverseCol && IsRowMajor ? PacketSize : 1,
      ReversePacket = (Direction == BothDirections)
                    || ((Direction == Vertical)   && IsColMajor)
                    || ((Direction == Horizontal) && IsRowMajor)
    };

---

Constructor & Destructor Documentation

template<typename MatrixType , int Direction>

EIGEN_DEVICE_FUNC Eigen::Reverse< MatrixType, Direction >::Reverse

(

const MatrixType &

matrix

)

[inline, explicit]

Definition at line 88 of file Reverse.h.

: m_matrix(matrix) { }

---

Member Function Documentation

template<typename MatrixType , int Direction>

EIGEN_DEVICE_FUNC Index Eigen::Reverse< MatrixType, Direction >::cols

(

void

)

const [inline]

Definition at line 93 of file Reverse.h.

{ return m_matrix.cols(); }

template<typename MatrixType , int Direction>

EIGEN_DEVICE_FUNC Index Eigen::Reverse< MatrixType, Direction >::innerStride

(

)

const [inline]

Definition at line 95 of file Reverse.h.

    {
      return -m_matrix.innerStride();
    }

template<typename MatrixType , int Direction>

EIGEN_DEVICE_FUNC const internal::remove_all<typename MatrixType::Nested>::type& Eigen::Reverse< MatrixType, Direction >::nestedExpression

(

)

const [inline]

Definition at line 101 of file Reverse.h.

    {
      return m_matrix;
    }

template<typename MatrixType , int Direction>

EIGEN_DEVICE_FUNC Index Eigen::Reverse< MatrixType, Direction >::rows

(

void

)

const [inline]

Definition at line 92 of file Reverse.h.

{ return m_matrix.rows(); }

---

Member Data Documentation

template<typename MatrixType , int Direction>

MatrixType::Nested Eigen::Reverse< MatrixType, Direction >::m_matrix [protected]

Definition at line 107 of file Reverse.h.

---

The documentation for this class was generated from the following file:

• Reverse.h
