Eigen::VectorwiseOp< ExpressionType, Direction > Class Template Reference

Pseudo expression providing partial reduction operations. More...

#include <VectorwiseOp.h>

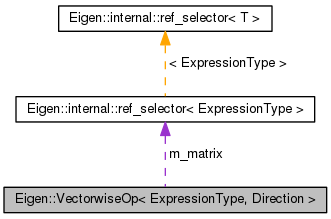

Collaboration diagram for Eigen::VectorwiseOp< ExpressionType, Direction >:
Collaboration graph
[legend]

List of all members.

Classes

struct  ExtendedType
struct  LpNormReturnType
struct  OppositeExtendedType
struct  ReduxReturnType
struct  ReturnType

Public Types

enum  { isVertical = (Direction==Vertical) ? 1 : 0, isHorizontal = (Direction==Horizontal) ? 1 : 0 }
enum  { HNormalized_Size, HNormalized_SizeMinusOne = HNormalized_Size==Dynamic ? Dynamic : HNormalized_Size-1 }
typedef ExpressionType::Scalar Scalar
typedef ExpressionType::RealScalar RealScalar
typedef Eigen::Index Index
typedef internal::ref_selector
< ExpressionType >
::non_const_type 		ExpressionTypeNested
typedef internal::remove_all
< ExpressionTypeNested >::type 		ExpressionTypeNestedCleaned
typedef ReturnType
< internal::member_minCoeff >
::Type 		MinCoeffReturnType
typedef ReturnType
< internal::member_maxCoeff >
::Type 		MaxCoeffReturnType
typedef ReturnType
< internal::member_squaredNorm,
RealScalar >::Type 		SquaredNormReturnType
typedef ReturnType
< internal::member_norm,
RealScalar >::Type 		NormReturnType
typedef ReturnType
< internal::member_blueNorm,
RealScalar >::Type 		BlueNormReturnType
typedef ReturnType
< internal::member_stableNorm,
RealScalar >::Type 		StableNormReturnType
typedef ReturnType
< internal::member_hypotNorm,
RealScalar >::Type 		HypotNormReturnType
typedef ReturnType
< internal::member_sum >::Type 		SumReturnType
typedef ReturnType
< internal::member_mean >
::Type 		MeanReturnType
typedef ReturnType
< internal::member_all >::Type 		AllReturnType
typedef ReturnType
< internal::member_any >::Type 		AnyReturnType
typedef PartialReduxExpr
< ExpressionType,
internal::member_count< Index >
, Direction > 		CountReturnType
typedef ReturnType
< internal::member_prod >
::Type 		ProdReturnType
typedef Reverse
< ExpressionType, Direction > 		ReverseReturnType
typedef Replicate
< ExpressionType,(isVertical?Dynamic:1),(isHorizontal?Dynamic:1)> 		ReplicateReturnType
typedef Homogeneous
< ExpressionType, Direction > 		HomogeneousReturnType
typedef ExpressionType::PlainObject CrossReturnType
typedef Block< const
ExpressionType, Direction==Vertical?int(HNormalized_SizeMinusOne):int(internal::traits
< ExpressionType >
::RowsAtCompileTime),
Direction==Horizontal?int(HNormalized_SizeMinusOne):int(internal::traits
< ExpressionType >
::ColsAtCompileTime)> 		HNormalized_Block
typedef Block< const
ExpressionType, Direction==Vertical?1:int(internal::traits
< ExpressionType >
::RowsAtCompileTime),
Direction==Horizontal?1:int(internal::traits
< ExpressionType >
::ColsAtCompileTime)> 		HNormalized_Factors
typedef CwiseBinaryOp
< internal::scalar_quotient_op
< typename internal::traits
< ExpressionType >::Scalar >
, const HNormalized_Block,
const Replicate
< HNormalized_Factors,
Direction==Vertical?HNormalized_SizeMinusOne:1,
Direction==Horizontal?HNormalized_SizeMinusOne:1 > > 		HNormalizedReturnType

Public Member Functions

EIGEN_DEVICE_FUNC VectorwiseOp (ExpressionType &matrix)
EIGEN_DEVICE_FUNC const
ExpressionType & 		_expression () const
template<typename BinaryOp >
EIGEN_DEVICE_FUNC const
ReduxReturnType< BinaryOp >
::Type 		redux (const BinaryOp &func=BinaryOp()) const
EIGEN_DEVICE_FUNC const
MinCoeffReturnType 		minCoeff () const
EIGEN_DEVICE_FUNC const
MaxCoeffReturnType 		maxCoeff () const
EIGEN_DEVICE_FUNC const
SquaredNormReturnType 		squaredNorm () const
EIGEN_DEVICE_FUNC const
NormReturnType 		norm () const
template<int p>
EIGEN_DEVICE_FUNC const
LpNormReturnType< p >::Type 		lpNorm () const
EIGEN_DEVICE_FUNC const
BlueNormReturnType 		blueNorm () const
EIGEN_DEVICE_FUNC const
StableNormReturnType 		stableNorm () const
EIGEN_DEVICE_FUNC const
HypotNormReturnType 		hypotNorm () const
EIGEN_DEVICE_FUNC const
SumReturnType 		sum () const
EIGEN_DEVICE_FUNC const
MeanReturnType 		mean () const
EIGEN_DEVICE_FUNC const
AllReturnType 		all () const
EIGEN_DEVICE_FUNC const
AnyReturnType 		any () const
EIGEN_DEVICE_FUNC const
CountReturnType 		count () const
EIGEN_DEVICE_FUNC const
ProdReturnType 		prod () const
EIGEN_DEVICE_FUNC const
ReverseReturnType 		reverse () const
EIGEN_DEVICE_FUNC const
ReplicateReturnType 		replicate (Index factor) const
template<int Factor>
const Replicate
< ExpressionType, isVertical
*Factor+isHorizontal,
isHorizontal *Factor+isVertical >
EIGEN_DEVICE_FUNC 		replicate (Index factor=Factor) const
template<typename OtherDerived >
EIGEN_DEVICE_FUNC ExpressionType & operator= (const DenseBase< OtherDerived > &other)
template<typename OtherDerived >
EIGEN_DEVICE_FUNC ExpressionType & operator+= (const DenseBase< OtherDerived > &other)
template<typename OtherDerived >
EIGEN_DEVICE_FUNC ExpressionType & operator-= (const DenseBase< OtherDerived > &other)
template<typename OtherDerived >
EIGEN_DEVICE_FUNC ExpressionType & operator*= (const DenseBase< OtherDerived > &other)
template<typename OtherDerived >
EIGEN_DEVICE_FUNC ExpressionType & operator/= (const DenseBase< OtherDerived > &other)
template<typename OtherDerived >
EIGEN_STRONG_INLINE
EIGEN_DEVICE_FUNC
CwiseBinaryOp
< internal::scalar_sum_op
< Scalar >, const
ExpressionTypeNestedCleaned,
const typename ExtendedType
< OtherDerived >::Type > 		operator+ (const DenseBase< OtherDerived > &other) const
template<typename OtherDerived >
EIGEN_DEVICE_FUNC
CwiseBinaryOp
< internal::scalar_difference_op
< Scalar >, const
ExpressionTypeNestedCleaned,
const typename ExtendedType
< OtherDerived >::Type > 		operator- (const DenseBase< OtherDerived > &other) const
template<typename OtherDerived >
EIGEN_STRONG_INLINE
EIGEN_DEVICE_FUNC
CwiseBinaryOp
< internal::scalar_product_op
< Scalar >, const
ExpressionTypeNestedCleaned,
const typename ExtendedType
< OtherDerived >::Type >
EIGEN_DEVICE_FUNC 		operator* (const DenseBase< OtherDerived > &other) const
template<typename OtherDerived >
EIGEN_DEVICE_FUNC
CwiseBinaryOp
< internal::scalar_quotient_op
< Scalar >, const
ExpressionTypeNestedCleaned,
const typename ExtendedType
< OtherDerived >::Type > 		operator/ (const DenseBase< OtherDerived > &other) const
EIGEN_DEVICE_FUNC
CwiseBinaryOp
< internal::scalar_quotient_op
< Scalar >, const
ExpressionTypeNestedCleaned,
const typename
OppositeExtendedType< typename
ReturnType
< internal::member_norm,
RealScalar >::Type >::Type > 		normalized () const
EIGEN_DEVICE_FUNC void normalize ()
EIGEN_DEVICE_FUNC void reverseInPlace ()
HomogeneousReturnType homogeneous () const
template<typename OtherDerived >
EIGEN_DEVICE_FUNC const
CrossReturnType 		cross (const MatrixBase< OtherDerived > &other) const
const HNormalizedReturnType hnormalized () const

Protected Types

typedef internal::conditional
< isVertical, typename
ExpressionType::ColXpr,
typename
ExpressionType::RowXpr >::type 		SubVector

Protected Member Functions

EIGEN_DEVICE_FUNC SubVector subVector (Index i)
EIGEN_DEVICE_FUNC Index subVectors () const
template<typename OtherDerived >
EIGEN_DEVICE_FUNC ExtendedType
< OtherDerived >::Type 		extendedTo (const DenseBase< OtherDerived > &other) const
template<typename OtherDerived >
EIGEN_DEVICE_FUNC
OppositeExtendedType
< OtherDerived >::Type 		extendedToOpposite (const DenseBase< OtherDerived > &other) const

Protected Attributes

ExpressionTypeNested m_matrix

Detailed Description

template<typename ExpressionType, int Direction>
class Eigen::VectorwiseOp< ExpressionType, Direction >

Pseudo expression providing partial reduction operations.

Template Parameters:
ExpressionTypethe type of the object on which to do partial reductions
Directionindicates the direction of the redux (Vertical or Horizontal)

This class represents a pseudo expression with partial reduction features. It is the return type of DenseBase::colwise() and DenseBase::rowwise() and most of the time this is the only way it is used.

Example:

 Output:


See also:
DenseBase::colwise(), DenseBase::rowwise(), class PartialReduxExpr



Definition at line 156 of file VectorwiseOp.h.


Member Typedef Documentation








template<typename ExpressionType, int Direction>





          typedef ReturnType<internal::member_all>::Type Eigen::VectorwiseOp< ExpressionType, Direction >::AllReturnType










Definition at line 283 of file VectorwiseOp.h.













template<typename ExpressionType, int Direction>





          typedef ReturnType<internal::member_any>::Type Eigen::VectorwiseOp< ExpressionType, Direction >::AnyReturnType










Definition at line 284 of file VectorwiseOp.h.













template<typename ExpressionType, int Direction>





          typedef ReturnType<internal::member_blueNorm,RealScalar>::Type Eigen::VectorwiseOp< ExpressionType, Direction >::BlueNormReturnType










Definition at line 278 of file VectorwiseOp.h.













template<typename ExpressionType, int Direction>





          typedef PartialReduxExpr<ExpressionType, internal::member_count<Index>, Direction> Eigen::VectorwiseOp< ExpressionType, Direction >::CountReturnType










Definition at line 285 of file VectorwiseOp.h.













template<typename ExpressionType, int Direction>





          typedef ExpressionType::PlainObject Eigen::VectorwiseOp< ExpressionType, Direction >::CrossReturnType










Definition at line 621 of file VectorwiseOp.h.













template<typename ExpressionType, int Direction>





          typedef internal::ref_selector<ExpressionType>::non_const_type Eigen::VectorwiseOp< ExpressionType, Direction >::ExpressionTypeNested










Definition at line 163 of file VectorwiseOp.h.













template<typename ExpressionType, int Direction>





          typedef internal::remove_all<ExpressionTypeNested>::type Eigen::VectorwiseOp< ExpressionType, Direction >::ExpressionTypeNestedCleaned










Definition at line 164 of file VectorwiseOp.h.













template<typename ExpressionType, int Direction>





          typedef Block<const ExpressionType, Direction==Vertical ? int(HNormalized_SizeMinusOne) : int(internal::traits<ExpressionType>::RowsAtCompileTime), Direction==Horizontal ? int(HNormalized_SizeMinusOne) : int(internal::traits<ExpressionType>::ColsAtCompileTime)> Eigen::VectorwiseOp< ExpressionType, Direction >::HNormalized_Block










Definition at line 636 of file VectorwiseOp.h.













template<typename ExpressionType, int Direction>





          typedef Block<const ExpressionType, Direction==Vertical ? 1 : int(internal::traits<ExpressionType>::RowsAtCompileTime), Direction==Horizontal ? 1 : int(internal::traits<ExpressionType>::ColsAtCompileTime)> Eigen::VectorwiseOp< ExpressionType, Direction >::HNormalized_Factors










Definition at line 640 of file VectorwiseOp.h.













template<typename ExpressionType, int Direction>





          typedef CwiseBinaryOp<internal::scalar_quotient_op<typename internal::traits<ExpressionType>::Scalar>, const HNormalized_Block, const Replicate<HNormalized_Factors, Direction==Vertical ? HNormalized_SizeMinusOne : 1, Direction==Horizontal ? HNormalized_SizeMinusOne : 1> > Eigen::VectorwiseOp< ExpressionType, Direction >::HNormalizedReturnType










Definition at line 646 of file VectorwiseOp.h.













template<typename ExpressionType, int Direction>





          typedef Homogeneous<ExpressionType,Direction> Eigen::VectorwiseOp< ExpressionType, Direction >::HomogeneousReturnType










Definition at line 618 of file VectorwiseOp.h.













template<typename ExpressionType, int Direction>





          typedef ReturnType<internal::member_hypotNorm,RealScalar>::Type Eigen::VectorwiseOp< ExpressionType, Direction >::HypotNormReturnType










Definition at line 280 of file VectorwiseOp.h.













template<typename ExpressionType, int Direction>





          typedef Eigen::Index Eigen::VectorwiseOp< ExpressionType, Direction >::Index









Deprecated:
since Eigen 3.3



Definition at line 162 of file VectorwiseOp.h.













template<typename ExpressionType, int Direction>





          typedef ReturnType<internal::member_maxCoeff>::Type Eigen::VectorwiseOp< ExpressionType, Direction >::MaxCoeffReturnType










Definition at line 275 of file VectorwiseOp.h.













template<typename ExpressionType, int Direction>





          typedef ReturnType<internal::member_mean>::Type Eigen::VectorwiseOp< ExpressionType, Direction >::MeanReturnType










Definition at line 282 of file VectorwiseOp.h.













template<typename ExpressionType, int Direction>





          typedef ReturnType<internal::member_minCoeff>::Type Eigen::VectorwiseOp< ExpressionType, Direction >::MinCoeffReturnType










Definition at line 274 of file VectorwiseOp.h.













template<typename ExpressionType, int Direction>





          typedef ReturnType<internal::member_norm,RealScalar>::Type Eigen::VectorwiseOp< ExpressionType, Direction >::NormReturnType










Definition at line 277 of file VectorwiseOp.h.













template<typename ExpressionType, int Direction>





          typedef ReturnType<internal::member_prod>::Type Eigen::VectorwiseOp< ExpressionType, Direction >::ProdReturnType










Definition at line 286 of file VectorwiseOp.h.













template<typename ExpressionType, int Direction>





          typedef ExpressionType::RealScalar Eigen::VectorwiseOp< ExpressionType, Direction >::RealScalar










Definition at line 161 of file VectorwiseOp.h.













template<typename ExpressionType, int Direction>





          typedef Replicate<ExpressionType,(isVertical?Dynamic:1),(isHorizontal?Dynamic:1)> Eigen::VectorwiseOp< ExpressionType, Direction >::ReplicateReturnType










Definition at line 462 of file VectorwiseOp.h.













template<typename ExpressionType, int Direction>





          typedef Reverse<ExpressionType, Direction> Eigen::VectorwiseOp< ExpressionType, Direction >::ReverseReturnType










Definition at line 287 of file VectorwiseOp.h.













template<typename ExpressionType, int Direction>





          typedef ExpressionType::Scalar Eigen::VectorwiseOp< ExpressionType, Direction >::Scalar










Definition at line 160 of file VectorwiseOp.h.













template<typename ExpressionType, int Direction>





          typedef ReturnType<internal::member_squaredNorm,RealScalar>::Type Eigen::VectorwiseOp< ExpressionType, Direction >::SquaredNormReturnType










Definition at line 276 of file VectorwiseOp.h.













template<typename ExpressionType, int Direction>





          typedef ReturnType<internal::member_stableNorm,RealScalar>::Type Eigen::VectorwiseOp< ExpressionType, Direction >::StableNormReturnType










Definition at line 279 of file VectorwiseOp.h.













template<typename ExpressionType, int Direction>





          typedef internal::conditional<isVertical, typename ExpressionType::ColXpr, typename ExpressionType::RowXpr>::type Eigen::VectorwiseOp< ExpressionType, Direction >::SubVector [protected]










Definition at line 192 of file VectorwiseOp.h.













template<typename ExpressionType, int Direction>





          typedef ReturnType<internal::member_sum>::Type Eigen::VectorwiseOp< ExpressionType, Direction >::SumReturnType










Definition at line 281 of file VectorwiseOp.h.







Member Enumeration Documentation








template<typename ExpressionType, int Direction>





          anonymous enum









Enumerator:


isVertical



isHorizontal










Definition at line 183 of file VectorwiseOp.h.


         {
      isVertical   = (Direction==Vertical) ? 1 : 0,
      isHorizontal = (Direction==Horizontal) ? 1 : 0
    };













template<typename ExpressionType, int Direction>





          anonymous enum









Enumerator:


HNormalized_Size



HNormalized_SizeMinusOne










Definition at line 626 of file VectorwiseOp.h.


         {
      HNormalized_Size = Direction==Vertical ? internal::traits<ExpressionType>::RowsAtCompileTime
                                             : internal::traits<ExpressionType>::ColsAtCompileTime,
      HNormalized_SizeMinusOne = HNormalized_Size==Dynamic ? Dynamic : HNormalized_Size-1
    };







Constructor & Destructor Documentation








template<typename ExpressionType, int Direction>





          EIGEN_DEVICE_FUNC Eigen::VectorwiseOp< ExpressionType, Direction >::VectorwiseOp
          (
          ExpressionType &
          matrix)
           [inline, explicit]










Definition at line 255 of file VectorwiseOp.h.


: m_matrix(matrix) {}







Member Function Documentation








template<typename ExpressionType, int Direction>





          EIGEN_DEVICE_FUNC const ExpressionType& Eigen::VectorwiseOp< ExpressionType, Direction >::_expression
          (
          )
           const [inline]










Definition at line 259 of file VectorwiseOp.h.


{ return m_matrix; }













template<typename ExpressionType, int Direction>





          EIGEN_DEVICE_FUNC const AllReturnType Eigen::VectorwiseOp< ExpressionType, Direction >::all
          (
          )
           const [inline]









Returns:
a row (or column) vector expression representing whether all coefficients of each respective column (or row) are true. This expression can be assigned to a vector with entries of type bool.


See also:
DenseBase::all()



Definition at line 414 of file VectorwiseOp.h.


    { return AllReturnType(_expression()); }













template<typename ExpressionType, int Direction>





          EIGEN_DEVICE_FUNC const AnyReturnType Eigen::VectorwiseOp< ExpressionType, Direction >::any
          (
          )
           const [inline]









Returns:
a row (or column) vector expression representing whether at least one coefficient of each respective column (or row) is true. This expression can be assigned to a vector with entries of type bool.


See also:
DenseBase::any()



Definition at line 423 of file VectorwiseOp.h.


    { return AnyReturnType(_expression()); }













template<typename ExpressionType, int Direction>





          EIGEN_DEVICE_FUNC const BlueNormReturnType Eigen::VectorwiseOp< ExpressionType, Direction >::blueNorm
          (
          )
           const [inline]









Returns:
a row (or column) vector expression of the norm of each column (or row) of the referenced expression, using Blue's algorithm. This is a vector with real entries, even if the original matrix has complex entries.


See also:
DenseBase::blueNorm()



Definition at line 364 of file VectorwiseOp.h.


    { return BlueNormReturnType(_expression()); }













template<typename ExpressionType, int Direction>





          EIGEN_DEVICE_FUNC const CountReturnType Eigen::VectorwiseOp< ExpressionType, Direction >::count
          (
          )
           const [inline]









Returns:
a row (or column) vector expression representing the number of true coefficients of each respective column (or row). This expression can be assigned to a vector whose entries have the same type as is used to index entries of the original matrix; for dense matrices, this is std::ptrdiff_t .


Example:


 Output:


See also:
DenseBase::count()



Definition at line 436 of file VectorwiseOp.h.


    { return CountReturnType(_expression()); }













template<typename ExpressionType, int Direction>



template<typename OtherDerived >





          EIGEN_DEVICE_FUNC ExtendedType<OtherDerived>::Type Eigen::VectorwiseOp< ExpressionType, Direction >::extendedTo
          (
          const DenseBase< OtherDerived > &
          other)
           const [inline, protected]









Replicates a vector to match the size of *this



Definition at line 218 of file VectorwiseOp.h.


    {
      EIGEN_STATIC_ASSERT(EIGEN_IMPLIES(isVertical, OtherDerived::MaxColsAtCompileTime==1),
                          YOU_PASSED_A_ROW_VECTOR_BUT_A_COLUMN_VECTOR_WAS_EXPECTED)
      EIGEN_STATIC_ASSERT(EIGEN_IMPLIES(isHorizontal, OtherDerived::MaxRowsAtCompileTime==1),
                          YOU_PASSED_A_COLUMN_VECTOR_BUT_A_ROW_VECTOR_WAS_EXPECTED)
      return typename ExtendedType<OtherDerived>::Type
                      (other.derived(),
                       isVertical   ? 1 : m_matrix.rows(),
                       isHorizontal ? 1 : m_matrix.cols());
    }













template<typename ExpressionType, int Direction>



template<typename OtherDerived >





          EIGEN_DEVICE_FUNC OppositeExtendedType<OtherDerived>::Type Eigen::VectorwiseOp< ExpressionType, Direction >::extendedToOpposite
          (
          const DenseBase< OtherDerived > &
          other)
           const [inline, protected]









Replicates a vector in the opposite direction to match the size of *this



Definition at line 241 of file VectorwiseOp.h.


    {
      EIGEN_STATIC_ASSERT(EIGEN_IMPLIES(isHorizontal, OtherDerived::MaxColsAtCompileTime==1),
                          YOU_PASSED_A_ROW_VECTOR_BUT_A_COLUMN_VECTOR_WAS_EXPECTED)
      EIGEN_STATIC_ASSERT(EIGEN_IMPLIES(isVertical, OtherDerived::MaxRowsAtCompileTime==1),
                          YOU_PASSED_A_COLUMN_VECTOR_BUT_A_ROW_VECTOR_WAS_EXPECTED)
      return typename OppositeExtendedType<OtherDerived>::Type
                      (other.derived(),
                       isHorizontal  ? 1 : m_matrix.rows(),
                       isVertical    ? 1 : m_matrix.cols());
    }













template<typename ExpressionType, int Direction>





          EIGEN_DEVICE_FUNC const HypotNormReturnType Eigen::VectorwiseOp< ExpressionType, Direction >::hypotNorm
          (
          )
           const [inline]









Returns:
a row (or column) vector expression of the norm of each column (or row) of the referenced expression, avoiding underflow and overflow using a concatenation of hypot() calls. This is a vector with real entries, even if the original matrix has complex entries.


See also:
DenseBase::hypotNorm()



Definition at line 386 of file VectorwiseOp.h.


    { return HypotNormReturnType(_expression()); }













template<typename ExpressionType, int Direction>



template<int p>





          EIGEN_DEVICE_FUNC const LpNormReturnType<p>::Type Eigen::VectorwiseOp< ExpressionType, Direction >::lpNorm
          (
          )
           const [inline]









Returns:
a row (or column) vector expression of the norm of each column (or row) of the referenced expression. This is a vector with real entries, even if the original matrix has complex entries.


Example:


 Output:


See also:
DenseBase::norm()



Definition at line 353 of file VectorwiseOp.h.


    { return typename LpNormReturnType<p>::Type(_expression()); }













template<typename ExpressionType, int Direction>





          EIGEN_DEVICE_FUNC const MaxCoeffReturnType Eigen::VectorwiseOp< ExpressionType, Direction >::maxCoeff
          (
          )
           const [inline]









Returns:
a row (or column) vector expression of the largest coefficient of each column (or row) of the referenced expression.


Warning:
the result is undefined if *this contains NaN.


Example:


 Output:


See also:
DenseBase::maxCoeff()



Definition at line 316 of file VectorwiseOp.h.


    { return MaxCoeffReturnType(_expression()); }













template<typename ExpressionType, int Direction>





          EIGEN_DEVICE_FUNC const MeanReturnType Eigen::VectorwiseOp< ExpressionType, Direction >::mean
          (
          )
           const [inline]









Returns:
a row (or column) vector expression of the mean of each column (or row) of the referenced expression.


See also:
DenseBase::mean()



Definition at line 405 of file VectorwiseOp.h.


    { return MeanReturnType(_expression()); }













template<typename ExpressionType, int Direction>





          EIGEN_DEVICE_FUNC const MinCoeffReturnType Eigen::VectorwiseOp< ExpressionType, Direction >::minCoeff
          (
          )
           const [inline]









Returns:
a row (or column) vector expression of the smallest coefficient of each column (or row) of the referenced expression.


Warning:
the result is undefined if *this contains NaN.


Example:


 Output:


See also:
DenseBase::minCoeff()



Definition at line 303 of file VectorwiseOp.h.


    { return MinCoeffReturnType(_expression()); }













template<typename ExpressionType, int Direction>





          EIGEN_DEVICE_FUNC const NormReturnType Eigen::VectorwiseOp< ExpressionType, Direction >::norm
          (
          )
           const [inline]









Returns:
a row (or column) vector expression of the norm of each column (or row) of the referenced expression. This is a vector with real entries, even if the original matrix has complex entries.


Example:


 Output:


See also:
DenseBase::norm()



Definition at line 340 of file VectorwiseOp.h.


    { return NormReturnType(_expression()); }













template<typename ExpressionType, int Direction>





          EIGEN_DEVICE_FUNC void Eigen::VectorwiseOp< ExpressionType, Direction >::normalize
          (
          )
           [inline]









Normalize in-place each row or columns of the referenced matrix.


See also:
MatrixBase::normalize(), normalized()



Definition at line 610 of file VectorwiseOp.h.


                                       {
      m_matrix = this->normalized();
    }













template<typename ExpressionType, int Direction>





          EIGEN_DEVICE_FUNC CwiseBinaryOp<internal::scalar_quotient_op<Scalar>, const ExpressionTypeNestedCleaned, const typename OppositeExtendedType<typename ReturnType<internal::member_norm,RealScalar>::Type>::Type> Eigen::VectorwiseOp< ExpressionType, Direction >::normalized
          (
          )
           const [inline]









Returns:
an expression where each column of row of the referenced matrix are normalized. The referenced matrix is not modified.


See also:
MatrixBase::normalized(), normalize()



Definition at line 604 of file VectorwiseOp.h.


{ return m_matrix.cwiseQuotient(extendedToOpposite(this->norm())); }













template<typename ExpressionType, int Direction>



template<typename OtherDerived >





          EIGEN_STRONG_INLINE EIGEN_DEVICE_FUNC CwiseBinaryOp<internal::scalar_product_op<Scalar>, const ExpressionTypeNestedCleaned, const typename ExtendedType<OtherDerived>::Type> EIGEN_DEVICE_FUNC Eigen::VectorwiseOp< ExpressionType, Direction >::operator*
          (
          const DenseBase< OtherDerived > &
          other)
           const [inline]









Returns the expression where each subvector is the product of the vector other by the corresponding subvector of *this



Definition at line 573 of file VectorwiseOp.h.


    {
      EIGEN_STATIC_ASSERT_VECTOR_ONLY(OtherDerived)
      EIGEN_STATIC_ASSERT_ARRAYXPR(ExpressionType)
      EIGEN_STATIC_ASSERT_SAME_XPR_KIND(ExpressionType, OtherDerived)
      return m_matrix * extendedTo(other.derived());
    }













template<typename ExpressionType, int Direction>



template<typename OtherDerived >





          EIGEN_DEVICE_FUNC ExpressionType& Eigen::VectorwiseOp< ExpressionType, Direction >::operator*=
          (
          const DenseBase< OtherDerived > &
          other)
           [inline]









Multiples each subvector of *this by the vector other



Definition at line 520 of file VectorwiseOp.h.


    {
      EIGEN_STATIC_ASSERT_VECTOR_ONLY(OtherDerived)
      EIGEN_STATIC_ASSERT_ARRAYXPR(ExpressionType)
      EIGEN_STATIC_ASSERT_SAME_XPR_KIND(ExpressionType, OtherDerived)
      m_matrix *= extendedTo(other.derived());
      return const_cast<ExpressionType&>(m_matrix);
    }













template<typename ExpressionType, int Direction>



template<typename OtherDerived >





          EIGEN_STRONG_INLINE EIGEN_DEVICE_FUNC CwiseBinaryOp<internal::scalar_sum_op<Scalar>, const ExpressionTypeNestedCleaned, const typename ExtendedType<OtherDerived>::Type> Eigen::VectorwiseOp< ExpressionType, Direction >::operator+
          (
          const DenseBase< OtherDerived > &
          other)
           const [inline]









Returns the expression of the sum of the vector other to each subvector of *this



Definition at line 546 of file VectorwiseOp.h.


    {
      EIGEN_STATIC_ASSERT_VECTOR_ONLY(OtherDerived)
      EIGEN_STATIC_ASSERT_SAME_XPR_KIND(ExpressionType, OtherDerived)
      return m_matrix + extendedTo(other.derived());
    }













template<typename ExpressionType, int Direction>



template<typename OtherDerived >





          EIGEN_DEVICE_FUNC ExpressionType& Eigen::VectorwiseOp< ExpressionType, Direction >::operator+=
          (
          const DenseBase< OtherDerived > &
          other)
           [inline]









Adds the vector other to each subvector of *this



Definition at line 500 of file VectorwiseOp.h.


    {
      EIGEN_STATIC_ASSERT_VECTOR_ONLY(OtherDerived)
      EIGEN_STATIC_ASSERT_SAME_XPR_KIND(ExpressionType, OtherDerived)
      return const_cast<ExpressionType&>(m_matrix += extendedTo(other.derived()));
    }













template<typename ExpressionType, int Direction>



template<typename OtherDerived >





          EIGEN_DEVICE_FUNC CwiseBinaryOp<internal::scalar_difference_op<Scalar>, const ExpressionTypeNestedCleaned, const typename ExtendedType<OtherDerived>::Type> Eigen::VectorwiseOp< ExpressionType, Direction >::operator-
          (
          const DenseBase< OtherDerived > &
          other)
           const [inline]









Returns the expression of the difference between each subvector of *this and the vector other



Definition at line 559 of file VectorwiseOp.h.


    {
      EIGEN_STATIC_ASSERT_VECTOR_ONLY(OtherDerived)
      EIGEN_STATIC_ASSERT_SAME_XPR_KIND(ExpressionType, OtherDerived)
      return m_matrix - extendedTo(other.derived());
    }













template<typename ExpressionType, int Direction>



template<typename OtherDerived >





          EIGEN_DEVICE_FUNC ExpressionType& Eigen::VectorwiseOp< ExpressionType, Direction >::operator-=
          (
          const DenseBase< OtherDerived > &
          other)
           [inline]









Substracts the vector other to each subvector of *this



Definition at line 510 of file VectorwiseOp.h.


    {
      EIGEN_STATIC_ASSERT_VECTOR_ONLY(OtherDerived)
      EIGEN_STATIC_ASSERT_SAME_XPR_KIND(ExpressionType, OtherDerived)
      return const_cast<ExpressionType&>(m_matrix -= extendedTo(other.derived()));
    }













template<typename ExpressionType, int Direction>



template<typename OtherDerived >





          EIGEN_DEVICE_FUNC CwiseBinaryOp<internal::scalar_quotient_op<Scalar>, const ExpressionTypeNestedCleaned, const typename ExtendedType<OtherDerived>::Type> Eigen::VectorwiseOp< ExpressionType, Direction >::operator/
          (
          const DenseBase< OtherDerived > &
          other)
           const [inline]









Returns the expression where each subvector is the quotient of the corresponding subvector of *this by the vector other



Definition at line 588 of file VectorwiseOp.h.


    {
      EIGEN_STATIC_ASSERT_VECTOR_ONLY(OtherDerived)
      EIGEN_STATIC_ASSERT_ARRAYXPR(ExpressionType)
      EIGEN_STATIC_ASSERT_SAME_XPR_KIND(ExpressionType, OtherDerived)
      return m_matrix / extendedTo(other.derived());
    }













template<typename ExpressionType, int Direction>



template<typename OtherDerived >





          EIGEN_DEVICE_FUNC ExpressionType& Eigen::VectorwiseOp< ExpressionType, Direction >::operator/=
          (
          const DenseBase< OtherDerived > &
          other)
           [inline]









Divides each subvector of *this by the vector other



Definition at line 532 of file VectorwiseOp.h.


    {
      EIGEN_STATIC_ASSERT_VECTOR_ONLY(OtherDerived)
      EIGEN_STATIC_ASSERT_ARRAYXPR(ExpressionType)
      EIGEN_STATIC_ASSERT_SAME_XPR_KIND(ExpressionType, OtherDerived)
      m_matrix /= extendedTo(other.derived());
      return const_cast<ExpressionType&>(m_matrix);
    }













template<typename ExpressionType, int Direction>



template<typename OtherDerived >





          EIGEN_DEVICE_FUNC ExpressionType& Eigen::VectorwiseOp< ExpressionType, Direction >::operator=
          (
          const DenseBase< OtherDerived > &
          other)
           [inline]









Copies the vector other to each subvector of *this



Definition at line 489 of file VectorwiseOp.h.


    {
      EIGEN_STATIC_ASSERT_VECTOR_ONLY(OtherDerived)
      EIGEN_STATIC_ASSERT_SAME_XPR_KIND(ExpressionType, OtherDerived)
      //eigen_assert((m_matrix.isNull()) == (other.isNull())); FIXME
      return const_cast<ExpressionType&>(m_matrix = extendedTo(other.derived()));
    }













template<typename ExpressionType, int Direction>





          EIGEN_DEVICE_FUNC const ProdReturnType Eigen::VectorwiseOp< ExpressionType, Direction >::prod
          (
          )
           const [inline]









Returns:
a row (or column) vector expression of the product of each column (or row) of the referenced expression.


Example:


 Output:


See also:
DenseBase::prod()



Definition at line 447 of file VectorwiseOp.h.


    { return ProdReturnType(_expression()); }













template<typename ExpressionType, int Direction>



template<typename BinaryOp >





          EIGEN_DEVICE_FUNC const ReduxReturnType<BinaryOp>::Type Eigen::VectorwiseOp< ExpressionType, Direction >::redux
          (
          const BinaryOp &
          func = BinaryOp())
           const [inline]









Returns:
a row or column vector expression of *this reduxed by func


The template parameter BinaryOp is the type of the functor of the custom redux operator. Note that func must be an associative operator.


See also:
class VectorwiseOp, DenseBase::colwise(), DenseBase::rowwise()



Definition at line 271 of file VectorwiseOp.h.


    { return typename ReduxReturnType<BinaryOp>::Type(_expression(), internal::member_redux<BinaryOp,Scalar>(func)); }













template<typename ExpressionType , int Direction>





          const VectorwiseOp< ExpressionType, Direction >::ReplicateReturnType Eigen::VectorwiseOp< ExpressionType, Direction >::replicate
          (
          Index
          factor)
           const









Returns:
an expression of the replication of each column (or row) of *this


Example:


 Output:


See also:
VectorwiseOp::replicate(), DenseBase::replicate(), class Replicate



Definition at line 134 of file Replicate.h.


{
  return typename VectorwiseOp<ExpressionType,Direction>::ReplicateReturnType
          (_expression(),Direction==Vertical?factor:1,Direction==Horizontal?factor:1);
}













template<typename ExpressionType, int Direction>



template<int Factor>





          const Replicate<ExpressionType,isVertical*Factor+isHorizontal,isHorizontal*Factor+isVertical> EIGEN_DEVICE_FUNC Eigen::VectorwiseOp< ExpressionType, Direction >::replicate
          (
          Index
          factor = Factor)
           const [inline]









Returns:
an expression of the replication of each column (or row) of *this


Example:


 Output:


See also:
VectorwiseOp::replicate(Index), DenseBase::replicate(), class Replicate



Definition at line 478 of file VectorwiseOp.h.


    {
      return Replicate<ExpressionType,(isVertical?Factor:1),(isHorizontal?Factor:1)>
          (_expression(),isVertical?factor:1,isHorizontal?factor:1);
    }













template<typename ExpressionType, int Direction>





          EIGEN_DEVICE_FUNC const ReverseReturnType Eigen::VectorwiseOp< ExpressionType, Direction >::reverse
          (
          )
           const [inline]









Returns:
a matrix expression where each column (or row) are reversed.


Example:


 Output:


See also:
DenseBase::reverse()



Definition at line 459 of file VectorwiseOp.h.


    { return ReverseReturnType( _expression() ); }













template<typename ExpressionType , int Direction>





          void Eigen::VectorwiseOp< ExpressionType, Direction >::reverseInPlace
          (
          )
           [inline]









This is the "in place" version of VectorwiseOp::reverse: it reverses each column or row of *this.


In most cases it is probably better to simply use the reversed expression of a matrix. However, when reversing the matrix data itself is really needed, then this "in-place" version is probably the right choice because it provides the following additional benefits:




  • less error prone: doing the same operation with .reverse() requires special care:
     m = m.reverse().eval();

    •

  • this API enables reverse operations without the need for a temporary
    •



See also:
DenseBase::reverseInPlace(), reverse()



Definition at line 204 of file Reverse.h.


{
  internal::vectorwise_reverse_inplace_impl<Direction>::run(_expression().const_cast_derived());
}













template<typename ExpressionType, int Direction>





          EIGEN_DEVICE_FUNC const SquaredNormReturnType Eigen::VectorwiseOp< ExpressionType, Direction >::squaredNorm
          (
          )
           const [inline]









Returns:
a row (or column) vector expression of the squared norm of each column (or row) of the referenced expression. This is a vector with real entries, even if the original matrix has complex entries.


Example:


 Output:


See also:
DenseBase::squaredNorm()



Definition at line 328 of file VectorwiseOp.h.


    { return SquaredNormReturnType(_expression()); }













template<typename ExpressionType, int Direction>





          EIGEN_DEVICE_FUNC const StableNormReturnType Eigen::VectorwiseOp< ExpressionType, Direction >::stableNorm
          (
          )
           const [inline]









Returns:
a row (or column) vector expression of the norm of each column (or row) of the referenced expression, avoiding underflow and overflow. This is a vector with real entries, even if the original matrix has complex entries.


See also:
DenseBase::stableNorm()



Definition at line 375 of file VectorwiseOp.h.


    { return StableNormReturnType(_expression()); }













template<typename ExpressionType, int Direction>





          EIGEN_DEVICE_FUNC SubVector Eigen::VectorwiseOp< ExpressionType, Direction >::subVector
          (
          Index
          i)
           [inline, protected]









Returns:
the i-th subvector according to the Direction



Definition at line 196 of file VectorwiseOp.h.


    {
      return SubVector(m_matrix.derived(),i);
    }













template<typename ExpressionType, int Direction>





          EIGEN_DEVICE_FUNC Index Eigen::VectorwiseOp< ExpressionType, Direction >::subVectors
          (
          )
           const [inline, protected]









Returns:
the number of subvectors in the direction Direction



Definition at line 204 of file VectorwiseOp.h.


    { return isVertical?m_matrix.cols():m_matrix.rows(); }













template<typename ExpressionType, int Direction>





          EIGEN_DEVICE_FUNC const SumReturnType Eigen::VectorwiseOp< ExpressionType, Direction >::sum
          (
          )
           const [inline]









Returns:
a row (or column) vector expression of the sum of each column (or row) of the referenced expression.


Example:


 Output:


See also:
DenseBase::sum()



Definition at line 397 of file VectorwiseOp.h.


    { return SumReturnType(_expression()); }







Member Data Documentation








template<typename ExpressionType, int Direction>





          ExpressionTypeNested Eigen::VectorwiseOp< ExpressionType, Direction >::m_matrix [protected]










Definition at line 651 of file VectorwiseOp.h.







The documentation for this class was generated from the following files:







 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
