Eigen::internal::TridiagonalMatrix< Scalar, Size, Options > Class Template Reference

Represents a tridiagonal matrix with a compact banded storage. More...

#include <BandMatrix.h>

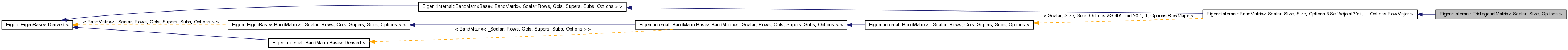

Inheritance diagram for Eigen::internal::TridiagonalMatrix< Scalar, Size, Options >:

Collaboration diagram for Eigen::internal::TridiagonalMatrix< Scalar, Size, Options >:

List of all members.

Public Member Functions
	TridiagonalMatrix (Index size=Size)
Base::template DiagonalIntReturnType < 1 >::Type	super ()
const Base::template DiagonalIntReturnType < 1 >::Type	super () const
Base::template DiagonalIntReturnType <-1 >::Type	sub ()
const Base::template DiagonalIntReturnType <-1 >::Type	sub () const
Private Types
typedef BandMatrix< Scalar, Size, Size, Options &SelfAdjoint?0:1, 1, Options|RowMajor >	Base
typedef Base::StorageIndex	StorageIndex

---

Detailed Description

template<typename Scalar, int Size, int Options>
class Eigen::internal::TridiagonalMatrix< Scalar, Size, Options >

Represents a tridiagonal matrix with a compact banded storage.

Template Parameters:

Scalar	Numeric type, i.e. float, double, int
Size	Number of rows and cols, or Dynamic
Options	Can be 0 or SelfAdjoint

See also:

class BandMatrix

Definition at line 312 of file BandMatrix.h.

---

Member Typedef Documentation

template<typename Scalar , int Size, int Options>

typedef BandMatrix<Scalar,Size,Size,Options&SelfAdjoint?0:1,1,Options|RowMajor> Eigen::internal::TridiagonalMatrix< Scalar, Size, Options >::Base [private]

Reimplemented from Eigen::internal::BandMatrixBase< Derived >.

Definition at line 314 of file BandMatrix.h.

template<typename Scalar , int Size, int Options>

typedef Base::StorageIndex Eigen::internal::TridiagonalMatrix< Scalar, Size, Options >::StorageIndex [private]

Reimplemented from Eigen::internal::BandMatrix< Scalar, Size, Size, Options &SelfAdjoint?0:1, 1, Options|RowMajor >.

Definition at line 315 of file BandMatrix.h.

---

Constructor & Destructor Documentation

template<typename Scalar , int Size, int Options>

Eigen::internal::TridiagonalMatrix< Scalar, Size, Options >::TridiagonalMatrix

(

Index

size = Size

)

[inline, explicit]

Definition at line 317 of file BandMatrix.h.

: Base(size,size,Options&SelfAdjoint?0:1,1) {}

---

Member Function Documentation

template<typename Scalar , int Size, int Options>

Base::template DiagonalIntReturnType<-1>::Type Eigen::internal::TridiagonalMatrix< Scalar, Size, Options >::sub

(

)

[inline]

Definition at line 323 of file BandMatrix.h.

    { return Base::template diagonal<-1>(); }

template<typename Scalar , int Size, int Options>

const Base::template DiagonalIntReturnType<-1>::Type Eigen::internal::TridiagonalMatrix< Scalar, Size, Options >::sub

(

)

const [inline]

Definition at line 325 of file BandMatrix.h.

    { return Base::template diagonal<-1>(); }

template<typename Scalar , int Size, int Options>

Base::template DiagonalIntReturnType<1>::Type Eigen::internal::TridiagonalMatrix< Scalar, Size, Options >::super

(

)

[inline]

Definition at line 319 of file BandMatrix.h.

    { return Base::template diagonal<1>(); }

template<typename Scalar , int Size, int Options>

const Base::template DiagonalIntReturnType<1>::Type Eigen::internal::TridiagonalMatrix< Scalar, Size, Options >::super

(

)

const [inline]

Definition at line 321 of file BandMatrix.h.

    { return Base::template diagonal<1>(); }

---

The documentation for this class was generated from the following file:

• BandMatrix.h
