The base class for the direct Cholesky factorization of Cholmod. More...

#include <CholmodSupport.h>

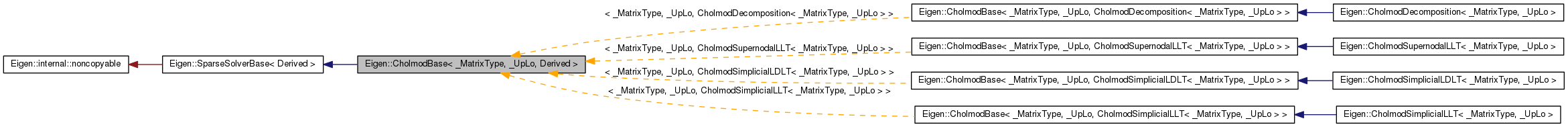

Inheritance diagram for Eigen::CholmodBase< _MatrixType, _UpLo, Derived >:

Collaboration diagram for Eigen::CholmodBase< _MatrixType, _UpLo, Derived >:

Public Types
enum	{ UpLo = _UpLo }
enum	{ ColsAtCompileTime = MatrixType::ColsAtCompileTime, MaxColsAtCompileTime = MatrixType::MaxColsAtCompileTime }
typedef _MatrixType	MatrixType
typedef MatrixType::Scalar	Scalar
typedef MatrixType::RealScalar	RealScalar
typedef MatrixType	CholMatrixType
typedef MatrixType::StorageIndex	StorageIndex
Public Member Functions
	CholmodBase ()
	CholmodBase (const MatrixType &matrix)
	~CholmodBase ()
StorageIndex	cols () const
StorageIndex	rows () const
ComputationInfo	info () const
	Reports whether previous computation was successful.
Derived &	compute (const MatrixType &matrix)
void	analyzePattern (const MatrixType &matrix)
void	factorize (const MatrixType &matrix)
cholmod_common &	cholmod ()
template<typename Rhs , typename Dest >
void	_solve_impl (const MatrixBase< Rhs > &b, MatrixBase< Dest > &dest) const
template<typename RhsScalar , int RhsOptions, typename RhsIndex , typename DestScalar , int DestOptions, typename DestIndex >
void	_solve_impl (const SparseMatrix< RhsScalar, RhsOptions, RhsIndex > &b, SparseMatrix< DestScalar, DestOptions, DestIndex > &dest) const
Derived &	setShift (const RealScalar &offset)
Scalar	determinant () const
Scalar	logDeterminant () const
template<typename Stream >
void	dumpMemory (Stream &)
Protected Types
typedef SparseSolverBase< Derived >	Base
Protected Attributes
cholmod_common	m_cholmod
cholmod_factor *	m_cholmodFactor
RealScalar	m_shiftOffset [2]
ComputationInfo	m_info
int	m_factorizationIsOk
int	m_analysisIsOk

Detailed Description

template<typename _MatrixType, int _UpLo, typename Derived>
class Eigen::CholmodBase< _MatrixType, _UpLo, Derived >

The base class for the direct Cholesky factorization of Cholmod.

See also:: class CholmodSupernodalLLT, class CholmodSimplicialLDLT, class CholmodSimplicialLLT

Definition at line 160 of file CholmodSupport.h.

Member Typedef Documentation

template<typename _MatrixType, int _UpLo, typename Derived>

typedef SparseSolverBase<Derived> Eigen::CholmodBase< _MatrixType, _UpLo, Derived >::Base [protected]

Reimplemented in Eigen::CholmodDecomposition< _MatrixType, _UpLo >, Eigen::CholmodSupernodalLLT< _MatrixType, _UpLo >, Eigen::CholmodSimplicialLDLT< _MatrixType, _UpLo >, and Eigen::CholmodSimplicialLLT< _MatrixType, _UpLo >.

Definition at line 163 of file CholmodSupport.h.

template<typename _MatrixType, int _UpLo, typename Derived>

typedef MatrixType Eigen::CholmodBase< _MatrixType, _UpLo, Derived >::CholMatrixType

Definition at line 171 of file CholmodSupport.h.

template<typename _MatrixType, int _UpLo, typename Derived>

typedef _MatrixType Eigen::CholmodBase< _MatrixType, _UpLo, Derived >::MatrixType

Reimplemented in Eigen::CholmodDecomposition< _MatrixType, _UpLo >, Eigen::CholmodSupernodalLLT< _MatrixType, _UpLo >, Eigen::CholmodSimplicialLDLT< _MatrixType, _UpLo >, and Eigen::CholmodSimplicialLLT< _MatrixType, _UpLo >.

Definition at line 167 of file CholmodSupport.h.

template<typename _MatrixType, int _UpLo, typename Derived>

typedef MatrixType::RealScalar Eigen::CholmodBase< _MatrixType, _UpLo, Derived >::RealScalar

Definition at line 170 of file CholmodSupport.h.

template<typename _MatrixType, int _UpLo, typename Derived>

typedef MatrixType::Scalar Eigen::CholmodBase< _MatrixType, _UpLo, Derived >::Scalar

Definition at line 169 of file CholmodSupport.h.

template<typename _MatrixType, int _UpLo, typename Derived>

typedef MatrixType::StorageIndex Eigen::CholmodBase< _MatrixType, _UpLo, Derived >::StorageIndex

Definition at line 172 of file CholmodSupport.h.

Member Enumeration Documentation

template<typename _MatrixType, int _UpLo, typename Derived>

anonymous enum

Enumerator:

UpLo

Definition at line 168 of file CholmodSupport.h.

{ UpLo = _UpLo };

template<typename _MatrixType, int _UpLo, typename Derived>

anonymous enum

Enumerator:

ColsAtCompileTime
MaxColsAtCompileTime

Definition at line 173 of file CholmodSupport.h.

         {
      ColsAtCompileTime = MatrixType::ColsAtCompileTime,
      MaxColsAtCompileTime = MatrixType::MaxColsAtCompileTime
    };

Constructor & Destructor Documentation

template<typename _MatrixType, int _UpLo, typename Derived>

Eigen::CholmodBase< _MatrixType, _UpLo, Derived >::CholmodBase ( ) [inline]

Definition at line 180 of file CholmodSupport.h.

      : m_cholmodFactor(0), m_info(Success), m_factorizationIsOk(false), m_analysisIsOk(false)
    {
      m_shiftOffset[0] = m_shiftOffset[1] = RealScalar(0.0);
      cholmod_start(&m_cholmod);
    }

template<typename _MatrixType, int _UpLo, typename Derived>

Eigen::CholmodBase< _MatrixType, _UpLo, Derived >::CholmodBase ( const MatrixType & matrix ) [inline, explicit]

Definition at line 187 of file CholmodSupport.h.

      : m_cholmodFactor(0), m_info(Success), m_factorizationIsOk(false), m_analysisIsOk(false)
    {
      m_shiftOffset[0] = m_shiftOffset[1] = RealScalar(0.0);
      cholmod_start(&m_cholmod);
      compute(matrix);
    }

template<typename _MatrixType, int _UpLo, typename Derived>

Eigen::CholmodBase< _MatrixType, _UpLo, Derived >::~CholmodBase ( ) [inline]

Definition at line 195 of file CholmodSupport.h.

    {
      if(m_cholmodFactor)
        cholmod_free_factor(&m_cholmodFactor, &m_cholmod);
      cholmod_finish(&m_cholmod);
    }

Member Function Documentation

template<typename _MatrixType, int _UpLo, typename Derived>

template<typename Rhs , typename Dest >

void Eigen::CholmodBase< _MatrixType, _UpLo, Derived >::_solve_impl	(	const MatrixBase< Rhs > &	b,
		MatrixBase< Dest > &	dest
	)		const `[inline]`

Definition at line 270 of file CholmodSupport.h.

    {
      eigen_assert(m_factorizationIsOk && "The decomposition is not in a valid state for solving, you must first call either compute() or symbolic()/numeric()");
      const Index size = m_cholmodFactor->n;
      EIGEN_UNUSED_VARIABLE(size);
      eigen_assert(size==b.rows());

      // Cholmod needs column-major stoarge without inner-stride, which corresponds to the default behavior of Ref.
      Ref<const Matrix<typename Rhs::Scalar,Dynamic,Dynamic,ColMajor> > b_ref(b.derived());

      cholmod_dense b_cd = viewAsCholmod(b_ref);
      cholmod_dense* x_cd = cholmod_solve(CHOLMOD_A, m_cholmodFactor, &b_cd, &m_cholmod);
      if(!x_cd)
      {
        this->m_info = NumericalIssue;
        return;
      }
      // TODO optimize this copy by swapping when possible (be careful with alignment, etc.)
      dest = Matrix<Scalar,Dest::RowsAtCompileTime,Dest::ColsAtCompileTime>::Map(reinterpret_cast<Scalar*>(x_cd->x),b.rows(),b.cols());
      cholmod_free_dense(&x_cd, &m_cholmod);
    }

template<typename _MatrixType, int _UpLo, typename Derived>

template<typename RhsScalar , int RhsOptions, typename RhsIndex , typename DestScalar , int DestOptions, typename DestIndex >

void Eigen::CholmodBase< _MatrixType, _UpLo, Derived >::_solve_impl	(	const SparseMatrix< RhsScalar, RhsOptions, RhsIndex > &	b,
		SparseMatrix< DestScalar, DestOptions, DestIndex > &	dest
	)		const `[inline]`

Definition at line 294 of file CholmodSupport.h.

    {
      eigen_assert(m_factorizationIsOk && "The decomposition is not in a valid state for solving, you must first call either compute() or symbolic()/numeric()");
      const Index size = m_cholmodFactor->n;
      EIGEN_UNUSED_VARIABLE(size);
      eigen_assert(size==b.rows());

      // note: cs stands for Cholmod Sparse
      cholmod_sparse b_cs = viewAsCholmod(b);
      cholmod_sparse* x_cs = cholmod_spsolve(CHOLMOD_A, m_cholmodFactor, &b_cs, &m_cholmod);
      if(!x_cs)
      {
        this->m_info = NumericalIssue;
        return;
      }
      // TODO optimize this copy by swapping when possible (be careful with alignment, etc.)
      dest = viewAsEigen<DestScalar,DestOptions,DestIndex>(*x_cs);
      cholmod_free_sparse(&x_cs, &m_cholmod);
    }

template<typename _MatrixType, int _UpLo, typename Derived>

void Eigen::CholmodBase< _MatrixType, _UpLo, Derived >::analyzePattern ( const MatrixType & matrix ) [inline]

Performs a symbolic decomposition on the sparsity pattern of matrix.

This function is particularly useful when solving for several problems having the same structure.

See also:: factorize()

Definition at line 230 of file CholmodSupport.h.

    {
      if(m_cholmodFactor)
      {
        cholmod_free_factor(&m_cholmodFactor, &m_cholmod);
        m_cholmodFactor = 0;
      }
      cholmod_sparse A = viewAsCholmod(matrix.template selfadjointView<UpLo>());
      m_cholmodFactor = cholmod_analyze(&A, &m_cholmod);

      this->m_isInitialized = true;
      this->m_info = Success;
      m_analysisIsOk = true;
      m_factorizationIsOk = false;
    }

template<typename _MatrixType, int _UpLo, typename Derived>

cholmod_common& Eigen::CholmodBase< _MatrixType, _UpLo, Derived >::cholmod ( ) [inline]

Returns a reference to the Cholmod's configuration structure to get a full control over the performed operations. See the Cholmod user guide for details.

Definition at line 265 of file CholmodSupport.h.

{ return m_cholmod; }

template<typename _MatrixType, int _UpLo, typename Derived>

StorageIndex Eigen::CholmodBase< _MatrixType, _UpLo, Derived >::cols ( ) const [inline]

Definition at line 202 of file CholmodSupport.h.

{ return internal::convert_index<StorageIndex, Index>(m_cholmodFactor->n); }

template<typename _MatrixType, int _UpLo, typename Derived>

Derived& Eigen::CholmodBase< _MatrixType, _UpLo, Derived >::compute ( const MatrixType & matrix ) [inline]

Computes the sparse Cholesky decomposition of matrix

Definition at line 217 of file CholmodSupport.h.

    {
      analyzePattern(matrix);
      factorize(matrix);
      return derived();
    }

template<typename _MatrixType, int _UpLo, typename Derived>

Scalar Eigen::CholmodBase< _MatrixType, _UpLo, Derived >::determinant ( ) const [inline]

Returns:: the determinant of the underlying matrix from the current factorization

Definition at line 332 of file CholmodSupport.h.

    {
      using std::exp;
      return exp(logDeterminant());
    }

template<typename _MatrixType, int _UpLo, typename Derived>

template<typename Stream >

void Eigen::CholmodBase< _MatrixType, _UpLo, Derived >::dumpMemory ( Stream & ) [inline]

Definition at line 383 of file CholmodSupport.h.

{}

template<typename _MatrixType, int _UpLo, typename Derived>

void Eigen::CholmodBase< _MatrixType, _UpLo, Derived >::factorize ( const MatrixType & matrix ) [inline]

Performs a numeric decomposition of matrix

The given matrix must have the same sparsity pattern as the matrix on which the symbolic decomposition has been performed.

See also:: analyzePattern()

Definition at line 252 of file CholmodSupport.h.

    {
      eigen_assert(m_analysisIsOk && "You must first call analyzePattern()");
      cholmod_sparse A = viewAsCholmod(matrix.template selfadjointView<UpLo>());
      cholmod_factorize_p(&A, m_shiftOffset, 0, 0, m_cholmodFactor, &m_cholmod);

      // If the factorization failed, minor is the column at which it did. On success minor == n.
      this->m_info = (m_cholmodFactor->minor == m_cholmodFactor->n ? Success : NumericalIssue);
      m_factorizationIsOk = true;
    }

template<typename _MatrixType, int _UpLo, typename Derived>

ComputationInfo Eigen::CholmodBase< _MatrixType, _UpLo, Derived >::info ( ) const [inline]

Reports whether previous computation was successful.

Returns:: Success if computation was succesful, NumericalIssue if the matrix.appears to be negative.

Definition at line 210 of file CholmodSupport.h.

    {
      eigen_assert(m_isInitialized && "Decomposition is not initialized.");
      return m_info;
    }

template<typename _MatrixType, int _UpLo, typename Derived>

Scalar Eigen::CholmodBase< _MatrixType, _UpLo, Derived >::logDeterminant ( ) const [inline]

Returns:: the log determinant of the underlying matrix from the current factorization

Definition at line 339 of file CholmodSupport.h.

    {
      using std::log;
      using numext::real;
      eigen_assert(m_factorizationIsOk && "The decomposition is not in a valid state for solving, you must first call either compute() or symbolic()/numeric()");

      RealScalar logDet = 0;
      Scalar *x = static_cast<Scalar*>(m_cholmodFactor->x);
      if (m_cholmodFactor->is_super)
      {
        // Supernodal factorization stored as a packed list of dense column-major blocs,
        // as described by the following structure:

        // super[k] == index of the first column of the j-th super node
        StorageIndex *super = static_cast<StorageIndex*>(m_cholmodFactor->super);
        // pi[k] == offset to the description of row indices
        StorageIndex *pi = static_cast<StorageIndex*>(m_cholmodFactor->pi);
        // px[k] == offset to the respective dense block
        StorageIndex *px = static_cast<StorageIndex*>(m_cholmodFactor->px);

        Index nb_super_nodes = m_cholmodFactor->nsuper;
        for (Index k=0; k < nb_super_nodes; ++k)
        {
          StorageIndex ncols = super[k + 1] - super[k];
          StorageIndex nrows = pi[k + 1] - pi[k];

          Map<const Array<Scalar,1,Dynamic>, 0, InnerStride<> > sk(x + px[k], ncols, InnerStride<>(nrows+1));
          logDet += sk.real().log().sum();
        }
      }
      else
      {
        // Simplicial factorization stored as standard CSC matrix.
        StorageIndex *p = static_cast<StorageIndex*>(m_cholmodFactor->p);
        Index size = m_cholmodFactor->n;
        for (Index k=0; k<size; ++k)
          logDet += log(real( x[p[k]] ));
      }
      if (m_cholmodFactor->is_ll)
        logDet *= 2.0;
      return logDet;
    };

template<typename _MatrixType, int _UpLo, typename Derived>

StorageIndex Eigen::CholmodBase< _MatrixType, _UpLo, Derived >::rows ( ) const [inline]

Definition at line 203 of file CholmodSupport.h.

{ return internal::convert_index<StorageIndex, Index>(m_cholmodFactor->n); }

template<typename _MatrixType, int _UpLo, typename Derived>

Derived& Eigen::CholmodBase< _MatrixType, _UpLo, Derived >::setShift ( const RealScalar & offset ) [inline]

Sets the shift parameter that will be used to adjust the diagonal coefficients during the numerical factorization.

During the numerical factorization, an offset term is added to the diagonal coefficients:
d_ii = offset + d_ii

The default is offset=0.

Returns:: a reference to *this.

Definition at line 325 of file CholmodSupport.h.

    {
      m_shiftOffset[0] = offset;
      return derived();
    }

Member Data Documentation

template<typename _MatrixType, int _UpLo, typename Derived>

int Eigen::CholmodBase< _MatrixType, _UpLo, Derived >::m_analysisIsOk [protected]

Definition at line 392 of file CholmodSupport.h.

template<typename _MatrixType, int _UpLo, typename Derived>

cholmod_common Eigen::CholmodBase< _MatrixType, _UpLo, Derived >::m_cholmod [mutable, protected]

Definition at line 387 of file CholmodSupport.h.

template<typename _MatrixType, int _UpLo, typename Derived>

cholmod_factor* Eigen::CholmodBase< _MatrixType, _UpLo, Derived >::m_cholmodFactor [protected]

Definition at line 388 of file CholmodSupport.h.

template<typename _MatrixType, int _UpLo, typename Derived>

int Eigen::CholmodBase< _MatrixType, _UpLo, Derived >::m_factorizationIsOk [protected]

Definition at line 391 of file CholmodSupport.h.

template<typename _MatrixType, int _UpLo, typename Derived>

ComputationInfo Eigen::CholmodBase< _MatrixType, _UpLo, Derived >::m_info [mutable, protected]

Definition at line 390 of file CholmodSupport.h.

template<typename _MatrixType, int _UpLo, typename Derived>

RealScalar Eigen::CholmodBase< _MatrixType, _UpLo, Derived >::m_shiftOffset[2] [protected]

Definition at line 389 of file CholmodSupport.h.

The documentation for this class was generated from the following file:

CholmodSupport.h

Public Types

Public Member Functions

Protected Types

Protected Attributes

Detailed Description

template<typename _MatrixType, int _UpLo, typename Derived> class Eigen::CholmodBase< _MatrixType, _UpLo, Derived >

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<typename _MatrixType, int _UpLo, typename Derived>
class Eigen::CholmodBase< _MatrixType, _UpLo, Derived >
