A versatible sparse matrix representation. More...

#include <SparseMatrix.h>

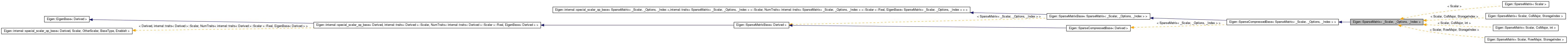

Inheritance diagram for Eigen::SparseMatrix< _Scalar, _Options, _Index >:

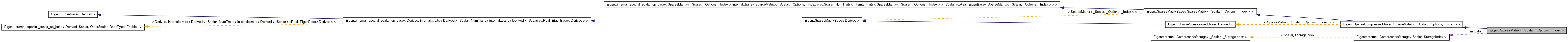

Collaboration diagram for Eigen::SparseMatrix< _Scalar, _Options, _Index >:

Classes
struct	default_prunning_func
class	SingletonVector
Public Types
enum	{ Options = _Options }
typedef MappedSparseMatrix < Scalar, Flags >	Map
typedef Diagonal< SparseMatrix >	DiagonalReturnType
typedef Diagonal< const SparseMatrix >	ConstDiagonalReturnType
typedef Base::InnerIterator	InnerIterator
typedef Base::ReverseInnerIterator	ReverseInnerIterator
typedef internal::CompressedStorage < Scalar, StorageIndex >	Storage
typedef Base::IndexVector	IndexVector
typedef Base::ScalarVector	ScalarVector
Public Member Functions
Index	rows () const
Index	cols () const
Index	innerSize () const
Index	outerSize () const
const Scalar *	valuePtr () const
Scalar *	valuePtr ()
const StorageIndex *	innerIndexPtr () const
StorageIndex *	innerIndexPtr ()
const StorageIndex *	outerIndexPtr () const
StorageIndex *	outerIndexPtr ()
const StorageIndex *	innerNonZeroPtr () const
StorageIndex *	innerNonZeroPtr ()
Storage &	data ()
const Storage &	data () const
Scalar	coeff (Index row, Index col) const
Scalar &	coeffRef (Index row, Index col)
Scalar &	insert (Index row, Index col)
void	setZero ()
void	reserve (Index reserveSize)
template<class SizesType >
void	reserve (const SizesType &reserveSizes, const typename SizesType::value_type &enableif=typename SizesType::value_type())
Scalar &	insertBack (Index row, Index col)
Scalar &	insertBackByOuterInner (Index outer, Index inner)
Scalar &	insertBackByOuterInnerUnordered (Index outer, Index inner)
void	startVec (Index outer)
void	finalize ()
template<typename InputIterators >
void	setFromTriplets (const InputIterators &begin, const InputIterators &end)
template<typename InputIterators , typename DupFunctor >
void	setFromTriplets (const InputIterators &begin, const InputIterators &end, DupFunctor dup_func)
void	sumupDuplicates ()
template<typename DupFunctor >
void	collapseDuplicates (DupFunctor dup_func=DupFunctor())
Scalar &	insertByOuterInner (Index j, Index i)
void	makeCompressed ()
void	uncompress ()
void	prune (const Scalar &reference, const RealScalar &epsilon=NumTraits< RealScalar >::dummy_precision())
template<typename KeepFunc >
void	prune (const KeepFunc &keep=KeepFunc())
void	conservativeResize (Index rows, Index cols)
void	resize (Index rows, Index cols)
void	resizeNonZeros (Index size)
const ConstDiagonalReturnType	diagonal () const
DiagonalReturnType	diagonal ()
	SparseMatrix ()
	SparseMatrix (Index rows, Index cols)
template<typename OtherDerived >
	SparseMatrix (const SparseMatrixBase< OtherDerived > &other)
template<typename OtherDerived , unsigned int UpLo>
	SparseMatrix (const SparseSelfAdjointView< OtherDerived, UpLo > &other)
	SparseMatrix (const SparseMatrix &other)
template<typename OtherDerived >
	SparseMatrix (const ReturnByValue< OtherDerived > &other)
	Copy constructor with in-place evaluation.
template<typename OtherDerived >
	SparseMatrix (const DiagonalBase< OtherDerived > &other)
	Copy constructor with in-place evaluation.
void	swap (SparseMatrix &other)
void	setIdentity ()
SparseMatrix &	operator= (const SparseMatrix &other)
template<typename OtherDerived >
SparseMatrix &	operator= (const EigenBase< OtherDerived > &other)
template<typename OtherDerived >
EIGEN_DONT_INLINE SparseMatrix &	operator= (const SparseMatrixBase< OtherDerived > &other)
	~SparseMatrix ()
Scalar	sum () const
EIGEN_STRONG_INLINE Scalar &	insertBackUncompressed (Index row, Index col)
Protected Types
typedef SparseMatrix< Scalar,(Flags &~RowMajorBit)\|(IsRowMajor?RowMajorBit:0)>	TransposedSparseMatrix
Protected Member Functions
template<class SizesType >
void	reserveInnerVectors (const SizesType &reserveSizes)
template<typename Other >
void	initAssignment (const Other &other)
EIGEN_DONT_INLINE Scalar &	insertCompressed (Index row, Index col)
EIGEN_DONT_INLINE Scalar &	insertUncompressed (Index row, Index col)
Protected Attributes
Index	m_outerSize
Index	m_innerSize
StorageIndex *	m_outerIndex
StorageIndex *	m_innerNonZeros
Storage	m_data
Private Types
typedef SparseCompressedBase < SparseMatrix >	Base
Static Private Member Functions
static void	check_template_parameters ()
Friends
std::ostream &	operator<< (std::ostream &s, const SparseMatrix &m)

Detailed Description

template<typename _Scalar, int _Options, typename _Index>
class Eigen::SparseMatrix< _Scalar, _Options, _Index >

A versatible sparse matrix representation.

This class implements a more versatile variants of the common compressed row/column storage format. Each colmun's (resp. row) non zeros are stored as a pair of value with associated row (resp. colmiun) index. All the non zeros are stored in a single large buffer. Unlike the compressed format, there might be extra space inbetween the nonzeros of two successive colmuns (resp. rows) such that insertion of new non-zero can be done with limited memory reallocation and copies.

A call to the function makeCompressed() turns the matrix into the standard compressed format compatible with many library.

More details on this storage sceheme are given in the manual pages.

Template Parameters:

_Scalar	the scalar type, i.e. the type of the coefficients
_Options	Union of bit flags controlling the storage scheme. Currently the only possibility is ColMajor or RowMajor. The default is 0 which means column-major.
_Index	the type of the indices. It has to be a signed type (e.g., short, int, std::ptrdiff_t). Default is `int`.

This class can be extended with the help of the plugin mechanism described on the page TopicCustomizingEigen by defining the preprocessor symbol EIGEN_SPARSEMATRIX_PLUGIN.

Definition at line 92 of file SparseMatrix.h.

Member Typedef Documentation

template<typename _Scalar, int _Options, typename _Index>

typedef SparseCompressedBase<SparseMatrix> Eigen::SparseMatrix< _Scalar, _Options, _Index >::Base [private]

Reimplemented from Eigen::SparseCompressedBase< SparseMatrix< _Scalar, _Options, _Index > >.

Definition at line 95 of file SparseMatrix.h.

template<typename _Scalar, int _Options, typename _Index>

typedef Diagonal<const SparseMatrix> Eigen::SparseMatrix< _Scalar, _Options, _Index >::ConstDiagonalReturnType

Definition at line 106 of file SparseMatrix.h.

template<typename _Scalar, int _Options, typename _Index>

typedef Diagonal<SparseMatrix> Eigen::SparseMatrix< _Scalar, _Options, _Index >::DiagonalReturnType

Definition at line 105 of file SparseMatrix.h.

template<typename _Scalar, int _Options, typename _Index>

typedef Base::IndexVector Eigen::SparseMatrix< _Scalar, _Options, _Index >::IndexVector

Reimplemented from Eigen::SparseCompressedBase< SparseMatrix< _Scalar, _Options, _Index > >.

Definition at line 117 of file SparseMatrix.h.

template<typename _Scalar, int _Options, typename _Index>

typedef Base::InnerIterator Eigen::SparseMatrix< _Scalar, _Options, _Index >::InnerIterator

Definition at line 107 of file SparseMatrix.h.

template<typename _Scalar, int _Options, typename _Index>

typedef MappedSparseMatrix<Scalar,Flags> Eigen::SparseMatrix< _Scalar, _Options, _Index >::Map

Definition at line 104 of file SparseMatrix.h.

template<typename _Scalar, int _Options, typename _Index>

typedef Base::ReverseInnerIterator Eigen::SparseMatrix< _Scalar, _Options, _Index >::ReverseInnerIterator

Definition at line 108 of file SparseMatrix.h.

template<typename _Scalar, int _Options, typename _Index>

typedef Base::ScalarVector Eigen::SparseMatrix< _Scalar, _Options, _Index >::ScalarVector

Reimplemented from Eigen::SparseMatrixBase< SparseMatrix< _Scalar, _Options, _Index > >.

Definition at line 118 of file SparseMatrix.h.

template<typename _Scalar, int _Options, typename _Index>

typedef internal::CompressedStorage<Scalar,StorageIndex> Eigen::SparseMatrix< _Scalar, _Options, _Index >::Storage

Definition at line 112 of file SparseMatrix.h.

template<typename _Scalar, int _Options, typename _Index>

typedef SparseMatrix<Scalar,(Flags&~RowMajorBit)|(IsRowMajor?RowMajorBit:0)> Eigen::SparseMatrix< _Scalar, _Options, _Index >::TransposedSparseMatrix [protected]

Definition at line 120 of file SparseMatrix.h.

Member Enumeration Documentation

template<typename _Scalar, int _Options, typename _Index>

anonymous enum

Enumerator:

Options

Definition at line 113 of file SparseMatrix.h.

         {
      Options = _Options
    };

Constructor & Destructor Documentation

template<typename _Scalar, int _Options, typename _Index>

Eigen::SparseMatrix< _Scalar, _Options, _Index >::SparseMatrix ( ) [inline]

Default constructor yielding an empty 0 x 0 matrix

Definition at line 654 of file SparseMatrix.h.

      : m_outerSize(-1), m_innerSize(0), m_outerIndex(0), m_innerNonZeros(0)
    {
      check_template_parameters();
      resize(0, 0);
    }

template<typename _Scalar, int _Options, typename _Index>

Eigen::SparseMatrix< _Scalar, _Options, _Index >::SparseMatrix	(	Index	rows,
		Index	cols
	)		`[inline]`

Constructs a rows x cols empty matrix

Definition at line 662 of file SparseMatrix.h.

      : m_outerSize(0), m_innerSize(0), m_outerIndex(0), m_innerNonZeros(0)
    {
      check_template_parameters();
      resize(rows, cols);
    }

template<typename _Scalar, int _Options, typename _Index>

template<typename OtherDerived >

Eigen::SparseMatrix< _Scalar, _Options, _Index >::SparseMatrix ( const SparseMatrixBase< OtherDerived > & other ) [inline]

Constructs a sparse matrix from the sparse expression other

Definition at line 671 of file SparseMatrix.h.

      : m_outerSize(0), m_innerSize(0), m_outerIndex(0), m_innerNonZeros(0)
    {
      EIGEN_STATIC_ASSERT((internal::is_same<Scalar, typename OtherDerived::Scalar>::value),
        YOU_MIXED_DIFFERENT_NUMERIC_TYPES__YOU_NEED_TO_USE_THE_CAST_METHOD_OF_MATRIXBASE_TO_CAST_NUMERIC_TYPES_EXPLICITLY)
      check_template_parameters();
      const bool needToTranspose = (Flags & RowMajorBit) != (internal::evaluator<OtherDerived>::Flags & RowMajorBit);
      if (needToTranspose)
        *this = other.derived();
      else
      {
        #ifdef EIGEN_SPARSE_CREATE_TEMPORARY_PLUGIN
          EIGEN_SPARSE_CREATE_TEMPORARY_PLUGIN
        #endif
        internal::call_assignment_no_alias(*this, other.derived());
      }
    }

template<typename _Scalar, int _Options, typename _Index>

template<typename OtherDerived , unsigned int UpLo>

Eigen::SparseMatrix< _Scalar, _Options, _Index >::SparseMatrix ( const SparseSelfAdjointView< OtherDerived, UpLo > & other ) [inline]

Constructs a sparse matrix from the sparse selfadjoint view other

Definition at line 691 of file SparseMatrix.h.

      : m_outerSize(0), m_innerSize(0), m_outerIndex(0), m_innerNonZeros(0)
    {
      check_template_parameters();
      Base::operator=(other);
    }

template<typename _Scalar, int _Options, typename _Index>

Eigen::SparseMatrix< _Scalar, _Options, _Index >::SparseMatrix ( const SparseMatrix< _Scalar, _Options, _Index > & other ) [inline]

Copy constructor (it performs a deep copy)

Definition at line 699 of file SparseMatrix.h.

      : Base(), m_outerSize(0), m_innerSize(0), m_outerIndex(0), m_innerNonZeros(0)
    {
      check_template_parameters();
      *this = other.derived();
    }

template<typename _Scalar, int _Options, typename _Index>

template<typename OtherDerived >

Eigen::SparseMatrix< _Scalar, _Options, _Index >::SparseMatrix ( const ReturnByValue< OtherDerived > & other ) [inline]

Copy constructor with in-place evaluation.

Definition at line 708 of file SparseMatrix.h.

      : Base(), m_outerSize(0), m_innerSize(0), m_outerIndex(0), m_innerNonZeros(0)
    {
      check_template_parameters();
      initAssignment(other);
      other.evalTo(*this);
    }

template<typename _Scalar, int _Options, typename _Index>

template<typename OtherDerived >

Eigen::SparseMatrix< _Scalar, _Options, _Index >::SparseMatrix ( const DiagonalBase< OtherDerived > & other ) [inline, explicit]

Copy constructor with in-place evaluation.

Definition at line 718 of file SparseMatrix.h.

      : Base(), m_outerSize(0), m_innerSize(0), m_outerIndex(0), m_innerNonZeros(0)
    {
      check_template_parameters();
      *this = other.derived();
    }

template<typename _Scalar, int _Options, typename _Index>

Eigen::SparseMatrix< _Scalar, _Options, _Index >::~SparseMatrix ( ) [inline]

Destructor

Definition at line 821 of file SparseMatrix.h.

    {
      std::free(m_outerIndex);
      std::free(m_innerNonZeros);
    }

Member Function Documentation

template<typename _Scalar, int _Options, typename _Index>

static void Eigen::SparseMatrix< _Scalar, _Options, _Index >::check_template_parameters ( ) [inline, static, private]

Definition at line 887 of file SparseMatrix.h.

  {
    EIGEN_STATIC_ASSERT(NumTraits<StorageIndex>::IsSigned,THE_INDEX_TYPE_MUST_BE_A_SIGNED_TYPE);
    EIGEN_STATIC_ASSERT((Options&(ColMajor|RowMajor))==Options,INVALID_MATRIX_TEMPLATE_PARAMETERS);
  }

template<typename _Scalar, int _Options, typename _Index>

Scalar Eigen::SparseMatrix< _Scalar, _Options, _Index >::coeff	(	Index	row,
		Index	col
	)		const `[inline]`

Returns:: the value of the matrix at position i, j This function returns Scalar(0) if the element is an explicit zero

Definition at line 183 of file SparseMatrix.h.

    {
      eigen_assert(row>=0 && row<rows() && col>=0 && col<cols());

      const Index outer = IsRowMajor ? row : col;
      const Index inner = IsRowMajor ? col : row;
      Index end = m_innerNonZeros ? m_outerIndex[outer] + m_innerNonZeros[outer] : m_outerIndex[outer+1];
      return m_data.atInRange(m_outerIndex[outer], end, StorageIndex(inner));
    }

template<typename _Scalar, int _Options, typename _Index>

Scalar& Eigen::SparseMatrix< _Scalar, _Options, _Index >::coeffRef	(	Index	row,
		Index	col
	)		`[inline]`

Returns:: a non-const reference to the value of the matrix at position i, j

If the element does not exist then it is inserted via the insert(Index,Index) function which itself turns the matrix into a non compressed form if that was not the case.

This is a O(log(nnz_j)) operation (binary search) plus the cost of insert(Index,Index) function if the element does not already exist.

Definition at line 201 of file SparseMatrix.h.

    {
      eigen_assert(row>=0 && row<rows() && col>=0 && col<cols());

      const Index outer = IsRowMajor ? row : col;
      const Index inner = IsRowMajor ? col : row;

      Index start = m_outerIndex[outer];
      Index end = m_innerNonZeros ? m_outerIndex[outer] + m_innerNonZeros[outer] : m_outerIndex[outer+1];
      eigen_assert(end>=start && "you probably called coeffRef on a non finalized matrix");
      if(end<=start)
        return insert(row,col);
      const Index p = m_data.searchLowerIndex(start,end-1,StorageIndex(inner));
      if((p<end) && (m_data.index(p)==inner))
        return m_data.value(p);
      else
        return insert(row,col);
    }

template<typename Scalar , int _Options, typename _Index >

template<typename DupFunctor >

void Eigen::SparseMatrix< Scalar, _Options, _Index >::collapseDuplicates ( DupFunctor dup_func = DupFunctor() )

Definition at line 1004 of file SparseMatrix.h.

{
  eigen_assert(!isCompressed());
  // TODO, in practice we should be able to use m_innerNonZeros for that task
  IndexVector wi(innerSize());
  wi.fill(-1);
  StorageIndex count = 0;
  // for each inner-vector, wi[inner_index] will hold the position of first element into the index/value buffers
  for(Index j=0; j<outerSize(); ++j)
  {
    StorageIndex start   = count;
    Index oldEnd  = m_outerIndex[j]+m_innerNonZeros[j];
    for(Index k=m_outerIndex[j]; k<oldEnd; ++k)
    {
      Index i = m_data.index(k);
      if(wi(i)>=start)
      {
        // we already meet this entry => accumulate it
        m_data.value(wi(i)) = dup_func(m_data.value(wi(i)), m_data.value(k));
      }
      else
      {
        m_data.value(count) = m_data.value(k);
        m_data.index(count) = m_data.index(k);
        wi(i) = count;
        ++count;
      }
    }
    m_outerIndex[j] = start;
  }
  m_outerIndex[m_outerSize] = count;

  // turn the matrix into compressed form
  std::free(m_innerNonZeros);
  m_innerNonZeros = 0;
  m_data.resize(m_outerIndex[m_outerSize]);
}

template<typename _Scalar, int _Options, typename _Index>

Index Eigen::SparseMatrix< _Scalar, _Options, _Index >::cols ( void ) const [inline]

Returns:: the number of columns of the matrix

Reimplemented from Eigen::SparseMatrixBase< SparseMatrix< _Scalar, _Options, _Index > >.

Definition at line 133 of file SparseMatrix.h.

{ return IsRowMajor ? m_innerSize : m_outerSize; }

template<typename _Scalar, int _Options, typename _Index>

void Eigen::SparseMatrix< _Scalar, _Options, _Index >::conservativeResize	(	Index	rows,
		Index	cols
	)		`[inline]`

Resizes the matrix to a rows x cols matrix leaving old values untouched.

If the sizes of the matrix are decreased, then the matrix is turned to uncompressed-mode and the storage of the out of bounds coefficients is kept and reserved. Call makeCompressed() to pack the entries and squeeze extra memory.

See also:: reserve(), setZero(), makeCompressed()

Definition at line 548 of file SparseMatrix.h.

    {
      // No change
      if (this->rows() == rows && this->cols() == cols) return;

      // If one dimension is null, then there is nothing to be preserved
      if(rows==0 || cols==0) return resize(rows,cols);

      Index innerChange = IsRowMajor ? cols - this->cols() : rows - this->rows();
      Index outerChange = IsRowMajor ? rows - this->rows() : cols - this->cols();
      StorageIndex newInnerSize = convert_index(IsRowMajor ? cols : rows);

      // Deals with inner non zeros
      if (m_innerNonZeros)
      {
        // Resize m_innerNonZeros
        StorageIndex *newInnerNonZeros = static_cast<StorageIndex*>(std::realloc(m_innerNonZeros, (m_outerSize + outerChange) * sizeof(StorageIndex)));
        if (!newInnerNonZeros) internal::throw_std_bad_alloc();
        m_innerNonZeros = newInnerNonZeros;

        for(Index i=m_outerSize; i<m_outerSize+outerChange; i++)
          m_innerNonZeros[i] = 0;
      }
      else if (innerChange < 0)
      {
        // Inner size decreased: allocate a new m_innerNonZeros
        m_innerNonZeros = static_cast<StorageIndex*>(std::malloc((m_outerSize+outerChange+1) * sizeof(StorageIndex)));
        if (!m_innerNonZeros) internal::throw_std_bad_alloc();
        for(Index i = 0; i < m_outerSize; i++)
          m_innerNonZeros[i] = m_outerIndex[i+1] - m_outerIndex[i];
      }

      // Change the m_innerNonZeros in case of a decrease of inner size
      if (m_innerNonZeros && innerChange < 0)
      {
        for(Index i = 0; i < m_outerSize + (std::min)(outerChange, Index(0)); i++)
        {
          StorageIndex &n = m_innerNonZeros[i];
          StorageIndex start = m_outerIndex[i];
          while (n > 0 && m_data.index(start+n-1) >= newInnerSize) --n;
        }
      }

      m_innerSize = newInnerSize;

      // Re-allocate outer index structure if necessary
      if (outerChange == 0)
        return;

      StorageIndex *newOuterIndex = static_cast<StorageIndex*>(std::realloc(m_outerIndex, (m_outerSize + outerChange + 1) * sizeof(StorageIndex)));
      if (!newOuterIndex) internal::throw_std_bad_alloc();
      m_outerIndex = newOuterIndex;
      if (outerChange > 0)
      {
        StorageIndex last = m_outerSize == 0 ? 0 : m_outerIndex[m_outerSize];
        for(Index i=m_outerSize; i<m_outerSize+outerChange+1; i++)
          m_outerIndex[i] = last;
      }
      m_outerSize += outerChange;
    }

template<typename _Scalar, int _Options, typename _Index>

Storage& Eigen::SparseMatrix< _Scalar, _Options, _Index >::data ( ) [inline]

Definition at line 177 of file SparseMatrix.h.

{ return m_data; }

template<typename _Scalar, int _Options, typename _Index>

const Storage& Eigen::SparseMatrix< _Scalar, _Options, _Index >::data ( ) const [inline]

Definition at line 179 of file SparseMatrix.h.

{ return m_data; }

template<typename _Scalar, int _Options, typename _Index>

const ConstDiagonalReturnType Eigen::SparseMatrix< _Scalar, _Options, _Index >::diagonal ( ) const [inline]

Returns:: a const expression of the diagonal coefficients.

Definition at line 645 of file SparseMatrix.h.

{ return ConstDiagonalReturnType(*this); }

template<typename _Scalar, int _Options, typename _Index>

DiagonalReturnType Eigen::SparseMatrix< _Scalar, _Options, _Index >::diagonal ( ) [inline]

Returns:: a read-write expression of the diagonal coefficients.

Warning:: If the diagonal entries are written, then all diagonal entries must already exist, otherwise an assertion will be raised.

Definition at line 651 of file SparseMatrix.h.

{ return DiagonalReturnType(*this); }

template<typename _Scalar, int _Options, typename _Index>

void Eigen::SparseMatrix< _Scalar, _Options, _Index >::finalize ( ) [inline]

Must be called after inserting a set of non zero entries using the low level compressed API.

Definition at line 417 of file SparseMatrix.h.

    {
      if(isCompressed())
      {
        StorageIndex size = internal::convert_index<StorageIndex>(m_data.size());
        Index i = m_outerSize;
        // find the last filled column
        while (i>=0 && m_outerIndex[i]==0)
          --i;
        ++i;
        while (i<=m_outerSize)
        {
          m_outerIndex[i] = size;
          ++i;
        }
      }
    }

template<typename _Scalar, int _Options, typename _Index>

template<typename Other >

void Eigen::SparseMatrix< _Scalar, _Options, _Index >::initAssignment ( const Other & other ) [inline, protected]

Definition at line 837 of file SparseMatrix.h.

    {
      resize(other.rows(), other.cols());
      if(m_innerNonZeros)
      {
        std::free(m_innerNonZeros);
        m_innerNonZeros = 0;
      }
    }

template<typename _Scalar, int _Options, typename _Index>

const StorageIndex* Eigen::SparseMatrix< _Scalar, _Options, _Index >::innerIndexPtr ( ) const [inline]

Returns:: a const pointer to the array of inner indices. This function is aimed at interoperability with other libraries.

See also:: valuePtr(), outerIndexPtr()

Reimplemented from Eigen::SparseCompressedBase< SparseMatrix< _Scalar, _Options, _Index > >.

Definition at line 152 of file SparseMatrix.h.

{ return m_data.indexPtr(); }

template<typename _Scalar, int _Options, typename _Index>

StorageIndex* Eigen::SparseMatrix< _Scalar, _Options, _Index >::innerIndexPtr ( ) [inline]

Returns:: a non-const pointer to the array of inner indices. This function is aimed at interoperability with other libraries.

See also:: valuePtr(), outerIndexPtr()

Reimplemented from Eigen::SparseCompressedBase< SparseMatrix< _Scalar, _Options, _Index > >.

Definition at line 156 of file SparseMatrix.h.

{ return m_data.indexPtr(); }

template<typename _Scalar, int _Options, typename _Index>

const StorageIndex* Eigen::SparseMatrix< _Scalar, _Options, _Index >::innerNonZeroPtr ( ) const [inline]

Returns:: a const pointer to the array of the number of non zeros of the inner vectors. This function is aimed at interoperability with other libraries.

Warning:: it returns the null pointer 0 in compressed mode

Reimplemented from Eigen::SparseCompressedBase< SparseMatrix< _Scalar, _Options, _Index > >.

Definition at line 170 of file SparseMatrix.h.

{ return m_innerNonZeros; }

template<typename _Scalar, int _Options, typename _Index>

StorageIndex* Eigen::SparseMatrix< _Scalar, _Options, _Index >::innerNonZeroPtr ( ) [inline]

Returns:: a non-const pointer to the array of the number of non zeros of the inner vectors. This function is aimed at interoperability with other libraries.

Warning:: it returns the null pointer 0 in compressed mode

Reimplemented from Eigen::SparseCompressedBase< SparseMatrix< _Scalar, _Options, _Index > >.

Definition at line 174 of file SparseMatrix.h.

{ return m_innerNonZeros; }

template<typename _Scalar, int _Options, typename _Index>

Index Eigen::SparseMatrix< _Scalar, _Options, _Index >::innerSize ( ) const [inline]

Returns:: the number of rows (resp. columns) of the matrix if the storage order column major (resp. row major)

Reimplemented from Eigen::SparseMatrixBase< SparseMatrix< _Scalar, _Options, _Index > >.

Definition at line 136 of file SparseMatrix.h.

{ return m_innerSize; }

template<typename _Scalar , int _Options, typename _Index >

SparseMatrix< _Scalar, _Options, _Index >::Scalar & Eigen::SparseMatrix< _Scalar, _Options, _Index >::insert	(	Index	row,
		Index	col
	)

Returns:: a reference to a novel non zero coefficient with coordinates row x col. The non zero coefficient must not already exist.

If the matrix *this is in compressed mode, then *this is turned into uncompressed mode while reserving room for 2 x this->innerSize() non zeros if reserve(Index) has not been called earlier. In this case, the insertion procedure is optimized for a sequential insertion mode where elements are assumed to be inserted by increasing outer-indices.

If that's not the case, then it is strongly recommended to either use a triplet-list to assemble the matrix, or to first call reserve(const SizesType &) to reserve the appropriate number of non-zero elements per inner vector.

Assuming memory has been appropriately reserved, this function performs a sorted insertion in O(1) if the elements of each inner vector are inserted in increasing inner index order, and in O(nnz_j) for a random insertion.

Definition at line 1116 of file SparseMatrix.h.

{
  eigen_assert(row>=0 && row<rows() && col>=0 && col<cols());

  const Index outer = IsRowMajor ? row : col;
  const Index inner = IsRowMajor ? col : row;

  if(isCompressed())
  {
    if(nonZeros()==0)
    {
      // reserve space if not already done
      if(m_data.allocatedSize()==0)
        m_data.reserve(2*m_innerSize);

      // turn the matrix into non-compressed mode
      m_innerNonZeros = static_cast<StorageIndex*>(std::malloc(m_outerSize * sizeof(StorageIndex)));
      if(!m_innerNonZeros) internal::throw_std_bad_alloc();

      memset(m_innerNonZeros, 0, (m_outerSize)*sizeof(StorageIndex));

      // pack all inner-vectors to the end of the pre-allocated space
      // and allocate the entire free-space to the first inner-vector
      StorageIndex end = convert_index(m_data.allocatedSize());
      for(Index j=1; j<=m_outerSize; ++j)
        m_outerIndex[j] = end;
    }
    else
    {
      // turn the matrix into non-compressed mode
      m_innerNonZeros = static_cast<StorageIndex*>(std::malloc(m_outerSize * sizeof(StorageIndex)));
      if(!m_innerNonZeros) internal::throw_std_bad_alloc();
      for(Index j=0; j<m_outerSize; ++j)
        m_innerNonZeros[j] = m_outerIndex[j+1]-m_outerIndex[j];
    }
  }

  // check whether we can do a fast "push back" insertion
  Index data_end = m_data.allocatedSize();

  // First case: we are filling a new inner vector which is packed at the end.
  // We assume that all remaining inner-vectors are also empty and packed to the end.
  if(m_outerIndex[outer]==data_end)
  {
    eigen_internal_assert(m_innerNonZeros[outer]==0);

    // pack previous empty inner-vectors to end of the used-space
    // and allocate the entire free-space to the current inner-vector.
    StorageIndex p = convert_index(m_data.size());
    Index j = outer;
    while(j>=0 && m_innerNonZeros[j]==0)
      m_outerIndex[j--] = p;

    // push back the new element
    ++m_innerNonZeros[outer];
    m_data.append(Scalar(0), inner);

    // check for reallocation
    if(data_end != m_data.allocatedSize())
    {
      // m_data has been reallocated
      //  -> move remaining inner-vectors back to the end of the free-space
      //     so that the entire free-space is allocated to the current inner-vector.
      eigen_internal_assert(data_end < m_data.allocatedSize());
      StorageIndex new_end = convert_index(m_data.allocatedSize());
      for(Index k=outer+1; k<=m_outerSize; ++k)
        if(m_outerIndex[k]==data_end)
          m_outerIndex[k] = new_end;
    }
    return m_data.value(p);
  }

  // Second case: the next inner-vector is packed to the end
  // and the current inner-vector end match the used-space.
  if(m_outerIndex[outer+1]==data_end && m_outerIndex[outer]+m_innerNonZeros[outer]==m_data.size())
  {
    eigen_internal_assert(outer+1==m_outerSize || m_innerNonZeros[outer+1]==0);

    // add space for the new element
    ++m_innerNonZeros[outer];
    m_data.resize(m_data.size()+1);

    // check for reallocation
    if(data_end != m_data.allocatedSize())
    {
      // m_data has been reallocated
      //  -> move remaining inner-vectors back to the end of the free-space
      //     so that the entire free-space is allocated to the current inner-vector.
      eigen_internal_assert(data_end < m_data.allocatedSize());
      StorageIndex new_end = convert_index(m_data.allocatedSize());
      for(Index k=outer+1; k<=m_outerSize; ++k)
        if(m_outerIndex[k]==data_end)
          m_outerIndex[k] = new_end;
    }

    // and insert it at the right position (sorted insertion)
    Index startId = m_outerIndex[outer];
    Index p = m_outerIndex[outer]+m_innerNonZeros[outer]-1;
    while ( (p > startId) && (m_data.index(p-1) > inner) )
    {
      m_data.index(p) = m_data.index(p-1);
      m_data.value(p) = m_data.value(p-1);
      --p;
    }

    m_data.index(p) = convert_index(inner);
    return (m_data.value(p) = 0);
  }

  if(m_data.size() != m_data.allocatedSize())
  {
    // make sure the matrix is compatible to random un-compressed insertion:
    m_data.resize(m_data.allocatedSize());
    this->reserveInnerVectors(Array<StorageIndex,Dynamic,1>::Constant(m_outerSize, 2));
  }

  return insertUncompressed(row,col);
}

template<typename _Scalar, int _Options, typename _Index>

Scalar& Eigen::SparseMatrix< _Scalar, _Options, _Index >::insertBack	(	Index	row,
		Index	col
	)		`[inline]`

Returns:

a reference to the non zero coefficient at position row, col assuming that:

the nonzero does not already exist
the new coefficient is the last one according to the storage order

Before filling a given inner vector you must call the statVec(Index) function.

After an insertion session, you should call the finalize() function.

See also:: insert, insertBackByOuterInner, startVec

Definition at line 378 of file SparseMatrix.h.

    {
      return insertBackByOuterInner(IsRowMajor?row:col, IsRowMajor?col:row);
    }

template<typename _Scalar, int _Options, typename _Index>

Scalar& Eigen::SparseMatrix< _Scalar, _Options, _Index >::insertBackByOuterInner	(	Index	outer,
		Index	inner
	)		`[inline]`

See also:: insertBack, startVec

Definition at line 385 of file SparseMatrix.h.

    {
      eigen_assert(Index(m_outerIndex[outer+1]) == m_data.size() && "Invalid ordered insertion (invalid outer index)");
      eigen_assert( (m_outerIndex[outer+1]-m_outerIndex[outer]==0 || m_data.index(m_data.size()-1)<inner) && "Invalid ordered insertion (invalid inner index)");
      Index p = m_outerIndex[outer+1];
      ++m_outerIndex[outer+1];
      m_data.append(Scalar(0), inner);
      return m_data.value(p);
    }

template<typename _Scalar, int _Options, typename _Index>

Scalar& Eigen::SparseMatrix< _Scalar, _Options, _Index >::insertBackByOuterInnerUnordered	(	Index	outer,
		Index	inner
	)		`[inline]`

Warning:: use it only if you know what you are doing

Definition at line 397 of file SparseMatrix.h.

    {
      Index p = m_outerIndex[outer+1];
      ++m_outerIndex[outer+1];
      m_data.append(Scalar(0), inner);
      return m_data.value(p);
    }

template<typename _Scalar, int _Options, typename _Index>

EIGEN_STRONG_INLINE Scalar& Eigen::SparseMatrix< _Scalar, _Options, _Index >::insertBackUncompressed	(	Index	row,
		Index	col
	)		`[inline]`

See also:: insert(Index,Index)

Definition at line 873 of file SparseMatrix.h.

    {
      const Index outer = IsRowMajor ? row : col;
      const Index inner = IsRowMajor ? col : row;

      eigen_assert(!isCompressed());
      eigen_assert(m_innerNonZeros[outer]<=(m_outerIndex[outer+1] - m_outerIndex[outer]));

      Index p = m_outerIndex[outer] + m_innerNonZeros[outer]++;
      m_data.index(p) = convert_index(inner);
      return (m_data.value(p) = 0);
    }

template<typename _Scalar, int _Options, typename _Index>

Scalar& Eigen::SparseMatrix< _Scalar, _Options, _Index >::insertByOuterInner	(	Index	j,
		Index	i
	)		`[inline]`

same as insert(Index,Index) except that the indices are given relative to the storage order

Definition at line 452 of file SparseMatrix.h.

    {
      return insert(IsRowMajor ? j : i, IsRowMajor ? i : j);
    }

template<typename _Scalar , int _Options, typename _Index >

EIGEN_DONT_INLINE SparseMatrix< _Scalar, _Options, _Index >::Scalar & Eigen::SparseMatrix< _Scalar, _Options, _Index >::insertCompressed	(	Index	row,
		Index	col
	)		`[protected]`

See also:: insert(Index,Index)

Definition at line 1268 of file SparseMatrix.h.

{
  eigen_assert(isCompressed());

  const Index outer = IsRowMajor ? row : col;
  const Index inner = IsRowMajor ? col : row;

  Index previousOuter = outer;
  if (m_outerIndex[outer+1]==0)
  {
    // we start a new inner vector
    while (previousOuter>=0 && m_outerIndex[previousOuter]==0)
    {
      m_outerIndex[previousOuter] = convert_index(m_data.size());
      --previousOuter;
    }
    m_outerIndex[outer+1] = m_outerIndex[outer];
  }

  // here we have to handle the tricky case where the outerIndex array
  // starts with: [ 0 0 0 0 0 1 ...] and we are inserted in, e.g.,
  // the 2nd inner vector...
  bool isLastVec = (!(previousOuter==-1 && m_data.size()!=0))
                && (size_t(m_outerIndex[outer+1]) == m_data.size());

  size_t startId = m_outerIndex[outer];
  // FIXME let's make sure sizeof(long int) == sizeof(size_t)
  size_t p = m_outerIndex[outer+1];
  ++m_outerIndex[outer+1];

  double reallocRatio = 1;
  if (m_data.allocatedSize()<=m_data.size())
  {
    // if there is no preallocated memory, let's reserve a minimum of 32 elements
    if (m_data.size()==0)
    {
      m_data.reserve(32);
    }
    else
    {
      // we need to reallocate the data, to reduce multiple reallocations
      // we use a smart resize algorithm based on the current filling ratio
      // in addition, we use double to avoid integers overflows
      double nnzEstimate = double(m_outerIndex[outer])*double(m_outerSize)/double(outer+1);
      reallocRatio = (nnzEstimate-double(m_data.size()))/double(m_data.size());
      // furthermore we bound the realloc ratio to:
      //   1) reduce multiple minor realloc when the matrix is almost filled
      //   2) avoid to allocate too much memory when the matrix is almost empty
      reallocRatio = (std::min)((std::max)(reallocRatio,1.5),8.);
    }
  }
  m_data.resize(m_data.size()+1,reallocRatio);

  if (!isLastVec)
  {
    if (previousOuter==-1)
    {
      // oops wrong guess.
      // let's correct the outer offsets
      for (Index k=0; k<=(outer+1); ++k)
        m_outerIndex[k] = 0;
      Index k=outer+1;
      while(m_outerIndex[k]==0)
        m_outerIndex[k++] = 1;
      while (k<=m_outerSize && m_outerIndex[k]!=0)
        m_outerIndex[k++]++;
      p = 0;
      --k;
      k = m_outerIndex[k]-1;
      while (k>0)
      {
        m_data.index(k) = m_data.index(k-1);
        m_data.value(k) = m_data.value(k-1);
        k--;
      }
    }
    else
    {
      // we are not inserting into the last inner vec
      // update outer indices:
      Index j = outer+2;
      while (j<=m_outerSize && m_outerIndex[j]!=0)
        m_outerIndex[j++]++;
      --j;
      // shift data of last vecs:
      Index k = m_outerIndex[j]-1;
      while (k>=Index(p))
      {
        m_data.index(k) = m_data.index(k-1);
        m_data.value(k) = m_data.value(k-1);
        k--;
      }
    }
  }

  while ( (p > startId) && (m_data.index(p-1) > inner) )
  {
    m_data.index(p) = m_data.index(p-1);
    m_data.value(p) = m_data.value(p-1);
    --p;
  }

  m_data.index(p) = inner;
  return (m_data.value(p) = 0);
}

template<typename _Scalar , int _Options, typename _Index >

EIGEN_DONT_INLINE SparseMatrix< _Scalar, _Options, _Index >::Scalar & Eigen::SparseMatrix< _Scalar, _Options, _Index >::insertUncompressed	(	Index	row,
		Index	col
	)		`[protected]`

See also:: insert(Index,Index)

Definition at line 1236 of file SparseMatrix.h.

{
  eigen_assert(!isCompressed());

  const Index outer = IsRowMajor ? row : col;
  const StorageIndex inner = convert_index(IsRowMajor ? col : row);

  Index room = m_outerIndex[outer+1] - m_outerIndex[outer];
  StorageIndex innerNNZ = m_innerNonZeros[outer];
  if(innerNNZ>=room)
  {
    // this inner vector is full, we need to reallocate the whole buffer :(
    reserve(SingletonVector(outer,std::max<StorageIndex>(2,innerNNZ)));
  }

  Index startId = m_outerIndex[outer];
  Index p = startId + m_innerNonZeros[outer];
  while ( (p > startId) && (m_data.index(p-1) > inner) )
  {
    m_data.index(p) = m_data.index(p-1);
    m_data.value(p) = m_data.value(p-1);
    --p;
  }
  eigen_assert((p<=startId || m_data.index(p-1)!=inner) && "you cannot insert an element that already exists, you must call coeffRef to this end");

  m_innerNonZeros[outer]++;

  m_data.index(p) = inner;
  return (m_data.value(p) = 0);
}

template<typename _Scalar, int _Options, typename _Index>

void Eigen::SparseMatrix< _Scalar, _Options, _Index >::makeCompressed ( ) [inline]

Turns the matrix into the compressed format.

Definition at line 459 of file SparseMatrix.h.

    {
      if(isCompressed())
        return;

      eigen_internal_assert(m_outerIndex!=0 && m_outerSize>0);

      Index oldStart = m_outerIndex[1];
      m_outerIndex[1] = m_innerNonZeros[0];
      for(Index j=1; j<m_outerSize; ++j)
      {
        Index nextOldStart = m_outerIndex[j+1];
        Index offset = oldStart - m_outerIndex[j];
        if(offset>0)
        {
          for(Index k=0; k<m_innerNonZeros[j]; ++k)
          {
            m_data.index(m_outerIndex[j]+k) = m_data.index(oldStart+k);
            m_data.value(m_outerIndex[j]+k) = m_data.value(oldStart+k);
          }
        }
        m_outerIndex[j+1] = m_outerIndex[j] + m_innerNonZeros[j];
        oldStart = nextOldStart;
      }
      std::free(m_innerNonZeros);
      m_innerNonZeros = 0;
      m_data.resize(m_outerIndex[m_outerSize]);
      m_data.squeeze();
    }

template<typename _Scalar, int _Options, typename _Index>

SparseMatrix& Eigen::SparseMatrix< _Scalar, _Options, _Index >::operator= ( const SparseMatrix< _Scalar, _Options, _Index > & other ) [inline]

Reimplemented from Eigen::SparseMatrixBase< SparseMatrix< _Scalar, _Options, _Index > >.

Definition at line 749 of file SparseMatrix.h.

    {
      if (other.isRValue())
      {
        swap(other.const_cast_derived());
      }
      else if(this!=&other)
      {
        #ifdef EIGEN_SPARSE_CREATE_TEMPORARY_PLUGIN
          EIGEN_SPARSE_CREATE_TEMPORARY_PLUGIN
        #endif
        initAssignment(other);
        if(other.isCompressed())
        {
          internal::smart_copy(other.m_outerIndex, other.m_outerIndex + m_outerSize + 1, m_outerIndex);
          m_data = other.m_data;
        }
        else
        {
          Base::operator=(other);
        }
      }
      return *this;
    }

template<typename _Scalar, int _Options, typename _Index>

template<typename OtherDerived >

SparseMatrix& Eigen::SparseMatrix< _Scalar, _Options, _Index >::operator= ( const EigenBase< OtherDerived > & other ) [inline]

Reimplemented from Eigen::SparseMatrixBase< SparseMatrix< _Scalar, _Options, _Index > >.

Definition at line 776 of file SparseMatrix.h.

    { return Base::operator=(other.derived()); }

template<typename Scalar , int _Options, typename _Index >

template<typename OtherDerived >

EIGEN_DONT_INLINE SparseMatrix< Scalar, _Options, _Index > & Eigen::SparseMatrix< Scalar, _Options, _Index >::operator= ( const SparseMatrixBase< OtherDerived > & other )

Reimplemented from Eigen::SparseMatrixBase< SparseMatrix< _Scalar, _Options, _Index > >.

Definition at line 1044 of file SparseMatrix.h.

{
  EIGEN_STATIC_ASSERT((internal::is_same<Scalar, typename OtherDerived::Scalar>::value),
        YOU_MIXED_DIFFERENT_NUMERIC_TYPES__YOU_NEED_TO_USE_THE_CAST_METHOD_OF_MATRIXBASE_TO_CAST_NUMERIC_TYPES_EXPLICITLY)

  #ifdef EIGEN_SPARSE_CREATE_TEMPORARY_PLUGIN
    EIGEN_SPARSE_CREATE_TEMPORARY_PLUGIN
  #endif

  const bool needToTranspose = (Flags & RowMajorBit) != (internal::evaluator<OtherDerived>::Flags & RowMajorBit);
  if (needToTranspose)
  {
    #ifdef EIGEN_SPARSE_TRANSPOSED_COPY_PLUGIN
      EIGEN_SPARSE_TRANSPOSED_COPY_PLUGIN
    #endif
    // two passes algorithm:
    //  1 - compute the number of coeffs per dest inner vector
    //  2 - do the actual copy/eval
    // Since each coeff of the rhs has to be evaluated twice, let's evaluate it if needed
    typedef typename internal::nested_eval<OtherDerived,2,typename internal::plain_matrix_type<OtherDerived>::type >::type OtherCopy;
    typedef typename internal::remove_all<OtherCopy>::type _OtherCopy;
    typedef internal::evaluator<_OtherCopy> OtherCopyEval;
    OtherCopy otherCopy(other.derived());
    OtherCopyEval otherCopyEval(otherCopy);

    SparseMatrix dest(other.rows(),other.cols());
    Eigen::Map<IndexVector> (dest.m_outerIndex,dest.outerSize()).setZero();

    // pass 1
    // FIXME the above copy could be merged with that pass
    for (Index j=0; j<otherCopy.outerSize(); ++j)
      for (typename OtherCopyEval::InnerIterator it(otherCopyEval, j); it; ++it)
        ++dest.m_outerIndex[it.index()];

    // prefix sum
    StorageIndex count = 0;
    IndexVector positions(dest.outerSize());
    for (Index j=0; j<dest.outerSize(); ++j)
    {
      Index tmp = dest.m_outerIndex[j];
      dest.m_outerIndex[j] = count;
      positions[j] = count;
      count += tmp;
    }
    dest.m_outerIndex[dest.outerSize()] = count;
    // alloc
    dest.m_data.resize(count);
    // pass 2
    for (StorageIndex j=0; j<otherCopy.outerSize(); ++j)
    {
      for (typename OtherCopyEval::InnerIterator it(otherCopyEval, j); it; ++it)
      {
        Index pos = positions[it.index()]++;
        dest.m_data.index(pos) = j;
        dest.m_data.value(pos) = it.value();
      }
    }
    this->swap(dest);
    return *this;
  }
  else
  {
    if(other.isRValue())
    {
      initAssignment(other.derived());
    }
    // there is no special optimization
    return Base::operator=(other.derived());
  }
}

template<typename _Scalar, int _Options, typename _Index>

const StorageIndex* Eigen::SparseMatrix< _Scalar, _Options, _Index >::outerIndexPtr ( ) const [inline]

Returns:: a const pointer to the array of the starting positions of the inner vectors. This function is aimed at interoperability with other libraries.

See also:: valuePtr(), innerIndexPtr()

Reimplemented from Eigen::SparseCompressedBase< SparseMatrix< _Scalar, _Options, _Index > >.

Definition at line 161 of file SparseMatrix.h.

{ return m_outerIndex; }

template<typename _Scalar, int _Options, typename _Index>

StorageIndex* Eigen::SparseMatrix< _Scalar, _Options, _Index >::outerIndexPtr ( ) [inline]

Returns:: a non-const pointer to the array of the starting positions of the inner vectors. This function is aimed at interoperability with other libraries.

See also:: valuePtr(), innerIndexPtr()

Reimplemented from Eigen::SparseCompressedBase< SparseMatrix< _Scalar, _Options, _Index > >.

Definition at line 165 of file SparseMatrix.h.

{ return m_outerIndex; }

template<typename _Scalar, int _Options, typename _Index>

Index Eigen::SparseMatrix< _Scalar, _Options, _Index >::outerSize ( ) const [inline]

Returns:: the number of columns (resp. rows) of the matrix if the storage order column major (resp. row major)

Reimplemented from Eigen::SparseMatrixBase< SparseMatrix< _Scalar, _Options, _Index > >.

Definition at line 138 of file SparseMatrix.h.

{ return m_outerSize; }

template<typename _Scalar, int _Options, typename _Index>

void Eigen::SparseMatrix< _Scalar, _Options, _Index >::prune	(	const Scalar &	reference,
		const RealScalar &	epsilon = `NumTraits<RealScalar>::dummy_precision()`
	)		`[inline]`

Suppresses all nonzeros which are much smaller than reference under the tolerence epsilon

Definition at line 502 of file SparseMatrix.h.

    {
      prune(default_prunning_func(reference,epsilon));
    }

template<typename _Scalar, int _Options, typename _Index>

template<typename KeepFunc >

void Eigen::SparseMatrix< _Scalar, _Options, _Index >::prune ( const KeepFunc & keep = KeepFunc() ) [inline]

Turns the matrix into compressed format, and suppresses all nonzeros which do not satisfy the predicate keep. The functor type KeepFunc must implement the following function:

 bool operator() (const Index& row, const Index& col, const Scalar& value) const;

See also:: prune(Scalar,RealScalar)

Definition at line 515 of file SparseMatrix.h.

    {
      // TODO optimize the uncompressed mode to avoid moving and allocating the data twice
      makeCompressed();

      StorageIndex k = 0;
      for(Index j=0; j<m_outerSize; ++j)
      {
        Index previousStart = m_outerIndex[j];
        m_outerIndex[j] = k;
        Index end = m_outerIndex[j+1];
        for(Index i=previousStart; i<end; ++i)
        {
          if(keep(IsRowMajor?j:m_data.index(i), IsRowMajor?m_data.index(i):j, m_data.value(i)))
          {
            m_data.value(k) = m_data.value(i);
            m_data.index(k) = m_data.index(i);
            ++k;
          }
        }
      }
      m_outerIndex[m_outerSize] = k;
      m_data.resize(k,0);
    }

template<typename _Scalar, int _Options, typename _Index>

void Eigen::SparseMatrix< _Scalar, _Options, _Index >::reserve ( Index reserveSize ) [inline]

Preallocates reserveSize non zeros.

Precondition: the matrix must be in compressed mode.

Definition at line 257 of file SparseMatrix.h.

    {
      eigen_assert(isCompressed() && "This function does not make sense in non compressed mode.");
      m_data.reserve(reserveSize);
    }

template<typename _Scalar, int _Options, typename _Index>

template<class SizesType >

void Eigen::SparseMatrix< _Scalar, _Options, _Index >::reserve	(	const SizesType &	reserveSizes,
		const typename SizesType::value_type &	enableif = `typename SizesType::value_type()`
	)		`[inline]`

Definition at line 280 of file SparseMatrix.h.

    {
      EIGEN_UNUSED_VARIABLE(enableif);
      reserveInnerVectors(reserveSizes);
    }

template<typename _Scalar, int _Options, typename _Index>

template<class SizesType >

void Eigen::SparseMatrix< _Scalar, _Options, _Index >::reserveInnerVectors ( const SizesType & reserveSizes ) [inline, protected]

Definition at line 292 of file SparseMatrix.h.

    {
      if(isCompressed())
      {
        Index totalReserveSize = 0;
        // turn the matrix into non-compressed mode
        m_innerNonZeros = static_cast<StorageIndex*>(std::malloc(m_outerSize * sizeof(StorageIndex)));
        if (!m_innerNonZeros) internal::throw_std_bad_alloc();

        // temporarily use m_innerSizes to hold the new starting points.
        StorageIndex* newOuterIndex = m_innerNonZeros;

        StorageIndex count = 0;
        for(Index j=0; j<m_outerSize; ++j)
        {
          newOuterIndex[j] = count;
          count += reserveSizes[j] + (m_outerIndex[j+1]-m_outerIndex[j]);
          totalReserveSize += reserveSizes[j];
        }
        m_data.reserve(totalReserveSize);
        StorageIndex previousOuterIndex = m_outerIndex[m_outerSize];
        for(Index j=m_outerSize-1; j>=0; --j)
        {
          StorageIndex innerNNZ = previousOuterIndex - m_outerIndex[j];
          for(Index i=innerNNZ-1; i>=0; --i)
          {
            m_data.index(newOuterIndex[j]+i) = m_data.index(m_outerIndex[j]+i);
            m_data.value(newOuterIndex[j]+i) = m_data.value(m_outerIndex[j]+i);
          }
          previousOuterIndex = m_outerIndex[j];
          m_outerIndex[j] = newOuterIndex[j];
          m_innerNonZeros[j] = innerNNZ;
        }
        m_outerIndex[m_outerSize] = m_outerIndex[m_outerSize-1] + m_innerNonZeros[m_outerSize-1] + reserveSizes[m_outerSize-1];

        m_data.resize(m_outerIndex[m_outerSize]);
      }
      else
      {
        StorageIndex* newOuterIndex = static_cast<StorageIndex*>(std::malloc((m_outerSize+1)*sizeof(StorageIndex)));
        if (!newOuterIndex) internal::throw_std_bad_alloc();

        StorageIndex count = 0;
        for(Index j=0; j<m_outerSize; ++j)
        {
          newOuterIndex[j] = count;
          StorageIndex alreadyReserved = (m_outerIndex[j+1]-m_outerIndex[j]) - m_innerNonZeros[j];
          StorageIndex toReserve = std::max<StorageIndex>(reserveSizes[j], alreadyReserved);
          count += toReserve + m_innerNonZeros[j];
        }
        newOuterIndex[m_outerSize] = count;

        m_data.resize(count);
        for(Index j=m_outerSize-1; j>=0; --j)
        {
          Index offset = newOuterIndex[j] - m_outerIndex[j];
          if(offset>0)
          {
            StorageIndex innerNNZ = m_innerNonZeros[j];
            for(Index i=innerNNZ-1; i>=0; --i)
            {
              m_data.index(newOuterIndex[j]+i) = m_data.index(m_outerIndex[j]+i);
              m_data.value(newOuterIndex[j]+i) = m_data.value(m_outerIndex[j]+i);
            }
          }
        }

        std::swap(m_outerIndex, newOuterIndex);
        std::free(newOuterIndex);
      }

    }

template<typename _Scalar, int _Options, typename _Index>

void Eigen::SparseMatrix< _Scalar, _Options, _Index >::resize	(	Index	rows,
		Index	cols
	)		`[inline]`

Resizes the matrix to a rows x cols matrix and initializes it to zero.

This function does not free the currently allocated memory. To release as much as memory as possible, call

 mat.data().squeeze();

after resizing it.

See also:: reserve(), setZero()

Definition at line 616 of file SparseMatrix.h.

    {
      const Index outerSize = IsRowMajor ? rows : cols;
      m_innerSize = IsRowMajor ? cols : rows;
      m_data.clear();
      if (m_outerSize != outerSize || m_outerSize==0)
      {
        std::free(m_outerIndex);
        m_outerIndex = static_cast<StorageIndex*>(std::malloc((outerSize + 1) * sizeof(StorageIndex)));
        if (!m_outerIndex) internal::throw_std_bad_alloc();

        m_outerSize = outerSize;
      }
      if(m_innerNonZeros)
      {
        std::free(m_innerNonZeros);
        m_innerNonZeros = 0;
      }
      memset(m_outerIndex, 0, (m_outerSize+1)*sizeof(StorageIndex));
    }

template<typename _Scalar, int _Options, typename _Index>

void Eigen::SparseMatrix< _Scalar, _Options, _Index >::resizeNonZeros ( Index size ) [inline]

Resize the nonzero vector to size

Definition at line 639 of file SparseMatrix.h.

    {
      m_data.resize(size);
    }

template<typename _Scalar, int _Options, typename _Index>

Index Eigen::SparseMatrix< _Scalar, _Options, _Index >::rows ( void ) const [inline]

Returns:: the number of rows of the matrix

Reimplemented from Eigen::SparseMatrixBase< SparseMatrix< _Scalar, _Options, _Index > >.

Definition at line 131 of file SparseMatrix.h.

{ return IsRowMajor ? m_outerSize : m_innerSize; }

template<typename Scalar , int _Options, typename _Index >

template<typename InputIterators >

void Eigen::SparseMatrix< Scalar, _Options, _Index >::setFromTriplets	(	const InputIterators &	begin,
		const InputIterators &	end
	)

Fill the matrix *this with the list of triplets defined by the iterator range begin - end.

A triplet is a tuple (i,j,value) defining a non-zero element. The input list of triplets does not have to be sorted, and can contains duplicated elements. In any case, the result is a sorted and compressed sparse matrix where the duplicates have been summed up. This is a O(n) operation, with n the number of triplet elements. The initial contents of *this is destroyed. The matrix *this must be properly resized beforehand using the SparseMatrix(Index,Index) constructor, or the resize(Index,Index) method. The sizes are not extracted from the triplet list.

The InputIterators value_type must provide the following interface:

 Scalar value() const; // the value
 Scalar row() const;   // the row index i
 Scalar col() const;   // the column index j

See for instance the Eigen::Triplet template class.

Here is a typical usage example:

    typedef Triplet<double> T;
    std::vector<T> tripletList;
    triplets.reserve(estimation_of_entries);
    for(...)
    {
      // ...
      tripletList.push_back(T(i,j,v_ij));
    }
    SparseMatrixType m(rows,cols);
    m.setFromTriplets(tripletList.begin(), tripletList.end());
    // m is ready to go!

Warning:: The list of triplets is read multiple times (at least twice). Therefore, it is not recommended to define an abstract iterator over a complex data-structure that would be expensive to evaluate. The triplets should rather be explicitely stored into a std::vector for instance.

Definition at line 980 of file SparseMatrix.h.

{
  internal::set_from_triplets<InputIterators, SparseMatrix<Scalar,_Options,_Index> >(begin, end, *this, internal::scalar_sum_op<Scalar>());
}

template<typename Scalar , int _Options, typename _Index >

template<typename InputIterators , typename DupFunctor >

void Eigen::SparseMatrix< Scalar, _Options, _Index >::setFromTriplets	(	const InputIterators &	begin,
		const InputIterators &	end,
		DupFunctor	dup_func
	)

The same as setFromTriplets but when duplicates are met the functor dup_func is applied:

 value = dup_func(OldValue, NewValue)

Here is a C++11 example keeping the latest entry only:

 mat.setFromTriplets(triplets.begin(), triplets.end(), [] (const Scalar&,const Scalar &b) { return b; });

Definition at line 996 of file SparseMatrix.h.

{
  internal::set_from_triplets<InputIterators, SparseMatrix<Scalar,_Options,_Index>, DupFunctor>(begin, end, *this, dup_func);
}

template<typename _Scalar, int _Options, typename _Index>

void Eigen::SparseMatrix< _Scalar, _Options, _Index >::setIdentity ( ) [inline]

Sets *this to the identity matrix. This function also turns the matrix into compressed mode, and drop any reserved memory.

Definition at line 739 of file SparseMatrix.h.

    {
      eigen_assert(rows() == cols() && "ONLY FOR SQUARED MATRICES");
      this->m_data.resize(rows());
      Eigen::Map<IndexVector>(this->m_data.indexPtr(), rows()).setLinSpaced(0, StorageIndex(rows()-1));
      Eigen::Map<ScalarVector>(this->m_data.valuePtr(), rows()).setOnes();
      Eigen::Map<IndexVector>(this->m_outerIndex, rows()+1).setLinSpaced(0, StorageIndex(rows()));
      std::free(m_innerNonZeros);
      m_innerNonZeros = 0;
    }

template<typename _Scalar, int _Options, typename _Index>

void Eigen::SparseMatrix< _Scalar, _Options, _Index >::setZero ( ) [inline]

Removes all non zeros but keep allocated memory

This function does not free the currently allocated memory. To release as much as memory as possible, call

 mat.data().squeeze();

after resizing it.

See also:: resize(Index,Index), data()

Definition at line 246 of file SparseMatrix.h.

    {
      m_data.clear();
      memset(m_outerIndex, 0, (m_outerSize+1)*sizeof(StorageIndex));
      if(m_innerNonZeros)
        memset(m_innerNonZeros, 0, (m_outerSize)*sizeof(StorageIndex));
    }

template<typename _Scalar, int _Options, typename _Index>

void Eigen::SparseMatrix< _Scalar, _Options, _Index >::startVec ( Index outer ) [inline]

See also:: insertBack, insertBackByOuterInner

Definition at line 407 of file SparseMatrix.h.

    {
      eigen_assert(m_outerIndex[outer]==Index(m_data.size()) && "You must call startVec for each inner vector sequentially");
      eigen_assert(m_outerIndex[outer+1]==0 && "You must call startVec for each inner vector sequentially");
      m_outerIndex[outer+1] = m_outerIndex[outer];
    }

template<typename _Scalar , int _Options, typename _Index >

internal::traits< SparseMatrix< _Scalar, _Options, _Index > >::Scalar Eigen::SparseMatrix< _Scalar, _Options, _Index >::sum ( ) const

Overloaded for performance

Reimplemented from Eigen::SparseMatrixBase< SparseMatrix< _Scalar, _Options, _Index > >.

Definition at line 30 of file SparseRedux.h.

{
  eigen_assert(rows()>0 && cols()>0 && "you are using a non initialized matrix");
  return Matrix<Scalar,1,Dynamic>::Map(m_data.valuePtr(), m_data.size()).sum();
}

template<typename _Scalar, int _Options, typename _Index>

void Eigen::SparseMatrix< _Scalar, _Options, _Index >::sumupDuplicates ( ) [inline]

Definition at line 443 of file SparseMatrix.h.

{ collapseDuplicates(internal::scalar_sum_op<Scalar>()); }

template<typename _Scalar, int _Options, typename _Index>

void Eigen::SparseMatrix< _Scalar, _Options, _Index >::swap ( SparseMatrix< _Scalar, _Options, _Index > & other ) [inline]

Swaps the content of two sparse matrices of the same type. This is a fast operation that simply swaps the underlying pointers and parameters.

Definition at line 727 of file SparseMatrix.h.

    {
      //EIGEN_DBG_SPARSE(std::cout << "SparseMatrix:: swap\n");
      std::swap(m_outerIndex, other.m_outerIndex);
      std::swap(m_innerSize, other.m_innerSize);
      std::swap(m_outerSize, other.m_outerSize);
      std::swap(m_innerNonZeros, other.m_innerNonZeros);
      m_data.swap(other.m_data);
    }

template<typename _Scalar, int _Options, typename _Index>

void Eigen::SparseMatrix< _Scalar, _Options, _Index >::uncompress ( ) [inline]

Turns the matrix into the uncompressed mode

Definition at line 490 of file SparseMatrix.h.

    {
      if(m_innerNonZeros != 0)
        return;
      m_innerNonZeros = static_cast<StorageIndex*>(std::malloc(m_outerSize * sizeof(StorageIndex)));
      for (Index i = 0; i < m_outerSize; i++)
      {
        m_innerNonZeros[i] = m_outerIndex[i+1] - m_outerIndex[i];
      }
    }

template<typename _Scalar, int _Options, typename _Index>

const Scalar* Eigen::SparseMatrix< _Scalar, _Options, _Index >::valuePtr ( ) const [inline]

Returns:: a const pointer to the array of values. This function is aimed at interoperability with other libraries.

See also:: innerIndexPtr(), outerIndexPtr()

Reimplemented from Eigen::SparseCompressedBase< SparseMatrix< _Scalar, _Options, _Index > >.

Definition at line 143 of file SparseMatrix.h.

{ return m_data.valuePtr(); }

template<typename _Scalar, int _Options, typename _Index>

Scalar* Eigen::SparseMatrix< _Scalar, _Options, _Index >::valuePtr ( ) [inline]

Returns:: a non-const pointer to the array of values. This function is aimed at interoperability with other libraries.

See also:: innerIndexPtr(), outerIndexPtr()

Reimplemented from Eigen::SparseCompressedBase< SparseMatrix< _Scalar, _Options, _Index > >.

Definition at line 147 of file SparseMatrix.h.

{ return m_data.valuePtr(); }

Friends And Related Function Documentation

template<typename _Scalar, int _Options, typename _Index>

std::ostream& operator<<	(	std::ostream &	s,
		const SparseMatrix< _Scalar, _Options, _Index > &	m
	)		`[friend]`

Definition at line 783 of file SparseMatrix.h.

    {
      EIGEN_DBG_SPARSE(
        s << "Nonzero entries:\n";
        if(m.isCompressed())
          for (Index i=0; i<m.nonZeros(); ++i)
            s << "(" << m.m_data.value(i) << "," << m.m_data.index(i) << ") ";
        else
          for (Index i=0; i<m.outerSize(); ++i)
          {
            Index p = m.m_outerIndex[i];
            Index pe = m.m_outerIndex[i]+m.m_innerNonZeros[i];
            Index k=p;
            for (; k<pe; ++k)
              s << "(" << m.m_data.value(k) << "," << m.m_data.index(k) << ") ";
            for (; k<m.m_outerIndex[i+1]; ++k)
              s << "(_,_) ";
          }
        s << std::endl;
        s << std::endl;
        s << "Outer pointers:\n";
        for (Index i=0; i<m.outerSize(); ++i)
          s << m.m_outerIndex[i] << " ";
        s << " $" << std::endl;
        if(!m.isCompressed())
        {
          s << "Inner non zeros:\n";
          for (Index i=0; i<m.outerSize(); ++i)
            s << m.m_innerNonZeros[i] << " ";
          s << " $" << std::endl;
        }
        s << std::endl;
      );
      s << static_cast<const SparseMatrixBase<SparseMatrix>&>(m);
      return s;
    }

Member Data Documentation

template<typename _Scalar, int _Options, typename _Index>

Storage Eigen::SparseMatrix< _Scalar, _Options, _Index >::m_data [protected]

Definition at line 126 of file SparseMatrix.h.

template<typename _Scalar, int _Options, typename _Index>

StorageIndex* Eigen::SparseMatrix< _Scalar, _Options, _Index >::m_innerNonZeros [protected]

Definition at line 125 of file SparseMatrix.h.

template<typename _Scalar, int _Options, typename _Index>

Index Eigen::SparseMatrix< _Scalar, _Options, _Index >::m_innerSize [protected]

Definition at line 123 of file SparseMatrix.h.

template<typename _Scalar, int _Options, typename _Index>

StorageIndex* Eigen::SparseMatrix< _Scalar, _Options, _Index >::m_outerIndex [protected]

Definition at line 124 of file SparseMatrix.h.

template<typename _Scalar, int _Options, typename _Index>

Index Eigen::SparseMatrix< _Scalar, _Options, _Index >::m_outerSize [protected]

Definition at line 122 of file SparseMatrix.h.

The documentation for this class was generated from the following files:

Classes

Public Types

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Private Types

Static Private Member Functions

Friends

Detailed Description

template<typename _Scalar, int _Options, typename _Index> class Eigen::SparseMatrix< _Scalar, _Options, _Index >

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation

template<typename _Scalar, int _Options, typename _Index>
class Eigen::SparseMatrix< _Scalar, _Options, _Index >
