#include <UpperBidiagonalization.h>

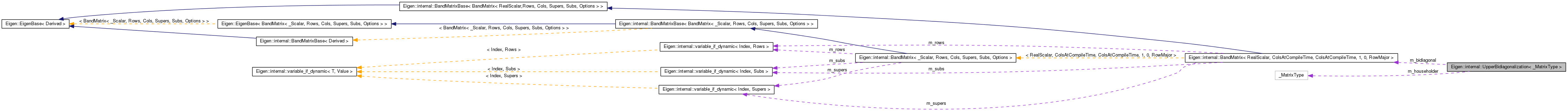

Collaboration diagram for Eigen::internal::UpperBidiagonalization< _MatrixType >:

Public Types
enum	{ RowsAtCompileTime = MatrixType::RowsAtCompileTime, ColsAtCompileTime = MatrixType::ColsAtCompileTime, ColsAtCompileTimeMinusOne = internal::decrement_size<ColsAtCompileTime>::ret }
typedef _MatrixType	MatrixType
typedef MatrixType::Scalar	Scalar
typedef MatrixType::RealScalar	RealScalar
typedef Eigen::Index	Index
typedef Matrix< Scalar, 1, ColsAtCompileTime >	RowVectorType
typedef Matrix< Scalar, RowsAtCompileTime, 1 >	ColVectorType
typedef BandMatrix< RealScalar, ColsAtCompileTime, ColsAtCompileTime, 1, 0, RowMajor >	BidiagonalType
typedef Matrix< Scalar, ColsAtCompileTime, 1 >	DiagVectorType
typedef Matrix< Scalar, ColsAtCompileTimeMinusOne, 1 >	SuperDiagVectorType
typedef HouseholderSequence < const MatrixType, const typename internal::remove_all < typename Diagonal< const MatrixType, 0 > ::ConjugateReturnType >::type >	HouseholderUSequenceType
typedef HouseholderSequence < const typename internal::remove_all< typename MatrixType::ConjugateReturnType > ::type, Diagonal< const MatrixType, 1 >, OnTheRight >	HouseholderVSequenceType
Public Member Functions
	UpperBidiagonalization ()
	Default Constructor.
	UpperBidiagonalization (const MatrixType &matrix)
UpperBidiagonalization &	compute (const MatrixType &matrix)
UpperBidiagonalization &	computeUnblocked (const MatrixType &matrix)
const MatrixType &	householder () const
const BidiagonalType &	bidiagonal () const
const HouseholderUSequenceType	householderU () const
const HouseholderVSequenceType	householderV ()
Protected Attributes
MatrixType	m_householder
BidiagonalType	m_bidiagonal
bool	m_isInitialized

Detailed Description

template<typename _MatrixType>
class Eigen::internal::UpperBidiagonalization< _MatrixType >

Definition at line 20 of file UpperBidiagonalization.h.

Member Typedef Documentation

template<typename _MatrixType>

typedef BandMatrix<RealScalar, ColsAtCompileTime, ColsAtCompileTime, 1, 0, RowMajor> Eigen::internal::UpperBidiagonalization< _MatrixType >::BidiagonalType

Definition at line 35 of file UpperBidiagonalization.h.

template<typename _MatrixType>

typedef Matrix<Scalar, RowsAtCompileTime, 1> Eigen::internal::UpperBidiagonalization< _MatrixType >::ColVectorType

Definition at line 34 of file UpperBidiagonalization.h.

template<typename _MatrixType>

typedef Matrix<Scalar, ColsAtCompileTime, 1> Eigen::internal::UpperBidiagonalization< _MatrixType >::DiagVectorType

Definition at line 36 of file UpperBidiagonalization.h.

template<typename _MatrixType>

typedef HouseholderSequence< const MatrixType, const typename internal::remove_all<typename Diagonal<const MatrixType,0>::ConjugateReturnType>::type > Eigen::internal::UpperBidiagonalization< _MatrixType >::HouseholderUSequenceType

Definition at line 41 of file UpperBidiagonalization.h.

template<typename _MatrixType>

typedef HouseholderSequence< const typename internal::remove_all<typename MatrixType::ConjugateReturnType>::type, Diagonal<const MatrixType,1>, OnTheRight > Eigen::internal::UpperBidiagonalization< _MatrixType >::HouseholderVSequenceType

Definition at line 46 of file UpperBidiagonalization.h.

template<typename _MatrixType>

typedef Eigen::Index Eigen::internal::UpperBidiagonalization< _MatrixType >::Index

Deprecated:: since Eigen 3.3

Definition at line 32 of file UpperBidiagonalization.h.

template<typename _MatrixType>

typedef _MatrixType Eigen::internal::UpperBidiagonalization< _MatrixType >::MatrixType

Definition at line 24 of file UpperBidiagonalization.h.

template<typename _MatrixType>

typedef MatrixType::RealScalar Eigen::internal::UpperBidiagonalization< _MatrixType >::RealScalar

Definition at line 31 of file UpperBidiagonalization.h.

template<typename _MatrixType>

typedef Matrix<Scalar, 1, ColsAtCompileTime> Eigen::internal::UpperBidiagonalization< _MatrixType >::RowVectorType

Definition at line 33 of file UpperBidiagonalization.h.

template<typename _MatrixType>

typedef MatrixType::Scalar Eigen::internal::UpperBidiagonalization< _MatrixType >::Scalar

Definition at line 30 of file UpperBidiagonalization.h.

template<typename _MatrixType>

typedef Matrix<Scalar, ColsAtCompileTimeMinusOne, 1> Eigen::internal::UpperBidiagonalization< _MatrixType >::SuperDiagVectorType

Definition at line 37 of file UpperBidiagonalization.h.

Member Enumeration Documentation

template<typename _MatrixType>

anonymous enum

Enumerator:

RowsAtCompileTime
ColsAtCompileTime
ColsAtCompileTimeMinusOne

Definition at line 25 of file UpperBidiagonalization.h.

         {
      RowsAtCompileTime = MatrixType::RowsAtCompileTime,
      ColsAtCompileTime = MatrixType::ColsAtCompileTime,
      ColsAtCompileTimeMinusOne = internal::decrement_size<ColsAtCompileTime>::ret
    };

Constructor & Destructor Documentation

template<typename _MatrixType>

Eigen::internal::UpperBidiagonalization< _MatrixType >::UpperBidiagonalization ( ) [inline]

Default Constructor.

The default constructor is useful in cases in which the user intends to perform decompositions via Bidiagonalization::compute(const MatrixType&).

Definition at line 54 of file UpperBidiagonalization.h.

: m_householder(), m_bidiagonal(), m_isInitialized(false) {}

template<typename _MatrixType>

Eigen::internal::UpperBidiagonalization< _MatrixType >::UpperBidiagonalization ( const MatrixType & matrix ) [inline, explicit]

Definition at line 56 of file UpperBidiagonalization.h.

      : m_householder(matrix.rows(), matrix.cols()),
        m_bidiagonal(matrix.cols(), matrix.cols()),
        m_isInitialized(false)
    {
      compute(matrix);
    }

Member Function Documentation

template<typename _MatrixType>

const BidiagonalType& Eigen::internal::UpperBidiagonalization< _MatrixType >::bidiagonal ( ) const [inline]

Definition at line 68 of file UpperBidiagonalization.h.

{ return m_bidiagonal; }

template<typename _MatrixType >

UpperBidiagonalization< _MatrixType > & Eigen::internal::UpperBidiagonalization< _MatrixType >::compute ( const MatrixType & matrix )

Definition at line 379 of file UpperBidiagonalization.h.

{
  Index rows = matrix.rows();
  Index cols = matrix.cols();
  EIGEN_ONLY_USED_FOR_DEBUG(rows);
  EIGEN_ONLY_USED_FOR_DEBUG(cols);

  eigen_assert(rows >= cols && "UpperBidiagonalization is only for Arices satisfying rows>=cols.");

  m_householder = matrix;
  upperbidiagonalization_inplace_blocked(m_householder, m_bidiagonal);

  m_isInitialized = true;
  return *this;
}

template<typename _MatrixType >

UpperBidiagonalization< _MatrixType > & Eigen::internal::UpperBidiagonalization< _MatrixType >::computeUnblocked ( const MatrixType & matrix )

Definition at line 357 of file UpperBidiagonalization.h.

{
  Index rows = matrix.rows();
  Index cols = matrix.cols();
  EIGEN_ONLY_USED_FOR_DEBUG(cols);

  eigen_assert(rows >= cols && "UpperBidiagonalization is only for Arices satisfying rows>=cols.");

  m_householder = matrix;

  ColVectorType temp(rows);

  upperbidiagonalization_inplace_unblocked(m_householder,
                                           &(m_bidiagonal.template diagonal<0>().coeffRef(0)),
                                           &(m_bidiagonal.template diagonal<1>().coeffRef(0)),
                                           temp.data());

  m_isInitialized = true;
  return *this;
}

template<typename _MatrixType>

const MatrixType& Eigen::internal::UpperBidiagonalization< _MatrixType >::householder ( ) const [inline]

Definition at line 67 of file UpperBidiagonalization.h.

{ return m_householder; }

template<typename _MatrixType>

const HouseholderUSequenceType Eigen::internal::UpperBidiagonalization< _MatrixType >::householderU ( ) const [inline]

Definition at line 70 of file UpperBidiagonalization.h.

    {
      eigen_assert(m_isInitialized && "UpperBidiagonalization is not initialized.");
      return HouseholderUSequenceType(m_householder, m_householder.diagonal().conjugate());
    }

template<typename _MatrixType>

const HouseholderVSequenceType Eigen::internal::UpperBidiagonalization< _MatrixType >::householderV ( ) [inline]

Definition at line 76 of file UpperBidiagonalization.h.

    {
      eigen_assert(m_isInitialized && "UpperBidiagonalization is not initialized.");
      return HouseholderVSequenceType(m_householder.conjugate(), m_householder.const_derived().template diagonal<1>())
             .setLength(m_householder.cols()-1)
             .setShift(1);
    }
