#include <PaStiXSupport.h>

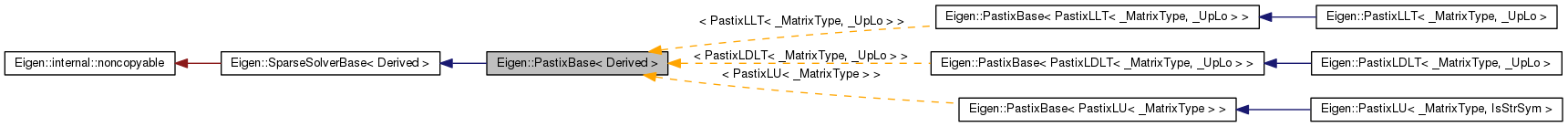

Inheritance diagram for Eigen::PastixBase< Derived >:

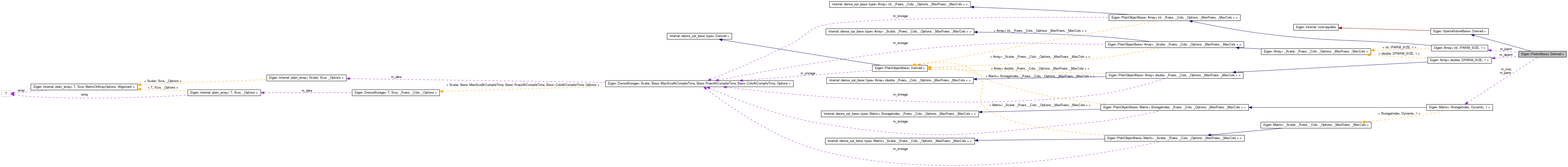

Collaboration diagram for Eigen::PastixBase< Derived >:

Public Types
enum	{ ColsAtCompileTime = MatrixType::ColsAtCompileTime, MaxColsAtCompileTime = MatrixType::MaxColsAtCompileTime }
typedef internal::pastix_traits < Derived >::MatrixType	_MatrixType
typedef _MatrixType	MatrixType
typedef MatrixType::Scalar	Scalar
typedef MatrixType::RealScalar	RealScalar
typedef MatrixType::StorageIndex	StorageIndex
typedef Matrix< Scalar, Dynamic, 1 >	Vector
typedef SparseMatrix< Scalar, ColMajor >	ColSpMatrix
Public Member Functions
	PastixBase ()
	~PastixBase ()
template<typename Rhs , typename Dest >
bool	_solve_impl (const MatrixBase< Rhs > &b, MatrixBase< Dest > &x) const
Array< StorageIndex, IPARM_SIZE, 1 > &	iparm ()
int &	iparm (int idxparam)
Array< double, DPARM_SIZE, 1 > &	dparm ()
double &	dparm (int idxparam)
Index	cols () const
Index	rows () const
ComputationInfo	info () const
	Reports whether previous computation was successful.
Protected Types
typedef SparseSolverBase< Derived >	Base
Protected Member Functions
void	init ()
void	analyzePattern (ColSpMatrix &mat)
void	factorize (ColSpMatrix &mat)
void	clean ()
void	compute (ColSpMatrix &mat)
Protected Attributes
int	m_initisOk
int	m_analysisIsOk
int	m_factorizationIsOk
ComputationInfo	m_info
pastix_data_t *	m_pastixdata
int	m_comm
Array< int, IPARM_SIZE, 1 >	m_iparm
Array< double, DPARM_SIZE, 1 >	m_dparm
Matrix< StorageIndex, Dynamic, 1 >	m_perm
Matrix< StorageIndex, Dynamic, 1 >	m_invp
int	m_size

Detailed Description

template<class Derived>
class Eigen::PastixBase< Derived >

Definition at line 128 of file PaStiXSupport.h.

Member Typedef Documentation

template<class Derived>

typedef internal::pastix_traits<Derived>::MatrixType Eigen::PastixBase< Derived >::_MatrixType

Definition at line 137 of file PaStiXSupport.h.

template<class Derived>

typedef SparseSolverBase<Derived> Eigen::PastixBase< Derived >::Base [protected]

Reimplemented in Eigen::PastixLDLT< _MatrixType, _UpLo >, Eigen::PastixLLT< _MatrixType, _UpLo >, and Eigen::PastixLU< _MatrixType, IsStrSym >.

Definition at line 131 of file PaStiXSupport.h.

template<class Derived>

typedef SparseMatrix<Scalar, ColMajor> Eigen::PastixBase< Derived >::ColSpMatrix

Reimplemented in Eigen::PastixLDLT< _MatrixType, _UpLo >, Eigen::PastixLLT< _MatrixType, _UpLo >, and Eigen::PastixLU< _MatrixType, IsStrSym >.

Definition at line 143 of file PaStiXSupport.h.

template<class Derived>

typedef _MatrixType Eigen::PastixBase< Derived >::MatrixType

Reimplemented in Eigen::PastixLDLT< _MatrixType, _UpLo >, Eigen::PastixLLT< _MatrixType, _UpLo >, and Eigen::PastixLU< _MatrixType, IsStrSym >.

Definition at line 138 of file PaStiXSupport.h.

template<class Derived>

typedef MatrixType::RealScalar Eigen::PastixBase< Derived >::RealScalar

Definition at line 140 of file PaStiXSupport.h.

template<class Derived>

typedef MatrixType::Scalar Eigen::PastixBase< Derived >::Scalar

Definition at line 139 of file PaStiXSupport.h.

template<class Derived>

typedef MatrixType::StorageIndex Eigen::PastixBase< Derived >::StorageIndex

Reimplemented in Eigen::PastixLU< _MatrixType, IsStrSym >.

Definition at line 141 of file PaStiXSupport.h.

template<class Derived>

typedef Matrix<Scalar,Dynamic,1> Eigen::PastixBase< Derived >::Vector

Definition at line 142 of file PaStiXSupport.h.

Member Enumeration Documentation

template<class Derived>

anonymous enum

Enumerator:

ColsAtCompileTime
MaxColsAtCompileTime

Definition at line 144 of file PaStiXSupport.h.

         {
      ColsAtCompileTime = MatrixType::ColsAtCompileTime,
      MaxColsAtCompileTime = MatrixType::MaxColsAtCompileTime
    };

Constructor & Destructor Documentation

template<class Derived>

Eigen::PastixBase< Derived >::PastixBase ( ) [inline]

Definition at line 151 of file PaStiXSupport.h.

                 : m_initisOk(false), m_analysisIsOk(false), m_factorizationIsOk(false), m_pastixdata(0), m_size(0)
    {
      init();
    }

template<class Derived>

Eigen::PastixBase< Derived >::~PastixBase ( ) [inline]

Definition at line 156 of file PaStiXSupport.h.

    {
      clean();
    }

Member Function Documentation

template<typename Base >

template<typename Rhs , typename Dest >

bool Eigen::PastixBase< Base >::_solve_impl	(	const MatrixBase< Rhs > &	b,
		MatrixBase< Dest > &	x
	)		const

Definition at line 367 of file PaStiXSupport.h.

{
  eigen_assert(m_isInitialized && "The matrix should be factorized first");
  EIGEN_STATIC_ASSERT((Dest::Flags&RowMajorBit)==0,
                     THIS_METHOD_IS_ONLY_FOR_COLUMN_MAJOR_MATRICES);
  int rhs = 1;

  x = b; /* on return, x is overwritten by the computed solution */

  for (int i = 0; i < b.cols(); i++){
    m_iparm[IPARM_START_TASK]          = API_TASK_SOLVE;
    m_iparm[IPARM_END_TASK]            = API_TASK_REFINE;

    internal::eigen_pastix(&m_pastixdata, MPI_COMM_WORLD, internal::convert_index<int>(x.rows()), 0, 0, 0,
                           m_perm.data(), m_invp.data(), &x(0, i), rhs, m_iparm.data(), m_dparm.data());
  }

  // Check the returned error
  m_info = m_iparm(IPARM_ERROR_NUMBER)==0 ? Success : NumericalIssue;

  return m_iparm(IPARM_ERROR_NUMBER)==0;
}

template<class Derived >

void Eigen::PastixBase< Derived >::analyzePattern ( ColSpMatrix & mat ) [protected]

Definition at line 307 of file PaStiXSupport.h.

{
  eigen_assert(m_initisOk && "The initialization of PaSTiX failed");

  // clean previous calls
  if(m_size>0)
    clean();

  m_size = internal::convert_index<int>(mat.rows());
  m_perm.resize(m_size);
  m_invp.resize(m_size);

  m_iparm(IPARM_START_TASK) = API_TASK_ORDERING;
  m_iparm(IPARM_END_TASK) = API_TASK_ANALYSE;
  internal::eigen_pastix(&m_pastixdata, MPI_COMM_WORLD, m_size, mat.outerIndexPtr(), mat.innerIndexPtr(),
               mat.valuePtr(), m_perm.data(), m_invp.data(), 0, 0, m_iparm.data(), m_dparm.data());

  // Check the returned error
  if(m_iparm(IPARM_ERROR_NUMBER))
  {
    m_info = NumericalIssue;
    m_analysisIsOk = false;
  }
  else
  {
    m_info = Success;
    m_analysisIsOk = true;
  }
}

template<class Derived>

void Eigen::PastixBase< Derived >::clean ( ) [inline, protected]

Definition at line 230 of file PaStiXSupport.h.

    {
      eigen_assert(m_initisOk && "The Pastix structure should be allocated first");
      m_iparm(IPARM_START_TASK) = API_TASK_CLEAN;
      m_iparm(IPARM_END_TASK) = API_TASK_CLEAN;
      internal::eigen_pastix(&m_pastixdata, MPI_COMM_WORLD, 0, 0, 0, (Scalar*)0,
                             m_perm.data(), m_invp.data(), 0, 0, m_iparm.data(), m_dparm.data());
    }

template<class Derived>

Index Eigen::PastixBase< Derived >::cols ( void ) const [inline]

Definition at line 201 of file PaStiXSupport.h.

{ return m_size; }

template<class Derived >

void Eigen::PastixBase< Derived >::compute ( ColSpMatrix & mat ) [protected]

Definition at line 295 of file PaStiXSupport.h.

{
  eigen_assert(mat.rows() == mat.cols() && "The input matrix should be squared");

  analyzePattern(mat);
  factorize(mat);

  m_iparm(IPARM_MATRIX_VERIFICATION) = API_NO;
}

template<class Derived>

Array<double,DPARM_SIZE,1>& Eigen::PastixBase< Derived >::dparm ( ) [inline]

Returns a reference to the double vector DPARM of PaStiX parameters The statistics related to the different phases of factorization and solve are saved here as well

See also:: analyzePattern() factorize()

Definition at line 187 of file PaStiXSupport.h.

    {
      return m_dparm;
    }

template<class Derived>

double& Eigen::PastixBase< Derived >::dparm ( int idxparam ) [inline]

Return a reference to a particular index parameter of the DPARM vector

See also:: dparm()

Definition at line 196 of file PaStiXSupport.h.

    {
      return m_dparm(idxparam);
    }

template<class Derived >

void Eigen::PastixBase< Derived >::factorize ( ColSpMatrix & mat ) [protected]

Definition at line 338 of file PaStiXSupport.h.

{
//   if(&m_cpyMat != &mat) m_cpyMat = mat;
  eigen_assert(m_analysisIsOk && "The analysis phase should be called before the factorization phase");
  m_iparm(IPARM_START_TASK) = API_TASK_NUMFACT;
  m_iparm(IPARM_END_TASK) = API_TASK_NUMFACT;
  m_size = internal::convert_index<int>(mat.rows());

  internal::eigen_pastix(&m_pastixdata, MPI_COMM_WORLD, m_size, mat.outerIndexPtr(), mat.innerIndexPtr(),
               mat.valuePtr(), m_perm.data(), m_invp.data(), 0, 0, m_iparm.data(), m_dparm.data());

  // Check the returned error
  if(m_iparm(IPARM_ERROR_NUMBER))
  {
    m_info = NumericalIssue;
    m_factorizationIsOk = false;
    m_isInitialized = false;
  }
  else
  {
    m_info = Success;
    m_factorizationIsOk = true;
    m_isInitialized = true;
  }
}

template<class Derived>

ComputationInfo Eigen::PastixBase< Derived >::info ( ) const [inline]

Reports whether previous computation was successful.

Returns:: Success if computation was succesful, NumericalIssue if the PaStiX reports a problem InvalidInput if the input matrix is invalid

See also:: iparm()

Definition at line 212 of file PaStiXSupport.h.

    {
      eigen_assert(m_isInitialized && "Decomposition is not initialized.");
      return m_info;
    }

template<class Derived >

void Eigen::PastixBase< Derived >::init ( ) [protected]

Initialize the PaStiX data structure. A first call to this function fills iparm and dparm with the default PaStiX parameters

See also:: iparm() dparm()

Reimplemented in Eigen::PastixLDLT< _MatrixType, _UpLo >, Eigen::PastixLLT< _MatrixType, _UpLo >, and Eigen::PastixLU< _MatrixType, IsStrSym >.

Definition at line 259 of file PaStiXSupport.h.

{
  m_size = 0;
  m_iparm.setZero(IPARM_SIZE);
  m_dparm.setZero(DPARM_SIZE);

  m_iparm(IPARM_MODIFY_PARAMETER) = API_NO;
  pastix(&m_pastixdata, MPI_COMM_WORLD,
         0, 0, 0, 0,
         0, 0, 0, 1, m_iparm.data(), m_dparm.data());

  m_iparm[IPARM_MATRIX_VERIFICATION] = API_NO;
  m_iparm[IPARM_VERBOSE]             = API_VERBOSE_NOT;
  m_iparm[IPARM_ORDERING]            = API_ORDER_SCOTCH;
  m_iparm[IPARM_INCOMPLETE]          = API_NO;
  m_iparm[IPARM_OOC_LIMIT]           = 2000;
  m_iparm[IPARM_RHS_MAKING]          = API_RHS_B;
  m_iparm(IPARM_MATRIX_VERIFICATION) = API_NO;

  m_iparm(IPARM_START_TASK) = API_TASK_INIT;
  m_iparm(IPARM_END_TASK) = API_TASK_INIT;
  internal::eigen_pastix(&m_pastixdata, MPI_COMM_WORLD, 0, 0, 0, (Scalar*)0,
                         0, 0, 0, 0, m_iparm.data(), m_dparm.data());

  // Check the returned error
  if(m_iparm(IPARM_ERROR_NUMBER)) {
    m_info = InvalidInput;
    m_initisOk = false;
  }
  else {
    m_info = Success;
    m_initisOk = true;
  }
}

template<class Derived>

Array<StorageIndex,IPARM_SIZE,1>& Eigen::PastixBase< Derived >::iparm ( ) [inline]

Returns a reference to the integer vector IPARM of PaStiX parameters to modify the default parameters. The statistics related to the different phases of factorization and solve are saved here as well

See also:: analyzePattern() factorize()

Definition at line 169 of file PaStiXSupport.h.

    {
      return m_iparm;
    }

template<class Derived>

int& Eigen::PastixBase< Derived >::iparm ( int idxparam ) [inline]

Return a reference to a particular index parameter of the IPARM vector

See also:: iparm()

Definition at line 178 of file PaStiXSupport.h.

    {
      return m_iparm(idxparam);
    }

template<class Derived>

Index Eigen::PastixBase< Derived >::rows ( void ) const [inline]

Definition at line 202 of file PaStiXSupport.h.

{ return m_size; }

Member Data Documentation

template<class Derived>

int Eigen::PastixBase< Derived >::m_analysisIsOk [protected]

Definition at line 242 of file PaStiXSupport.h.

template<class Derived>

int Eigen::PastixBase< Derived >::m_comm [mutable, protected]

Definition at line 246 of file PaStiXSupport.h.

template<class Derived>

Array<double,DPARM_SIZE,1> Eigen::PastixBase< Derived >::m_dparm [mutable, protected]

Definition at line 248 of file PaStiXSupport.h.

template<class Derived>

int Eigen::PastixBase< Derived >::m_factorizationIsOk [protected]

Definition at line 243 of file PaStiXSupport.h.

template<class Derived>

ComputationInfo Eigen::PastixBase< Derived >::m_info [mutable, protected]

Definition at line 244 of file PaStiXSupport.h.

template<class Derived>

int Eigen::PastixBase< Derived >::m_initisOk [protected]

Definition at line 241 of file PaStiXSupport.h.

template<class Derived>

Matrix<StorageIndex,Dynamic,1> Eigen::PastixBase< Derived >::m_invp [mutable, protected]

Definition at line 250 of file PaStiXSupport.h.

template<class Derived>

Array<int,IPARM_SIZE,1> Eigen::PastixBase< Derived >::m_iparm [mutable, protected]

Definition at line 247 of file PaStiXSupport.h.

template<class Derived>

pastix_data_t* Eigen::PastixBase< Derived >::m_pastixdata [mutable, protected]

Definition at line 245 of file PaStiXSupport.h.

template<class Derived>

Matrix<StorageIndex,Dynamic,1> Eigen::PastixBase< Derived >::m_perm [mutable, protected]

Definition at line 249 of file PaStiXSupport.h.

template<class Derived>

int Eigen::PastixBase< Derived >::m_size [mutable, protected]

Definition at line 251 of file PaStiXSupport.h.

The documentation for this class was generated from the following file:

PaStiXSupport.h

Public Types

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Detailed Description

template<class Derived> class Eigen::PastixBase< Derived >

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<class Derived>
class Eigen::PastixBase< Derived >
