#include <SparseLUImpl.h>

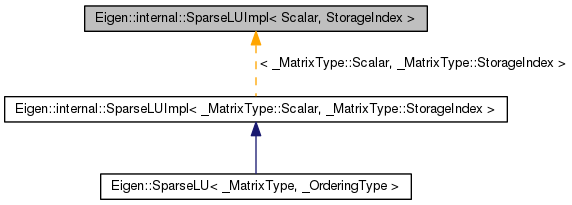

Inheritance diagram for Eigen::internal::SparseLUImpl< Scalar, StorageIndex >:

Public Types
typedef Matrix< Scalar, Dynamic, 1 >	ScalarVector
typedef Matrix< StorageIndex, Dynamic, 1 >	IndexVector
typedef Matrix< Scalar, Dynamic, Dynamic, ColMajor >	ScalarMatrix
typedef Map< ScalarMatrix, 0, OuterStride<> >	MappedMatrixBlock
typedef ScalarVector::RealScalar	RealScalar
typedef Ref< Matrix< Scalar, Dynamic, 1 > >	BlockScalarVector
typedef Ref< Matrix < StorageIndex, Dynamic, 1 > >	BlockIndexVector
typedef LU_GlobalLU_t < IndexVector, ScalarVector >	GlobalLU_t
typedef SparseMatrix< Scalar, ColMajor, StorageIndex >	MatrixType
Protected Member Functions
template<typename VectorType >
Index	expand (VectorType &vec, Index &length, Index nbElts, Index keep_prev, Index &num_expansions)
Index	memInit (Index m, Index n, Index annz, Index lwork, Index fillratio, Index panel_size, GlobalLU_t &glu)
	Allocate various working space for the numerical factorization phase.
template<typename VectorType >
Index	memXpand (VectorType &vec, Index &maxlen, Index nbElts, MemType memtype, Index &num_expansions)
	Expand the existing storage.
void	heap_relax_snode (const Index n, IndexVector &et, const Index relax_columns, IndexVector &descendants, IndexVector &relax_end)
	Identify the initial relaxed supernodes.
void	relax_snode (const Index n, IndexVector &et, const Index relax_columns, IndexVector &descendants, IndexVector &relax_end)
	Identify the initial relaxed supernodes.
Index	snode_dfs (const Index jcol, const Index kcol, const MatrixType &mat, IndexVector &xprune, IndexVector &marker, GlobalLU_t &glu)
Index	snode_bmod (const Index jcol, const Index fsupc, ScalarVector &dense, GlobalLU_t &glu)
Index	pivotL (const Index jcol, const RealScalar &diagpivotthresh, IndexVector &perm_r, IndexVector &iperm_c, Index &pivrow, GlobalLU_t &glu)
	Performs the numerical pivotin on the current column of L, and the CDIV operation.
template<typename Traits >
void	dfs_kernel (const StorageIndex jj, IndexVector &perm_r, Index &nseg, IndexVector &panel_lsub, IndexVector &segrep, Ref< IndexVector > repfnz_col, IndexVector &xprune, Ref< IndexVector > marker, IndexVector &parent, IndexVector &xplore, GlobalLU_t &glu, Index &nextl_col, Index krow, Traits &traits)
void	panel_dfs (const Index m, const Index w, const Index jcol, MatrixType &A, IndexVector &perm_r, Index &nseg, ScalarVector &dense, IndexVector &panel_lsub, IndexVector &segrep, IndexVector &repfnz, IndexVector &xprune, IndexVector &marker, IndexVector &parent, IndexVector &xplore, GlobalLU_t &glu)
	Performs a symbolic factorization on a panel of columns [jcol, jcol+w)
void	panel_bmod (const Index m, const Index w, const Index jcol, const Index nseg, ScalarVector &dense, ScalarVector &tempv, IndexVector &segrep, IndexVector &repfnz, GlobalLU_t &glu)
	Performs numeric block updates (sup-panel) in topological order.
Index	column_dfs (const Index m, const Index jcol, IndexVector &perm_r, Index maxsuper, Index &nseg, BlockIndexVector lsub_col, IndexVector &segrep, BlockIndexVector repfnz, IndexVector &xprune, IndexVector &marker, IndexVector &parent, IndexVector &xplore, GlobalLU_t &glu)
	Performs a symbolic factorization on column jcol and decide the supernode boundary.
Index	column_bmod (const Index jcol, const Index nseg, BlockScalarVector dense, ScalarVector &tempv, BlockIndexVector segrep, BlockIndexVector repfnz, Index fpanelc, GlobalLU_t &glu)
	Performs numeric block updates (sup-col) in topological order.
Index	copy_to_ucol (const Index jcol, const Index nseg, IndexVector &segrep, BlockIndexVector repfnz, IndexVector &perm_r, BlockScalarVector dense, GlobalLU_t &glu)
	Performs numeric block updates (sup-col) in topological order.
void	pruneL (const Index jcol, const IndexVector &perm_r, const Index pivrow, const Index nseg, const IndexVector &segrep, BlockIndexVector repfnz, IndexVector &xprune, GlobalLU_t &glu)
	Prunes the L-structure.
void	countnz (const Index n, Index &nnzL, Index &nnzU, GlobalLU_t &glu)
	Count Nonzero elements in the factors.
void	fixupL (const Index n, const IndexVector &perm_r, GlobalLU_t &glu)
	Fix up the data storage lsub for L-subscripts.
Friends
struct	column_dfs_traits

Detailed Description

template<typename Scalar, typename StorageIndex>
class Eigen::internal::SparseLUImpl< Scalar, StorageIndex >

Base class for sparseLU

Definition at line 20 of file SparseLUImpl.h.

Member Typedef Documentation

template<typename Scalar, typename StorageIndex>

typedef Ref<Matrix<StorageIndex,Dynamic,1> > Eigen::internal::SparseLUImpl< Scalar, StorageIndex >::BlockIndexVector

Definition at line 29 of file SparseLUImpl.h.

template<typename Scalar, typename StorageIndex>

typedef Ref<Matrix<Scalar,Dynamic,1> > Eigen::internal::SparseLUImpl< Scalar, StorageIndex >::BlockScalarVector

Definition at line 28 of file SparseLUImpl.h.

template<typename Scalar, typename StorageIndex>

typedef LU_GlobalLU_t<IndexVector, ScalarVector> Eigen::internal::SparseLUImpl< Scalar, StorageIndex >::GlobalLU_t

Definition at line 30 of file SparseLUImpl.h.

template<typename Scalar, typename StorageIndex>

typedef Matrix<StorageIndex,Dynamic,1> Eigen::internal::SparseLUImpl< Scalar, StorageIndex >::IndexVector

Reimplemented in Eigen::SparseLU< _MatrixType, _OrderingType >.

Definition at line 24 of file SparseLUImpl.h.

template<typename Scalar, typename StorageIndex>

typedef Map<ScalarMatrix, 0, OuterStride<> > Eigen::internal::SparseLUImpl< Scalar, StorageIndex >::MappedMatrixBlock

Definition at line 26 of file SparseLUImpl.h.

template<typename Scalar, typename StorageIndex>

typedef SparseMatrix<Scalar,ColMajor,StorageIndex> Eigen::internal::SparseLUImpl< Scalar, StorageIndex >::MatrixType

Reimplemented in Eigen::SparseLU< _MatrixType, _OrderingType >.

Definition at line 31 of file SparseLUImpl.h.

template<typename Scalar, typename StorageIndex>

typedef ScalarVector::RealScalar Eigen::internal::SparseLUImpl< Scalar, StorageIndex >::RealScalar

Reimplemented in Eigen::SparseLU< _MatrixType, _OrderingType >.

Definition at line 27 of file SparseLUImpl.h.

template<typename Scalar, typename StorageIndex>

typedef Matrix<Scalar,Dynamic,Dynamic,ColMajor> Eigen::internal::SparseLUImpl< Scalar, StorageIndex >::ScalarMatrix

Definition at line 25 of file SparseLUImpl.h.

template<typename Scalar, typename StorageIndex>

typedef Matrix<Scalar,Dynamic,1> Eigen::internal::SparseLUImpl< Scalar, StorageIndex >::ScalarVector

Reimplemented in Eigen::SparseLU< _MatrixType, _OrderingType >.

Definition at line 23 of file SparseLUImpl.h.

Member Function Documentation

template<typename Scalar , typename StorageIndex >

Index Eigen::internal::SparseLUImpl< Scalar, StorageIndex >::column_bmod	(	const Index	jcol,
		const Index	nseg,
		BlockScalarVector	dense,
		ScalarVector &	tempv,
		BlockIndexVector	segrep,
		BlockIndexVector	repfnz,
		Index	fpanelc,
		GlobalLU_t &	glu
	)		`[protected]`

Performs numeric block updates (sup-col) in topological order.

Parameters:

jcol	current column to update
nseg	Number of segments in the U part
dense	Store the full representation of the column
tempv	working array
segrep	segment representative ...
repfnz	??? First nonzero column in each row ??? ...
fpanelc	First column in the current panel
glu	Global LU data.

Returns:: 0 - successful return > 0 - number of bytes allocated when run out of space

Definition at line 53 of file SparseLU_column_bmod.h.

{
  Index  jsupno, k, ksub, krep, ksupno;
  Index lptr, nrow, isub, irow, nextlu, new_next, ufirst;
  Index fsupc, nsupc, nsupr, luptr, kfnz, no_zeros;
  /* krep = representative of current k-th supernode
    * fsupc =  first supernodal column
    * nsupc = number of columns in a supernode
    * nsupr = number of rows in a supernode
    * luptr = location of supernodal LU-block in storage
    * kfnz = first nonz in the k-th supernodal segment
    * no_zeros = no lf leading zeros in a supernodal U-segment
    */

  jsupno = glu.supno(jcol);
  // For each nonzero supernode segment of U[*,j] in topological order
  k = nseg - 1;
  Index d_fsupc; // distance between the first column of the current panel and the
               // first column of the current snode
  Index fst_col; // First column within small LU update
  Index segsize;
  for (ksub = 0; ksub < nseg; ksub++)
  {
    krep = segrep(k); k--;
    ksupno = glu.supno(krep);
    if (jsupno != ksupno )
    {
      // outside the rectangular supernode
      fsupc = glu.xsup(ksupno);
      fst_col = (std::max)(fsupc, fpanelc);

      // Distance from the current supernode to the current panel;
      // d_fsupc = 0 if fsupc > fpanelc
      d_fsupc = fst_col - fsupc;

      luptr = glu.xlusup(fst_col) + d_fsupc;
      lptr = glu.xlsub(fsupc) + d_fsupc;

      kfnz = repfnz(krep);
      kfnz = (std::max)(kfnz, fpanelc);

      segsize = krep - kfnz + 1;
      nsupc = krep - fst_col + 1;
      nsupr = glu.xlsub(fsupc+1) - glu.xlsub(fsupc);
      nrow = nsupr - d_fsupc - nsupc;
      Index lda = glu.xlusup(fst_col+1) - glu.xlusup(fst_col);


      // Perform a triangular solver and block update,
      // then scatter the result of sup-col update to dense
      no_zeros = kfnz - fst_col;
      if(segsize==1)
        LU_kernel_bmod<1>::run(segsize, dense, tempv, glu.lusup, luptr, lda, nrow, glu.lsub, lptr, no_zeros);
      else
        LU_kernel_bmod<Dynamic>::run(segsize, dense, tempv, glu.lusup, luptr, lda, nrow, glu.lsub, lptr, no_zeros);
    } // end if jsupno
  } // end for each segment

  // Process the supernodal portion of  L\U[*,j]
  nextlu = glu.xlusup(jcol);
  fsupc = glu.xsup(jsupno);

  // copy the SPA dense into L\U[*,j]
  Index mem;
  new_next = nextlu + glu.xlsub(fsupc + 1) - glu.xlsub(fsupc);
  Index offset = internal::first_multiple<Index>(new_next, internal::packet_traits<Scalar>::size) - new_next;
  if(offset)
    new_next += offset;
  while (new_next > glu.nzlumax )
  {
    mem = memXpand<ScalarVector>(glu.lusup, glu.nzlumax, nextlu, LUSUP, glu.num_expansions);
    if (mem) return mem;
  }

  for (isub = glu.xlsub(fsupc); isub < glu.xlsub(fsupc+1); isub++)
  {
    irow = glu.lsub(isub);
    glu.lusup(nextlu) = dense(irow);
    dense(irow) = Scalar(0.0);
    ++nextlu;
  }

  if(offset)
  {
    glu.lusup.segment(nextlu,offset).setZero();
    nextlu += offset;
  }
  glu.xlusup(jcol + 1) = StorageIndex(nextlu);  // close L\U(*,jcol);

  /* For more updates within the panel (also within the current supernode),
   * should start from the first column of the panel, or the first column
   * of the supernode, whichever is bigger. There are two cases:
   *  1) fsupc < fpanelc, then fst_col <-- fpanelc
   *  2) fsupc >= fpanelc, then fst_col <-- fsupc
   */
  fst_col = (std::max)(fsupc, fpanelc);

  if (fst_col  < jcol)
  {
    // Distance between the current supernode and the current panel
    // d_fsupc = 0 if fsupc >= fpanelc
    d_fsupc = fst_col - fsupc;

    lptr = glu.xlsub(fsupc) + d_fsupc;
    luptr = glu.xlusup(fst_col) + d_fsupc;
    nsupr = glu.xlsub(fsupc+1) - glu.xlsub(fsupc); // leading dimension
    nsupc = jcol - fst_col; // excluding jcol
    nrow = nsupr - d_fsupc - nsupc;

    // points to the beginning of jcol in snode L\U(jsupno)
    ufirst = glu.xlusup(jcol) + d_fsupc;
    Index lda = glu.xlusup(jcol+1) - glu.xlusup(jcol);
    MappedMatrixBlock A( &(glu.lusup.data()[luptr]), nsupc, nsupc, OuterStride<>(lda) );
    VectorBlock<ScalarVector> u(glu.lusup, ufirst, nsupc);
    u = A.template triangularView<UnitLower>().solve(u);

    new (&A) MappedMatrixBlock ( &(glu.lusup.data()[luptr+nsupc]), nrow, nsupc, OuterStride<>(lda) );
    VectorBlock<ScalarVector> l(glu.lusup, ufirst+nsupc, nrow);
    l.noalias() -= A * u;

  } // End if fst_col
  return 0;
}

template<typename Scalar , typename StorageIndex >

Index Eigen::internal::SparseLUImpl< Scalar, StorageIndex >::column_dfs	(	const Index	m,
		const Index	jcol,
		IndexVector &	perm_r,
		Index	maxsuper,
		Index &	nseg,
		BlockIndexVector	lsub_col,
		IndexVector &	segrep,
		BlockIndexVector	repfnz,
		IndexVector &	xprune,
		IndexVector &	marker,
		IndexVector &	parent,
		IndexVector &	xplore,
		GlobalLU_t &	glu
	)		`[protected]`

Performs a symbolic factorization on column jcol and decide the supernode boundary.

A supernode representative is the last column of a supernode. The nonzeros in U[*,j] are segments that end at supernodes representatives. The routine returns a list of the supernodal representatives in topological order of the dfs that generates them. The location of the first nonzero in each supernodal segment (supernodal entry location) is also returned.

Parameters:

	m	number of rows in the matrix
	jcol	Current column
	perm_r	Row permutation
	maxsuper	Maximum number of column allowed in a supernode
[in,out]	nseg	Number of segments in current U[*,j] - new segments appended
	lsub_col	defines the rhs vector to start the dfs
[in,out]	segrep	Segment representatives - new segments appended
	repfnz	First nonzero location in each row
	xprune
	marker	marker[i] == jj, if i was visited during dfs of current column jj;
	parent
	xplore	working array
	glu	global LU data

Returns:: 0 success > 0 number of bytes allocated when run out of space

Definition at line 93 of file SparseLU_column_dfs.h.

{

  Index jsuper = glu.supno(jcol);
  Index nextl = glu.xlsub(jcol);
  VectorBlock<IndexVector> marker2(marker, 2*m, m);


  column_dfs_traits<IndexVector, ScalarVector> traits(jcol, jsuper, glu, *this);

  // For each nonzero in A(*,jcol) do dfs
  for (Index k = 0; ((k < m) ? lsub_col[k] != emptyIdxLU : false) ; k++)
  {
    Index krow = lsub_col(k);
    lsub_col(k) = emptyIdxLU;
    Index kmark = marker2(krow);

    // krow was visited before, go to the next nonz;
    if (kmark == jcol) continue;

    dfs_kernel(StorageIndex(jcol), perm_r, nseg, glu.lsub, segrep, repfnz, xprune, marker2, parent,
                   xplore, glu, nextl, krow, traits);
  } // for each nonzero ...

  Index fsupc;
  StorageIndex nsuper = glu.supno(jcol);
  StorageIndex jcolp1 = StorageIndex(jcol) + 1;
  Index jcolm1 = jcol - 1;

  // check to see if j belongs in the same supernode as j-1
  if ( jcol == 0 )
  { // Do nothing for column 0
    nsuper = glu.supno(0) = 0 ;
  }
  else
  {
    fsupc = glu.xsup(nsuper);
    StorageIndex jptr = glu.xlsub(jcol); // Not yet compressed
    StorageIndex jm1ptr = glu.xlsub(jcolm1);

    // Use supernodes of type T2 : see SuperLU paper
    if ( (nextl-jptr != jptr-jm1ptr-1) ) jsuper = emptyIdxLU;

    // Make sure the number of columns in a supernode doesn't
    // exceed threshold
    if ( (jcol - fsupc) >= maxsuper) jsuper = emptyIdxLU;

    /* If jcol starts a new supernode, reclaim storage space in
     * glu.lsub from previous supernode. Note we only store
     * the subscript set of the first and last columns of
     * a supernode. (first for num values, last for pruning)
     */
    if (jsuper == emptyIdxLU)
    { // starts a new supernode
      if ( (fsupc < jcolm1-1) )
      { // >= 3 columns in nsuper
        StorageIndex ito = glu.xlsub(fsupc+1);
        glu.xlsub(jcolm1) = ito;
        StorageIndex istop = ito + jptr - jm1ptr;
        xprune(jcolm1) = istop; // intialize xprune(jcol-1)
        glu.xlsub(jcol) = istop;

        for (StorageIndex ifrom = jm1ptr; ifrom < nextl; ++ifrom, ++ito)
          glu.lsub(ito) = glu.lsub(ifrom);
        nextl = ito;  // = istop + length(jcol)
      }
      nsuper++;
      glu.supno(jcol) = nsuper;
    } // if a new supernode
  } // end else:  jcol > 0

  // Tidy up the pointers before exit
  glu.xsup(nsuper+1) = jcolp1;
  glu.supno(jcolp1) = nsuper;
  xprune(jcol) = StorageIndex(nextl);  // Intialize upper bound for pruning
  glu.xlsub(jcolp1) = StorageIndex(nextl);

  return 0;
}

template<typename Scalar , typename StorageIndex >

Index Eigen::internal::SparseLUImpl< Scalar, StorageIndex >::copy_to_ucol	(	const Index	jcol,
		const Index	nseg,
		IndexVector &	segrep,
		BlockIndexVector	repfnz,
		IndexVector &	perm_r,
		BlockScalarVector	dense,
		GlobalLU_t &	glu
	)		`[protected]`

Performs numeric block updates (sup-col) in topological order.

Parameters:

jcol	current column to update
nseg	Number of segments in the U part
segrep	segment representative ...
repfnz	First nonzero column in each row ...
perm_r	Row permutation
dense	Store the full representation of the column
glu	Global LU data.

Returns:: 0 - successful return > 0 - number of bytes allocated when run out of space

Definition at line 50 of file SparseLU_copy_to_ucol.h.

{
  Index ksub, krep, ksupno;

  Index jsupno = glu.supno(jcol);

  // For each nonzero supernode segment of U[*,j] in topological order
  Index k = nseg - 1, i;
  StorageIndex nextu = glu.xusub(jcol);
  Index kfnz, isub, segsize;
  Index new_next,irow;
  Index fsupc, mem;
  for (ksub = 0; ksub < nseg; ksub++)
  {
    krep = segrep(k); k--;
    ksupno = glu.supno(krep);
    if (jsupno != ksupno ) // should go into ucol();
    {
      kfnz = repfnz(krep);
      if (kfnz != emptyIdxLU)
      { // Nonzero U-segment
        fsupc = glu.xsup(ksupno);
        isub = glu.xlsub(fsupc) + kfnz - fsupc;
        segsize = krep - kfnz + 1;
        new_next = nextu + segsize;
        while (new_next > glu.nzumax)
        {
          mem = memXpand<ScalarVector>(glu.ucol, glu.nzumax, nextu, UCOL, glu.num_expansions);
          if (mem) return mem;
          mem = memXpand<IndexVector>(glu.usub, glu.nzumax, nextu, USUB, glu.num_expansions);
          if (mem) return mem;

        }

        for (i = 0; i < segsize; i++)
        {
          irow = glu.lsub(isub);
          glu.usub(nextu) = perm_r(irow); // Unlike the L part, the U part is stored in its final order
          glu.ucol(nextu) = dense(irow);
          dense(irow) = Scalar(0.0);
          nextu++;
          isub++;
        }

      } // end nonzero U-segment

    } // end if jsupno

  } // end for each segment
  glu.xusub(jcol + 1) = nextu; // close U(*,jcol)
  return 0;
}

template<typename Scalar , typename StorageIndex >

void Eigen::internal::SparseLUImpl< Scalar, StorageIndex >::countnz	(	const Index	n,
		Index &	nnzL,
		Index &	nnzU,
		GlobalLU_t &	glu
	)		`[protected]`

Count Nonzero elements in the factors.

Definition at line 21 of file SparseLU_Utils.h.

{
 nnzL = 0;
 nnzU = (glu.xusub)(n);
 Index nsuper = (glu.supno)(n);
 Index jlen;
 Index i, j, fsupc;
 if (n <= 0 ) return;
 // For each supernode
 for (i = 0; i <= nsuper; i++)
 {
   fsupc = glu.xsup(i);
   jlen = glu.xlsub(fsupc+1) - glu.xlsub(fsupc);

   for (j = fsupc; j < glu.xsup(i+1); j++)
   {
     nnzL += jlen;
     nnzU += j - fsupc + 1;
     jlen--;
   }
 }
}

template<typename Scalar , typename StorageIndex>

template<typename Traits >

void Eigen::internal::SparseLUImpl< Scalar, StorageIndex >::dfs_kernel	(	const StorageIndex	jj,
		IndexVector &	perm_r,
		Index &	nseg,
		IndexVector &	panel_lsub,
		IndexVector &	segrep,
		Ref< IndexVector >	repfnz_col,
		IndexVector &	xprune,
		Ref< IndexVector >	marker,
		IndexVector &	parent,
		IndexVector &	xplore,
		GlobalLU_t &	glu,
		Index &	nextl_col,
		Index	krow,
		Traits &	traits
	)		`[protected]`

Definition at line 62 of file SparseLU_panel_dfs.h.

{

  StorageIndex kmark = marker(krow);

  // For each unmarked krow of jj
  marker(krow) = jj;
  StorageIndex kperm = perm_r(krow);
  if (kperm == emptyIdxLU ) {
    // krow is in L : place it in structure of L(*, jj)
    panel_lsub(nextl_col++) = StorageIndex(krow);  // krow is indexed into A

    traits.mem_expand(panel_lsub, nextl_col, kmark);
  }
  else
  {
    // krow is in U : if its supernode-representative krep
    // has been explored, update repfnz(*)
    // krep = supernode representative of the current row
    StorageIndex krep = glu.xsup(glu.supno(kperm)+1) - 1;
    // First nonzero element in the current column:
    StorageIndex myfnz = repfnz_col(krep);

    if (myfnz != emptyIdxLU )
    {
      // Representative visited before
      if (myfnz > kperm ) repfnz_col(krep) = kperm;

    }
    else
    {
      // Otherwise, perform dfs starting at krep
      StorageIndex oldrep = emptyIdxLU;
      parent(krep) = oldrep;
      repfnz_col(krep) = kperm;
      StorageIndex xdfs =  glu.xlsub(krep);
      Index maxdfs = xprune(krep);

      StorageIndex kpar;
      do
      {
        // For each unmarked kchild of krep
        while (xdfs < maxdfs)
        {
          StorageIndex kchild = glu.lsub(xdfs);
          xdfs++;
          StorageIndex chmark = marker(kchild);

          if (chmark != jj )
          {
            marker(kchild) = jj;
            StorageIndex chperm = perm_r(kchild);

            if (chperm == emptyIdxLU)
            {
              // case kchild is in L: place it in L(*, j)
              panel_lsub(nextl_col++) = kchild;
              traits.mem_expand(panel_lsub, nextl_col, chmark);
            }
            else
            {
              // case kchild is in U :
              // chrep = its supernode-rep. If its rep has been explored,
              // update its repfnz(*)
              StorageIndex chrep = glu.xsup(glu.supno(chperm)+1) - 1;
              myfnz = repfnz_col(chrep);

              if (myfnz != emptyIdxLU)
              { // Visited before
                if (myfnz > chperm)
                  repfnz_col(chrep) = chperm;
              }
              else
              { // Cont. dfs at snode-rep of kchild
                xplore(krep) = xdfs;
                oldrep = krep;
                krep = chrep; // Go deeper down G(L)
                parent(krep) = oldrep;
                repfnz_col(krep) = chperm;
                xdfs = glu.xlsub(krep);
                maxdfs = xprune(krep);

              } // end if myfnz != -1
            } // end if chperm == -1

          } // end if chmark !=jj
        } // end while xdfs < maxdfs

        // krow has no more unexplored nbrs :
        //    Place snode-rep krep in postorder DFS, if this
        //    segment is seen for the first time. (Note that
        //    "repfnz(krep)" may change later.)
        //    Baktrack dfs to its parent
        if(traits.update_segrep(krep,jj))
        //if (marker1(krep) < jcol )
        {
          segrep(nseg) = krep;
          ++nseg;
          //marker1(krep) = jj;
        }

        kpar = parent(krep); // Pop recursion, mimic recursion
        if (kpar == emptyIdxLU)
          break; // dfs done
        krep = kpar;
        xdfs = xplore(krep);
        maxdfs = xprune(krep);

      } while (kpar != emptyIdxLU); // Do until empty stack

    } // end if (myfnz = -1)

  } // end if (kperm == -1)
}

template<typename Scalar , typename StorageIndex >

template<typename VectorType >

Index Eigen::internal::SparseLUImpl< Scalar, StorageIndex >::expand	(	VectorType &	vec,
		Index &	length,
		Index	nbElts,
		Index	keep_prev,
		Index &	num_expansions
	)		`[protected]`

Expand the existing storage to accomodate more fill-ins

Parameters:

	vec	Valid pointer to the vector to allocate or expand
[in,out]	length	At input, contain the current length of the vector that is to be increased. At output, length of the newly allocated vector
[in]	nbElts	Current number of elements in the factors
	keep_prev	1: use length and do not expand the vector; 0: compute new_len and expand
[in,out]	num_expansions	Number of times the memory has been expanded

Definition at line 63 of file SparseLU_Memory.h.

{

  float alpha = 1.5; // Ratio of the memory increase
  Index new_len; // New size of the allocated memory

  if(num_expansions == 0 || keep_prev)
    new_len = length ; // First time allocate requested
  else
    new_len = (std::max)(length+1,Index(alpha * length));

  VectorType old_vec; // Temporary vector to hold the previous values
  if (nbElts > 0 )
    old_vec = vec.segment(0,nbElts);

  //Allocate or expand the current vector
#ifdef EIGEN_EXCEPTIONS
  try
#endif
  {
    vec.resize(new_len);
  }
#ifdef EIGEN_EXCEPTIONS
  catch(std::bad_alloc& )
#else
  if(!vec.size())
#endif
  {
    if (!num_expansions)
    {
      // First time to allocate from LUMemInit()
      // Let LUMemInit() deals with it.
      return -1;
    }
    if (keep_prev)
    {
      // In this case, the memory length should not not be reduced
      return new_len;
    }
    else
    {
      // Reduce the size and increase again
      Index tries = 0; // Number of attempts
      do
      {
        alpha = (alpha + 1)/2;
        new_len = (std::max)(length+1,Index(alpha * length));
#ifdef EIGEN_EXCEPTIONS
        try
#endif
        {
          vec.resize(new_len);
        }
#ifdef EIGEN_EXCEPTIONS
        catch(std::bad_alloc& )
#else
        if (!vec.size())
#endif
        {
          tries += 1;
          if ( tries > 10) return new_len;
        }
      } while (!vec.size());
    }
  }
  //Copy the previous values to the newly allocated space
  if (nbElts > 0)
    vec.segment(0, nbElts) = old_vec;


  length  = new_len;
  if(num_expansions) ++num_expansions;
  return 0;
}

template<typename Scalar , typename StorageIndex >

void Eigen::internal::SparseLUImpl< Scalar, StorageIndex >::fixupL	(	const Index	n,
		const IndexVector &	perm_r,
		GlobalLU_t &	glu
	)		`[protected]`

Fix up the data storage lsub for L-subscripts.

It removes the subscripts sets for structural pruning, and applies permutation to the remaining subscripts

Definition at line 52 of file SparseLU_Utils.h.

{
  Index fsupc, i, j, k, jstart;

  StorageIndex nextl = 0;
  Index nsuper = (glu.supno)(n);

  // For each supernode
  for (i = 0; i <= nsuper; i++)
  {
    fsupc = glu.xsup(i);
    jstart = glu.xlsub(fsupc);
    glu.xlsub(fsupc) = nextl;
    for (j = jstart; j < glu.xlsub(fsupc + 1); j++)
    {
      glu.lsub(nextl) = perm_r(glu.lsub(j)); // Now indexed into P*A
      nextl++;
    }
    for (k = fsupc+1; k < glu.xsup(i+1); k++)
      glu.xlsub(k) = nextl; // other columns in supernode i
  }

  glu.xlsub(n) = nextl;
}

template<typename Scalar , typename StorageIndex >

void Eigen::internal::SparseLUImpl< Scalar, StorageIndex >::heap_relax_snode	(	const Index	n,
		IndexVector &	et,
		const Index	relax_columns,
		IndexVector &	descendants,
		IndexVector &	relax_end
	)		`[protected]`

Identify the initial relaxed supernodes.

This routine applied to a symmetric elimination tree. It assumes that the matrix has been reordered according to the postorder of the etree

Parameters:

n	The number of columns
et	elimination tree
relax_columns	Maximum number of columns allowed in a relaxed snode
descendants	Number of descendants of each node in the etree
relax_end	last column in a supernode

Definition at line 46 of file SparseLU_heap_relax_snode.h.

{

  // The etree may not be postordered, but its heap ordered
  IndexVector post;
  internal::treePostorder(StorageIndex(n), et, post); // Post order etree
  IndexVector inv_post(n+1);
  for (StorageIndex i = 0; i < n+1; ++i) inv_post(post(i)) = i; // inv_post = post.inverse()???

  // Renumber etree in postorder
  IndexVector iwork(n);
  IndexVector et_save(n+1);
  for (Index i = 0; i < n; ++i)
  {
    iwork(post(i)) = post(et(i));
  }
  et_save = et; // Save the original etree
  et = iwork;

  // compute the number of descendants of each node in the etree
  relax_end.setConstant(emptyIdxLU);
  Index j, parent;
  descendants.setZero();
  for (j = 0; j < n; j++)
  {
    parent = et(j);
    if (parent != n) // not the dummy root
      descendants(parent) += descendants(j) + 1;
  }
  // Identify the relaxed supernodes by postorder traversal of the etree
  Index snode_start; // beginning of a snode
  StorageIndex k;
  Index nsuper_et_post = 0; // Number of relaxed snodes in postordered etree
  Index nsuper_et = 0; // Number of relaxed snodes in the original etree
  StorageIndex l;
  for (j = 0; j < n; )
  {
    parent = et(j);
    snode_start = j;
    while ( parent != n && descendants(parent) < relax_columns )
    {
      j = parent;
      parent = et(j);
    }
    // Found a supernode in postordered etree, j is the last column
    ++nsuper_et_post;
    k = StorageIndex(n);
    for (Index i = snode_start; i <= j; ++i)
      k = (std::min)(k, inv_post(i));
    l = inv_post(j);
    if ( (l - k) == (j - snode_start) )  // Same number of columns in the snode
    {
      // This is also a supernode in the original etree
      relax_end(k) = l; // Record last column
      ++nsuper_et;
    }
    else
    {
      for (Index i = snode_start; i <= j; ++i)
      {
        l = inv_post(i);
        if (descendants(i) == 0)
        {
          relax_end(l) = l;
          ++nsuper_et;
        }
      }
    }
    j++;
    // Search for a new leaf
    while (descendants(j) != 0 && j < n) j++;
  } // End postorder traversal of the etree

  // Recover the original etree
  et = et_save;
}

template<typename Scalar , typename StorageIndex >

Index Eigen::internal::SparseLUImpl< Scalar, StorageIndex >::memInit	(	Index	m,
		Index	n,
		Index	annz,
		Index	lwork,
		Index	fillratio,
		Index	panel_size,
		GlobalLU_t &	glu
	)		`[protected]`

Allocate various working space for the numerical factorization phase.

Parameters:

m	number of rows of the input matrix
n	number of columns
annz	number of initial nonzeros in the matrix
lwork	if lwork=-1, this routine returns an estimated size of the required memory
glu	persistent data to facilitate multiple factors : will be deleted later ??
fillratio	estimated ratio of fill in the factors
panel_size	Size of a panel

Returns:: an estimated size of the required memory if lwork = -1; otherwise, return the size of actually allocated memory when allocation failed, and 0 on success

Note:: Unlike SuperLU, this routine does not support successive factorization with the same pattern and the same row permutation

Definition at line 151 of file SparseLU_Memory.h.

{
  Index& num_expansions = glu.num_expansions; //No memory expansions so far
  num_expansions = 0;
  glu.nzumax = glu.nzlumax = (std::min)(fillratio * (annz+1) / n, m) * n; // estimated number of nonzeros in U
  glu.nzlmax = (std::max)(Index(4), fillratio) * (annz+1) / 4; // estimated  nnz in L factor
  // Return the estimated size to the user if necessary
  Index tempSpace;
  tempSpace = (2*panel_size + 4 + LUNoMarker) * m * sizeof(Index) + (panel_size + 1) * m * sizeof(Scalar);
  if (lwork == emptyIdxLU)
  {
    Index estimated_size;
    estimated_size = (5 * n + 5) * sizeof(Index)  + tempSpace
                    + (glu.nzlmax + glu.nzumax) * sizeof(Index) + (glu.nzlumax+glu.nzumax) *  sizeof(Scalar) + n;
    return estimated_size;
  }

  // Setup the required space

  // First allocate Integer pointers for L\U factors
  glu.xsup.resize(n+1);
  glu.supno.resize(n+1);
  glu.xlsub.resize(n+1);
  glu.xlusup.resize(n+1);
  glu.xusub.resize(n+1);

  // Reserve memory for L/U factors
  do
  {
    if(     (expand<ScalarVector>(glu.lusup, glu.nzlumax, 0, 0, num_expansions)<0)
        ||  (expand<ScalarVector>(glu.ucol,  glu.nzumax,  0, 0, num_expansions)<0)
        ||  (expand<IndexVector> (glu.lsub,  glu.nzlmax,  0, 0, num_expansions)<0)
        ||  (expand<IndexVector> (glu.usub,  glu.nzumax,  0, 1, num_expansions)<0) )
    {
      //Reduce the estimated size and retry
      glu.nzlumax /= 2;
      glu.nzumax /= 2;
      glu.nzlmax /= 2;
      if (glu.nzlumax < annz ) return glu.nzlumax;
    }
  } while (!glu.lusup.size() || !glu.ucol.size() || !glu.lsub.size() || !glu.usub.size());

  ++num_expansions;
  return 0;

} // end LuMemInit

template<typename Scalar , typename StorageIndex >

template<typename VectorType >

Index Eigen::internal::SparseLUImpl< Scalar, StorageIndex >::memXpand	(	VectorType &	vec,
		Index &	maxlen,
		Index	nbElts,
		MemType	memtype,
		Index &	num_expansions
	)		`[protected]`

Expand the existing storage.

Parameters:

	vec	vector to expand
[in,out]	maxlen	On input, previous size of vec (Number of elements to copy ). on output, new size
	nbElts	current number of elements in the vector.
	memtype	Type of the element to expand
	num_expansions	Number of expansions

Returns:: 0 on success, > 0 size of the memory allocated so far

Definition at line 209 of file SparseLU_Memory.h.

{
  Index failed_size;
  if (memtype == USUB)
     failed_size = this->expand<VectorType>(vec, maxlen, nbElts, 1, num_expansions);
  else
    failed_size = this->expand<VectorType>(vec, maxlen, nbElts, 0, num_expansions);

  if (failed_size)
    return failed_size;

  return 0 ;
}

template<typename Scalar , typename StorageIndex >

void Eigen::internal::SparseLUImpl< Scalar, StorageIndex >::panel_bmod	(	const Index	m,
		const Index	w,
		const Index	jcol,
		const Index	nseg,
		ScalarVector &	dense,
		ScalarVector &	tempv,
		IndexVector &	segrep,
		IndexVector &	repfnz,
		GlobalLU_t &	glu
	)		`[protected]`

Performs numeric block updates (sup-panel) in topological order.

Before entering this routine, the original nonzeros in the panel were already copied i nto the spa[m,w]

Parameters:

m	number of rows in the matrix
w	Panel size
jcol	Starting column of the panel
nseg	Number of segments in the U part
dense	Store the full representation of the panel
tempv	working array
segrep	segment representative... first row in the segment
repfnz	First nonzero rows
glu	Global LU data.

Definition at line 56 of file SparseLU_panel_bmod.h.

{

  Index ksub,jj,nextl_col;
  Index fsupc, nsupc, nsupr, nrow;
  Index krep, kfnz;
  Index lptr; // points to the row subscripts of a supernode
  Index luptr; // ...
  Index segsize,no_zeros ;
  // For each nonz supernode segment of U[*,j] in topological order
  Index k = nseg - 1;
  const Index PacketSize = internal::packet_traits<Scalar>::size;

  for (ksub = 0; ksub < nseg; ksub++)
  { // For each updating supernode
    /* krep = representative of current k-th supernode
     * fsupc =  first supernodal column
     * nsupc = number of columns in a supernode
     * nsupr = number of rows in a supernode
     */
    krep = segrep(k); k--;
    fsupc = glu.xsup(glu.supno(krep));
    nsupc = krep - fsupc + 1;
    nsupr = glu.xlsub(fsupc+1) - glu.xlsub(fsupc);
    nrow = nsupr - nsupc;
    lptr = glu.xlsub(fsupc);

    // loop over the panel columns to detect the actual number of columns and rows
    Index u_rows = 0;
    Index u_cols = 0;
    for (jj = jcol; jj < jcol + w; jj++)
    {
      nextl_col = (jj-jcol) * m;
      VectorBlock<IndexVector> repfnz_col(repfnz, nextl_col, m); // First nonzero column index for each row

      kfnz = repfnz_col(krep);
      if ( kfnz == emptyIdxLU )
        continue; // skip any zero segment

      segsize = krep - kfnz + 1;
      u_cols++;
      u_rows = (std::max)(segsize,u_rows);
    }

    if(nsupc >= 2)
    {
      Index ldu = internal::first_multiple<Index>(u_rows, PacketSize);
      Map<ScalarMatrix, Aligned,  OuterStride<> > U(tempv.data(), u_rows, u_cols, OuterStride<>(ldu));

      // gather U
      Index u_col = 0;
      for (jj = jcol; jj < jcol + w; jj++)
      {
        nextl_col = (jj-jcol) * m;
        VectorBlock<IndexVector> repfnz_col(repfnz, nextl_col, m); // First nonzero column index for each row
        VectorBlock<ScalarVector> dense_col(dense, nextl_col, m); // Scatter/gather entire matrix column from/to here

        kfnz = repfnz_col(krep);
        if ( kfnz == emptyIdxLU )
          continue; // skip any zero segment

        segsize = krep - kfnz + 1;
        luptr = glu.xlusup(fsupc);
        no_zeros = kfnz - fsupc;

        Index isub = lptr + no_zeros;
        Index off = u_rows-segsize;
        for (Index i = 0; i < off; i++) U(i,u_col) = 0;
        for (Index i = 0; i < segsize; i++)
        {
          Index irow = glu.lsub(isub);
          U(i+off,u_col) = dense_col(irow);
          ++isub;
        }
        u_col++;
      }
      // solve U = A^-1 U
      luptr = glu.xlusup(fsupc);
      Index lda = glu.xlusup(fsupc+1) - glu.xlusup(fsupc);
      no_zeros = (krep - u_rows + 1) - fsupc;
      luptr += lda * no_zeros + no_zeros;
      MappedMatrixBlock A(glu.lusup.data()+luptr, u_rows, u_rows, OuterStride<>(lda) );
      U = A.template triangularView<UnitLower>().solve(U);

      // update
      luptr += u_rows;
      MappedMatrixBlock B(glu.lusup.data()+luptr, nrow, u_rows, OuterStride<>(lda) );
      eigen_assert(tempv.size()>w*ldu + nrow*w + 1);

      Index ldl = internal::first_multiple<Index>(nrow, PacketSize);
      Index offset = (PacketSize-internal::first_default_aligned(B.data(), PacketSize)) % PacketSize;
      MappedMatrixBlock L(tempv.data()+w*ldu+offset, nrow, u_cols, OuterStride<>(ldl));

      L.setZero();
      internal::sparselu_gemm<Scalar>(L.rows(), L.cols(), B.cols(), B.data(), B.outerStride(), U.data(), U.outerStride(), L.data(), L.outerStride());

      // scatter U and L
      u_col = 0;
      for (jj = jcol; jj < jcol + w; jj++)
      {
        nextl_col = (jj-jcol) * m;
        VectorBlock<IndexVector> repfnz_col(repfnz, nextl_col, m); // First nonzero column index for each row
        VectorBlock<ScalarVector> dense_col(dense, nextl_col, m); // Scatter/gather entire matrix column from/to here

        kfnz = repfnz_col(krep);
        if ( kfnz == emptyIdxLU )
          continue; // skip any zero segment

        segsize = krep - kfnz + 1;
        no_zeros = kfnz - fsupc;
        Index isub = lptr + no_zeros;

        Index off = u_rows-segsize;
        for (Index i = 0; i < segsize; i++)
        {
          Index irow = glu.lsub(isub++);
          dense_col(irow) = U.coeff(i+off,u_col);
          U.coeffRef(i+off,u_col) = 0;
        }

        // Scatter l into SPA dense[]
        for (Index i = 0; i < nrow; i++)
        {
          Index irow = glu.lsub(isub++);
          dense_col(irow) -= L.coeff(i,u_col);
          L.coeffRef(i,u_col) = 0;
        }
        u_col++;
      }
    }
    else // level 2 only
    {
      // Sequence through each column in the panel
      for (jj = jcol; jj < jcol + w; jj++)
      {
        nextl_col = (jj-jcol) * m;
        VectorBlock<IndexVector> repfnz_col(repfnz, nextl_col, m); // First nonzero column index for each row
        VectorBlock<ScalarVector> dense_col(dense, nextl_col, m); // Scatter/gather entire matrix column from/to here

        kfnz = repfnz_col(krep);
        if ( kfnz == emptyIdxLU )
          continue; // skip any zero segment

        segsize = krep - kfnz + 1;
        luptr = glu.xlusup(fsupc);

        Index lda = glu.xlusup(fsupc+1)-glu.xlusup(fsupc);// nsupr

        // Perform a trianglar solve and block update,
        // then scatter the result of sup-col update to dense[]
        no_zeros = kfnz - fsupc;
              if(segsize==1)  LU_kernel_bmod<1>::run(segsize, dense_col, tempv, glu.lusup, luptr, lda, nrow, glu.lsub, lptr, no_zeros);
        else  if(segsize==2)  LU_kernel_bmod<2>::run(segsize, dense_col, tempv, glu.lusup, luptr, lda, nrow, glu.lsub, lptr, no_zeros);
        else  if(segsize==3)  LU_kernel_bmod<3>::run(segsize, dense_col, tempv, glu.lusup, luptr, lda, nrow, glu.lsub, lptr, no_zeros);
        else                  LU_kernel_bmod<Dynamic>::run(segsize, dense_col, tempv, glu.lusup, luptr, lda, nrow, glu.lsub, lptr, no_zeros);
      } // End for each column in the panel
    }

  } // End for each updating supernode
} // end panel bmod

template<typename Scalar , typename StorageIndex >

void Eigen::internal::SparseLUImpl< Scalar, StorageIndex >::panel_dfs	(	const Index	m,
		const Index	w,
		const Index	jcol,
		MatrixType &	A,
		IndexVector &	perm_r,
		Index &	nseg,
		ScalarVector &	dense,
		IndexVector &	panel_lsub,
		IndexVector &	segrep,
		IndexVector &	repfnz,
		IndexVector &	xprune,
		IndexVector &	marker,
		IndexVector &	parent,
		IndexVector &	xplore,
		GlobalLU_t &	glu
	)		`[protected]`

Performs a symbolic factorization on a panel of columns [jcol, jcol+w)

A supernode representative is the last column of a supernode. The nonzeros in U[*,j] are segments that end at supernodes representatives

The routine returns a list of the supernodal representatives in topological order of the dfs that generates them. This list is a superset of the topological order of each individual column within the panel. The location of the first nonzero in each supernodal segment (supernodal entry location) is also returned. Each column has a separate list for this purpose.

Two markers arrays are used for dfs : marker[i] == jj, if i was visited during dfs of current column jj; marker1[i] >= jcol, if i was visited by earlier columns in this panel;

Parameters:

[in]	m	number of rows in the matrix
[in]	w	Panel size
[in]	jcol	Starting column of the panel
[in]	A	Input matrix in column-major storage
[in]	perm_r	Row permutation
[out]	nseg	Number of U segments
[out]	dense	Accumulate the column vectors of the panel
[out]	panel_lsub	Subscripts of the row in the panel
[out]	segrep	Segment representative i.e first nonzero row of each segment
[out]	repfnz	First nonzero location in each row
[out]	xprune	The pruned elimination tree
[out]	marker	work vector
	parent	The elimination tree
	xplore	work vector
	glu	The global data structure

Definition at line 219 of file SparseLU_panel_dfs.h.

{
  Index nextl_col; // Next available position in panel_lsub[*,jj]

  // Initialize pointers
  VectorBlock<IndexVector> marker1(marker, m, m);
  nseg = 0;

  panel_dfs_traits<IndexVector> traits(jcol, marker1.data());

  // For each column in the panel
  for (StorageIndex jj = StorageIndex(jcol); jj < jcol + w; jj++)
  {
    nextl_col = (jj - jcol) * m;

    VectorBlock<IndexVector> repfnz_col(repfnz, nextl_col, m); // First nonzero location in each row
    VectorBlock<ScalarVector> dense_col(dense,nextl_col, m); // Accumulate a column vector here


    // For each nnz in A[*, jj] do depth first search
    for (typename MatrixType::InnerIterator it(A, jj); it; ++it)
    {
      Index krow = it.row();
      dense_col(krow) = it.value();

      StorageIndex kmark = marker(krow);
      if (kmark == jj)
        continue; // krow visited before, go to the next nonzero

      dfs_kernel(jj, perm_r, nseg, panel_lsub, segrep, repfnz_col, xprune, marker, parent,
                   xplore, glu, nextl_col, krow, traits);
    }// end for nonzeros in column jj

  } // end for column jj
}

template<typename Scalar , typename StorageIndex >

Index Eigen::internal::SparseLUImpl< Scalar, StorageIndex >::pivotL	(	const Index	jcol,
		const RealScalar &	diagpivotthresh,
		IndexVector &	perm_r,
		IndexVector &	iperm_c,
		Index &	pivrow,
		GlobalLU_t &	glu
	)		`[protected]`

Performs the numerical pivotin on the current column of L, and the CDIV operation.

Pivot policy : (1) Compute thresh = u * max_(i>=j) abs(A_ij); (2) IF user specifies pivot row k and abs(A_kj) >= thresh THEN pivot row = k; ELSE IF abs(A_jj) >= thresh THEN pivot row = j; ELSE pivot row = m;

Note: If you absolutely want to use a given pivot order, then set u=0.0.

Parameters:

	jcol	The current column of L
	diagpivotthresh	diagonal pivoting threshold
[in,out]	perm_r	Row permutation (threshold pivoting)
[in]	iperm_c	column permutation - used to finf diagonal of PcAPc'
[out]	pivrow	The pivot row
	glu	Global LU data

Returns:: 0 if success, i > 0 if U(i,i) is exactly zero

Definition at line 60 of file SparseLU_pivotL.h.

{

  Index fsupc = (glu.xsup)((glu.supno)(jcol)); // First column in the supernode containing the column jcol
  Index nsupc = jcol - fsupc; // Number of columns in the supernode portion, excluding jcol; nsupc >=0
  Index lptr = glu.xlsub(fsupc); // pointer to the starting location of the row subscripts for this supernode portion
  Index nsupr = glu.xlsub(fsupc+1) - lptr; // Number of rows in the supernode
  Index lda = glu.xlusup(fsupc+1) - glu.xlusup(fsupc); // leading dimension
  Scalar* lu_sup_ptr = &(glu.lusup.data()[glu.xlusup(fsupc)]); // Start of the current supernode
  Scalar* lu_col_ptr = &(glu.lusup.data()[glu.xlusup(jcol)]); // Start of jcol in the supernode
  StorageIndex* lsub_ptr = &(glu.lsub.data()[lptr]); // Start of row indices of the supernode

  // Determine the largest abs numerical value for partial pivoting
  Index diagind = iperm_c(jcol); // diagonal index
  RealScalar pivmax(-1.0);
  Index pivptr = nsupc;
  Index diag = emptyIdxLU;
  RealScalar rtemp;
  Index isub, icol, itemp, k;
  for (isub = nsupc; isub < nsupr; ++isub) {
    using std::abs;
    rtemp = abs(lu_col_ptr[isub]);
    if (rtemp > pivmax) {
      pivmax = rtemp;
      pivptr = isub;
    }
    if (lsub_ptr[isub] == diagind) diag = isub;
  }

  // Test for singularity
  if ( pivmax <= RealScalar(0.0) ) {
    // if pivmax == -1, the column is structurally empty, otherwise it is only numerically zero
    pivrow = pivmax < RealScalar(0.0) ? diagind : lsub_ptr[pivptr];
    perm_r(pivrow) = StorageIndex(jcol);
    return (jcol+1);
  }

  RealScalar thresh = diagpivotthresh * pivmax;

  // Choose appropriate pivotal element

  {
    // Test if the diagonal element can be used as a pivot (given the threshold value)
    if (diag >= 0 )
    {
      // Diagonal element exists
      using std::abs;
      rtemp = abs(lu_col_ptr[diag]);
      if (rtemp != RealScalar(0.0) && rtemp >= thresh) pivptr = diag;
    }
    pivrow = lsub_ptr[pivptr];
  }

  // Record pivot row
  perm_r(pivrow) = StorageIndex(jcol);
  // Interchange row subscripts
  if (pivptr != nsupc )
  {
    std::swap( lsub_ptr[pivptr], lsub_ptr[nsupc] );
    // Interchange numerical values as well, for the two rows in the whole snode
    // such that L is indexed the same way as A
    for (icol = 0; icol <= nsupc; icol++)
    {
      itemp = pivptr + icol * lda;
      std::swap(lu_sup_ptr[itemp], lu_sup_ptr[nsupc + icol * lda]);
    }
  }
  // cdiv operations
  Scalar temp = Scalar(1.0) / lu_col_ptr[nsupc];
  for (k = nsupc+1; k < nsupr; k++)
    lu_col_ptr[k] *= temp;
  return 0;
}

template<typename Scalar , typename StorageIndex >

void Eigen::internal::SparseLUImpl< Scalar, StorageIndex >::pruneL	(	const Index	jcol,
		const IndexVector &	perm_r,
		const Index	pivrow,
		const Index	nseg,
		const IndexVector &	segrep,
		BlockIndexVector	repfnz,
		IndexVector &	xprune,
		GlobalLU_t &	glu
	)		`[protected]`

Prunes the L-structure.

It prunes the L-structure of supernodes whose L-structure contains the current pivot row "pivrow"

Parameters:

	jcol	The current column of L
[in]	perm_r	Row permutation
[out]	pivrow	The pivot row
	nseg	Number of segments
	segrep
	repfnz
[out]	xprune
	glu	Global LU data

Definition at line 53 of file SparseLU_pruneL.h.

{
  // For each supernode-rep irep in U(*,j]
  Index jsupno = glu.supno(jcol);
  Index i,irep,irep1;
  bool movnum, do_prune = false;
  Index kmin = 0, kmax = 0, minloc, maxloc,krow;
  for (i = 0; i < nseg; i++)
  {
    irep = segrep(i);
    irep1 = irep + 1;
    do_prune = false;

    // Don't prune with a zero U-segment
    if (repfnz(irep) == emptyIdxLU) continue;

    // If a snode overlaps with the next panel, then the U-segment
    // is fragmented into two parts -- irep and irep1. We should let
    // pruning occur at the rep-column in irep1s snode.
    if (glu.supno(irep) == glu.supno(irep1) ) continue; // don't prune

    // If it has not been pruned & it has a nonz in row L(pivrow,i)
    if (glu.supno(irep) != jsupno )
    {
      if ( xprune (irep) >= glu.xlsub(irep1) )
      {
        kmin = glu.xlsub(irep);
        kmax = glu.xlsub(irep1) - 1;
        for (krow = kmin; krow <= kmax; krow++)
        {
          if (glu.lsub(krow) == pivrow)
          {
            do_prune = true;
            break;
          }
        }
      }

      if (do_prune)
      {
        // do a quicksort-type partition
        // movnum=true means that the num values have to be exchanged
        movnum = false;
        if (irep == glu.xsup(glu.supno(irep)) ) // Snode of size 1
          movnum = true;

        while (kmin <= kmax)
        {
          if (perm_r(glu.lsub(kmax)) == emptyIdxLU)
            kmax--;
          else if ( perm_r(glu.lsub(kmin)) != emptyIdxLU)
            kmin++;
          else
          {
            // kmin below pivrow (not yet pivoted), and kmax
            // above pivrow: interchange the two suscripts
            std::swap(glu.lsub(kmin), glu.lsub(kmax));

            // If the supernode has only one column, then we
            // only keep one set of subscripts. For any subscript
            // intercnahge performed, similar interchange must be
            // done on the numerical values.
            if (movnum)
            {
              minloc = glu.xlusup(irep) + ( kmin - glu.xlsub(irep) );
              maxloc = glu.xlusup(irep) + ( kmax - glu.xlsub(irep) );
              std::swap(glu.lusup(minloc), glu.lusup(maxloc));
            }
            kmin++;
            kmax--;
          }
        } // end while

        xprune(irep) = StorageIndex(kmin);  //Pruning
      } // end if do_prune
    } // end pruning
  } // End for each U-segment
}

template<typename Scalar , typename StorageIndex >

void Eigen::internal::SparseLUImpl< Scalar, StorageIndex >::relax_snode	(	const Index	n,
		IndexVector &	et,
		const Index	relax_columns,
		IndexVector &	descendants,
		IndexVector &	relax_end
	)		`[protected]`

Identify the initial relaxed supernodes.

This routine is applied to a column elimination tree. It assumes that the matrix has been reordered according to the postorder of the etree

Parameters:

n	the number of columns
et	elimination tree
relax_columns	Maximum number of columns allowed in a relaxed snode
descendants	Number of descendants of each node in the etree
relax_end	last column in a supernode

Definition at line 47 of file SparseLU_relax_snode.h.

{

  // compute the number of descendants of each node in the etree
  Index parent;
  relax_end.setConstant(emptyIdxLU);
  descendants.setZero();
  for (Index j = 0; j < n; j++)
  {
    parent = et(j);
    if (parent != n) // not the dummy root
      descendants(parent) += descendants(j) + 1;
  }
  // Identify the relaxed supernodes by postorder traversal of the etree
  Index snode_start; // beginning of a snode
  for (Index j = 0; j < n; )
  {
    parent = et(j);
    snode_start = j;
    while ( parent != n && descendants(parent) < relax_columns )
    {
      j = parent;
      parent = et(j);
    }
    // Found a supernode in postordered etree, j is the last column
    relax_end(snode_start) = StorageIndex(j); // Record last column
    j++;
    // Search for a new leaf
    while (descendants(j) != 0 && j < n) j++;
  } // End postorder traversal of the etree

}

template<typename Scalar, typename StorageIndex>

Index Eigen::internal::SparseLUImpl< Scalar, StorageIndex >::snode_bmod	(	const Index	jcol,
		const Index	fsupc,
		ScalarVector &	dense,
		GlobalLU_t &	glu
	)		`[protected]`

template<typename Scalar, typename StorageIndex>

Index Eigen::internal::SparseLUImpl< Scalar, StorageIndex >::snode_dfs	(	const Index	jcol,
		const Index	kcol,
		const MatrixType &	mat,
		IndexVector &	xprune,
		IndexVector &	marker,
		GlobalLU_t &	glu
	)		`[protected]`

Friends And Related Function Documentation

template<typename Scalar, typename StorageIndex>

friend struct column_dfs_traits [friend]

Definition at line 60 of file SparseLUImpl.h.

The documentation for this class was generated from the following files:

Public Types

Protected Member Functions

Friends

Detailed Description

template<typename Scalar, typename StorageIndex> class Eigen::internal::SparseLUImpl< Scalar, StorageIndex >

Member Typedef Documentation

Member Function Documentation

Friends And Related Function Documentation

template<typename Scalar, typename StorageIndex>
class Eigen::internal::SparseLUImpl< Scalar, StorageIndex >
